4.2 Selecting th
e mounting
location

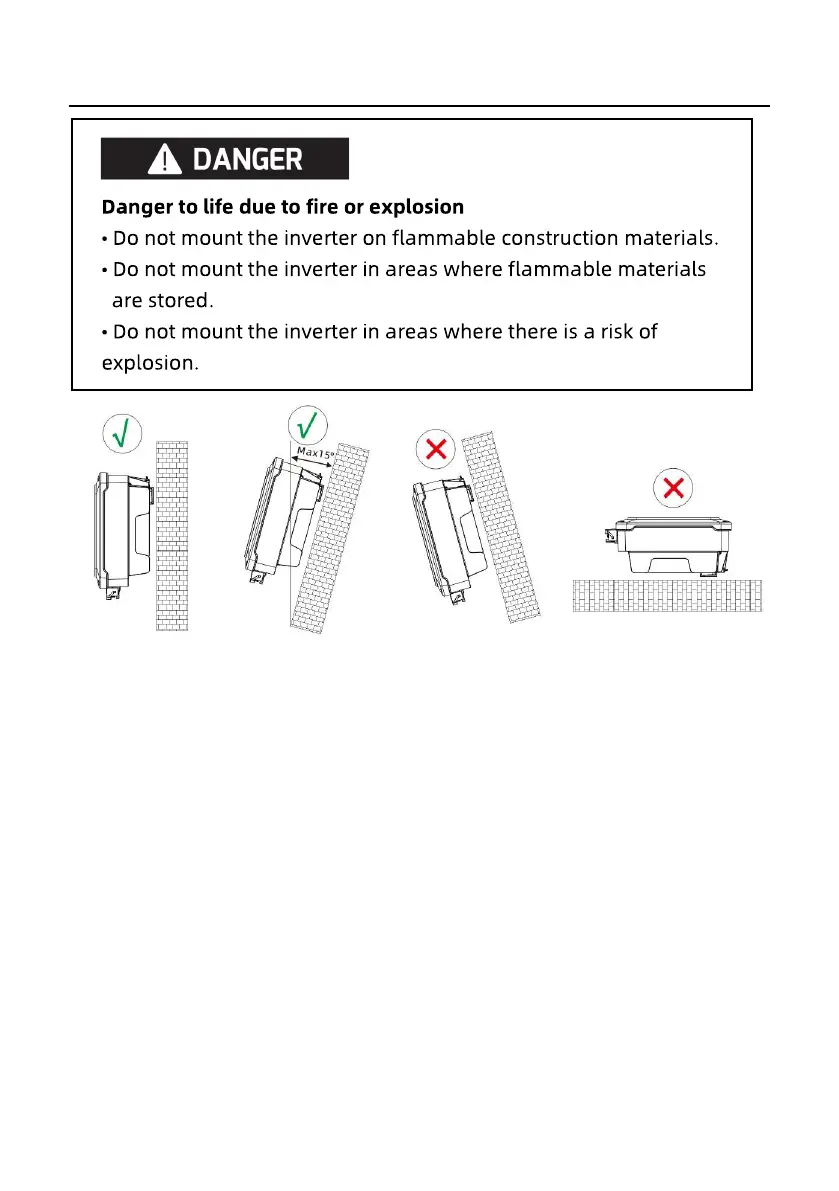

1.
Mount the inverter vertically or tilted backward by a maximum of
15°.
2.
Never mount the inverter tilted forward or sideways.
3.
Never mount the inverter horizontally.
4.
Mount the inverter at
eye level to make it easy to operate and to read the
display.
5.
The
electrical connection area must point downwards.
17
19
