HTDF366 – Affluent Series Range Installation
www.hypotheory.com
Propane LP Chart
Code Specification Related Burner
HT.02.07.00013 Ø0.91 #1 Triple Ring Burner 1
HT.02.07.00014 Ø0.75 #2 Rapid Burner 1
HT.02.07.00015 Ø0.6 #3 Semi-rapid Burner 3
HT.02.07.00016 Ø0.48 #4 Auxiliary/Simmer Burner 1
HT.03.13.00009 Ø0.8 Burner inside the Oven 1
Natural Gas NG Chart
Code Specification Related Burner
HT.02.07.00018 Ø1.35 #1 Triple Ring Burner 1
HT.02.07.00019 Ø1.2 #2 Rapid Burner 1
HT.02.07.00020 Ø0.97 #3 Semi-rapid Burner 3
HT.02.07.00021 Ø0.8 #4 Auxiliary 1
HT.03.13.00008 Ø1.32 Burner inside the Oven 1
Total QTY for
Each Oven
Total QTY for
Each Oven
Do not over tighten , just tighten by hand then use a socket wrench for one half turn
clockwise. Each nozzle is labeled with the specification number noted below to help

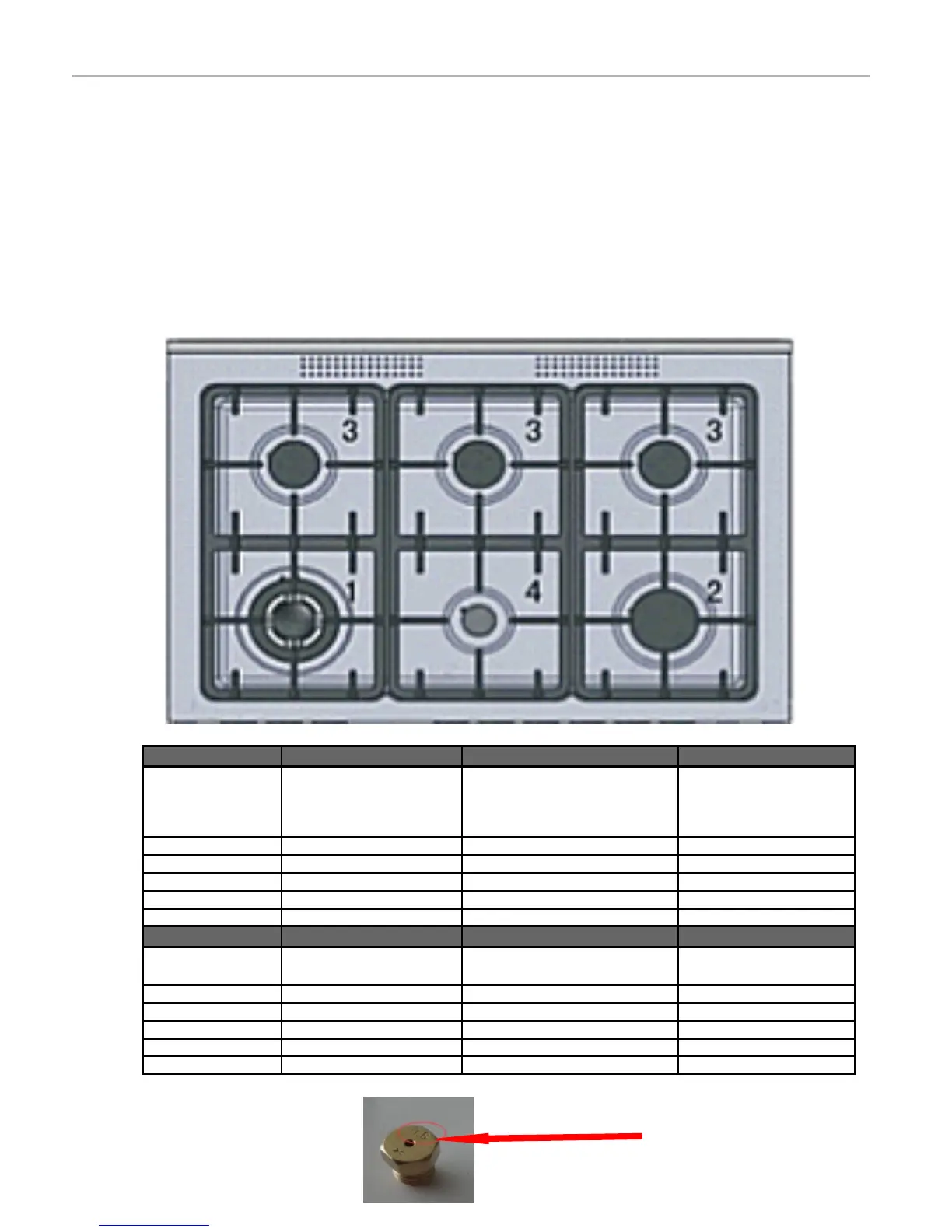

identify them. Like in the sample photo below. Reference below photo for nozzle position,
each burner type is numbered on the chart and in the diagram. Example- burner labeled 1
is also labeled #1 Triple Ring Burner in the nozzle reference sheet.
