HTDF366 – Affluent Series Range Installation
www.hypotheory.com

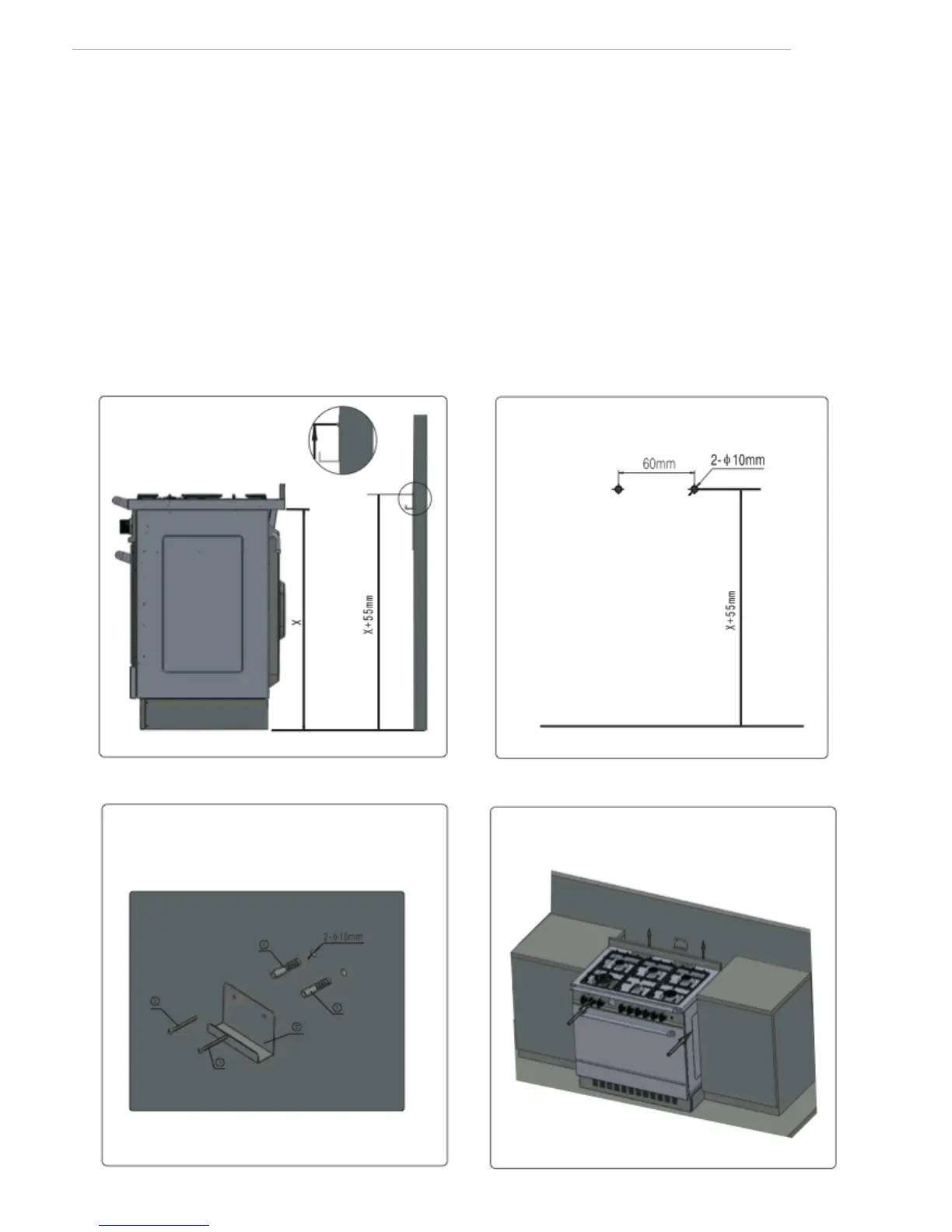

Installation of the Anti-Tip Device: This device will protect the range
from tipping forward, the anti-tip bracket must be installed. To ensure
the anti-tip bolt engages the bracket, refer to the illustration below to
determine proper placement. The size of the drill bit used is entirely
based on the application the device is being installed on
(Drywall,concrete,wood), you must consult with your range installer to
determine the proper drill bit sizes needed to drill holes with.
Step 2: Drill two 10 mm holes in the
wall, the two holes must be 60 mm
apart.
Step 3: Insert anchors into the holes, and
screw the anti-tip device in with M4x500
mm screws.(accessories included)
Step 1: The anti-tip device is
55 mm plus the height of
the bottom side of the oven
top with leg adjustments.
Step 4: Slide the range onto the anti-tip
device carefully: with assistance.
