HTDF366 – Affluent Series Range Installation
www.hypotheory.com
The handle bar is already assembled
to the range, the instructions below
only apply to replacing the handle
bar.
Handle Bar Installation:
1.Insert the washer between the
handle and the handle latch, turn bar
by hand to tighten in place.
2.Screw in the latch screws behind
the range door wall.

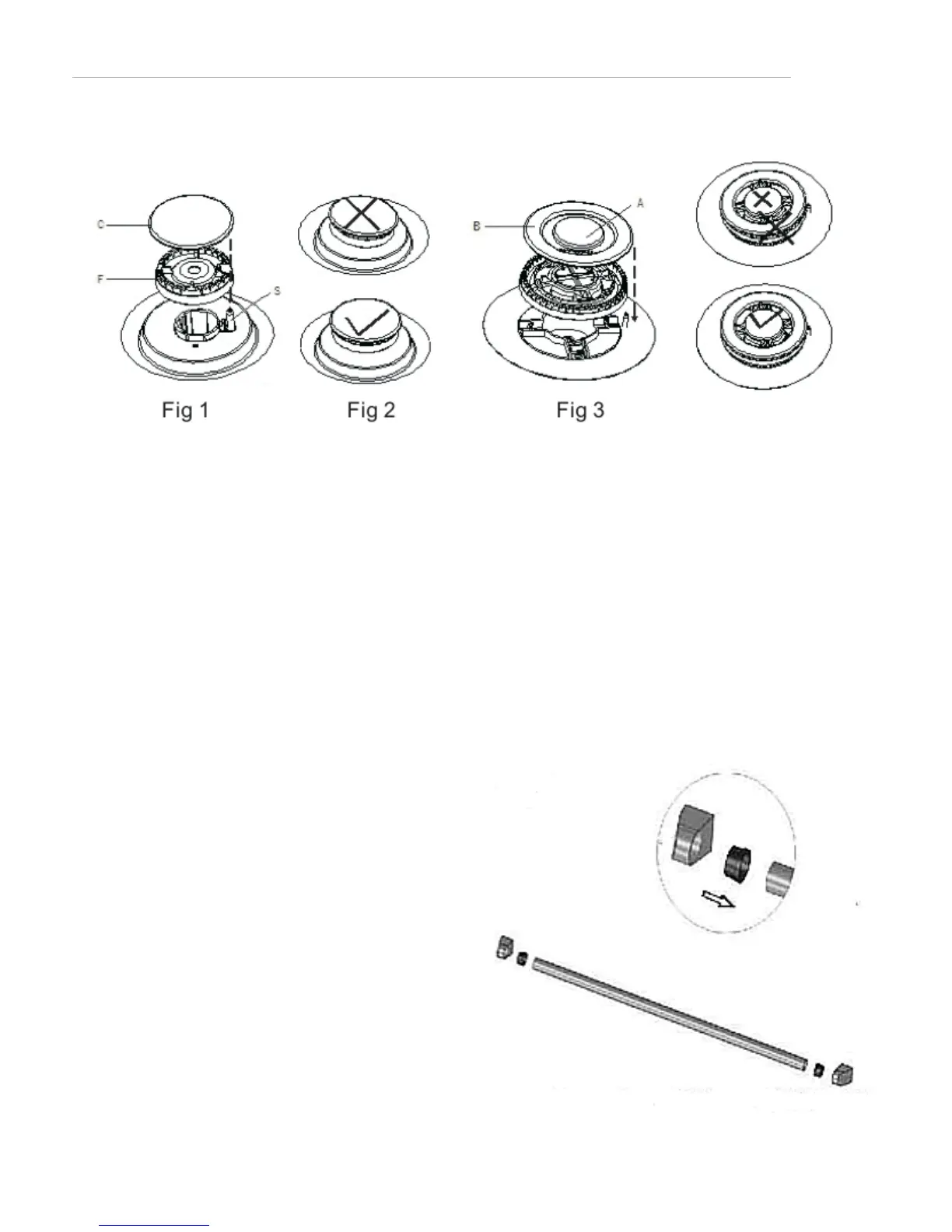

Burner Assembly: The gas burner accessories are disassembled in the box.
The above diagram explains the right way- with a check mark, and the wrong
way with an “X” mark to install the parts. The best way to measure the burners
cups (ex.labeled F), is to align them next to each burner, the proper cup size
that fits will drop into the burner with ease by hand. Ensure all of the burners
lids (ex. Labeled C,A or B) are in their correct position. The cup nor the lid
should be removed or installed while the oven is on or in operation! Regularly
check the ignition pin labeled S, and do not trigger the ignition to light until the
burner lids and cups are correctly assembled to avoid damaging the unit.
