HTDF366 – Affluent Series Range Installation
www.hypotheory.com
Installation of the Backsplash/Console/Back guard: This device
will protect the range from spills. It also offers an aesthetic value to the
range. It is an optional accessory. The size of the drill bit used is
entirely based on the application the device is being installed on
(Drywall,concrete,wood), you must consult with your range installer to
determine the proper drill bit sizes needed to drill holes with.
FYI: This is not the actual
image of the range,
The range does not have a
handle above the knobs,
only five burners nor a knob
configuration displayed,etc.

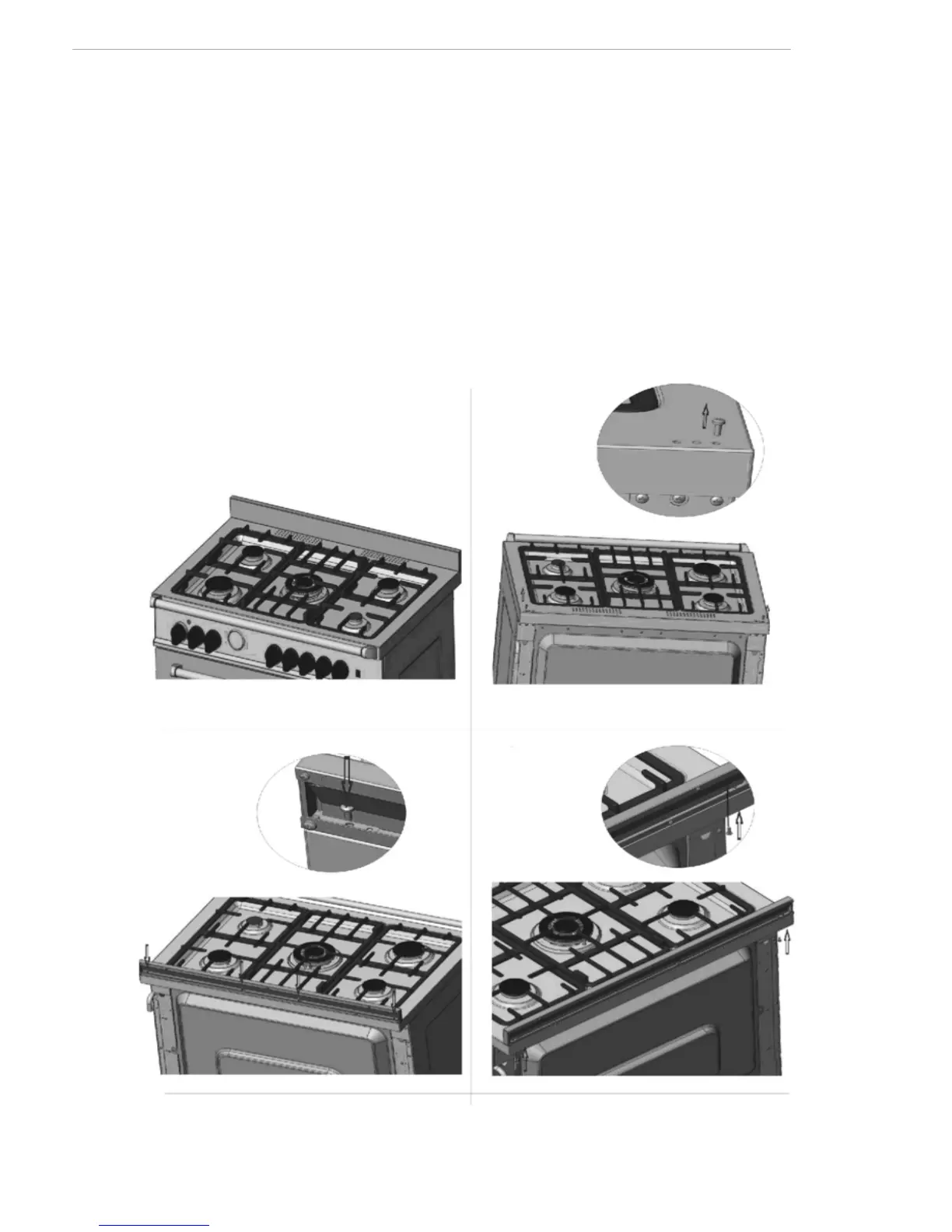

Step 1: Align screws into the backsplash &
screw holes, then tighten.(accessories
included)
FYI: The
screw holes
are located
on the rear
corner of
each side of
the range.
Step 2: Align screws under the backsplash
& screw holes, then tighten.(accessories
included)
