HTDF366 – Affluent Series Range Installation
www.hypotheory.com
Installation of the Range Legs & Optional Leg Shield: The four
legs must be installed to the range.The legs themselves will give the
range an estimated height of 880mm, they are adjustable and can
alter the range height approximately an inch lower or higher than
measurement indicated. The leg shield is an optional accessory and
can be used to hide the legs, if the owner did not wish to expose the
oven legs. The leg shield covers the front, left & right side of the oven.
(All accessories included).

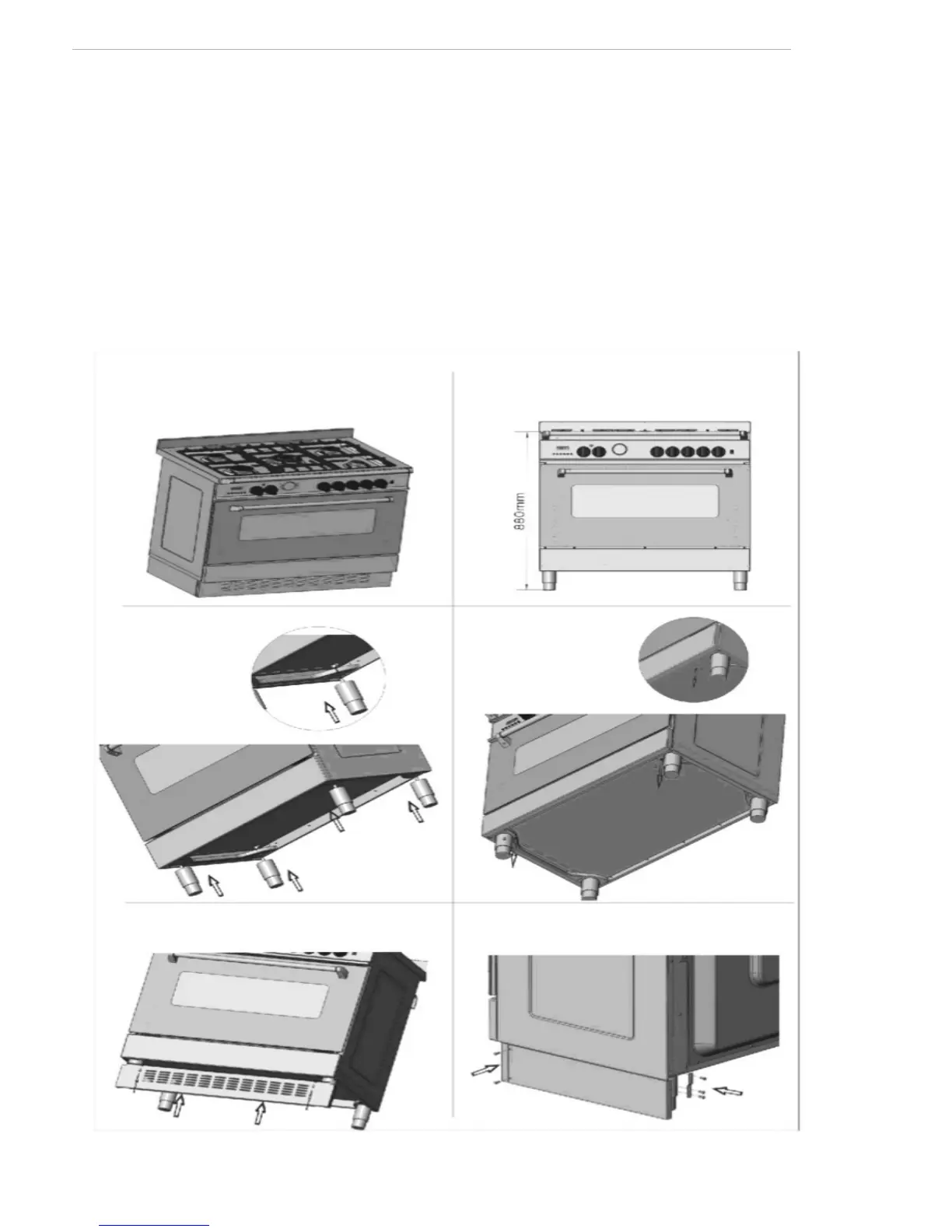

FYI: This is how the oven will look if the
above mentioned accessories are installed.
This is not the actual image of the range.The
oven legs must be installed, however the leg
shield is optional.
Step 1: Tilt the oven- with the
help of at least two adults total,
try to lay the oven on it's side with
a thick blanket, do not set oven
on its back nor front.
Step 2: Insert the threaded
leg bolt welded to
each oven leg inside
the leg hole slots,
screw in the washer
via the inner slot by hand.
Step 3: Tilt the oven
upright - ensure the
oven is level. Rotate
the legs to adjust height.
Step 4: Insert the front of the leg shield. Step 5: Overlap the front leg shield with the
side leg shields & screw in.
