- 11 -

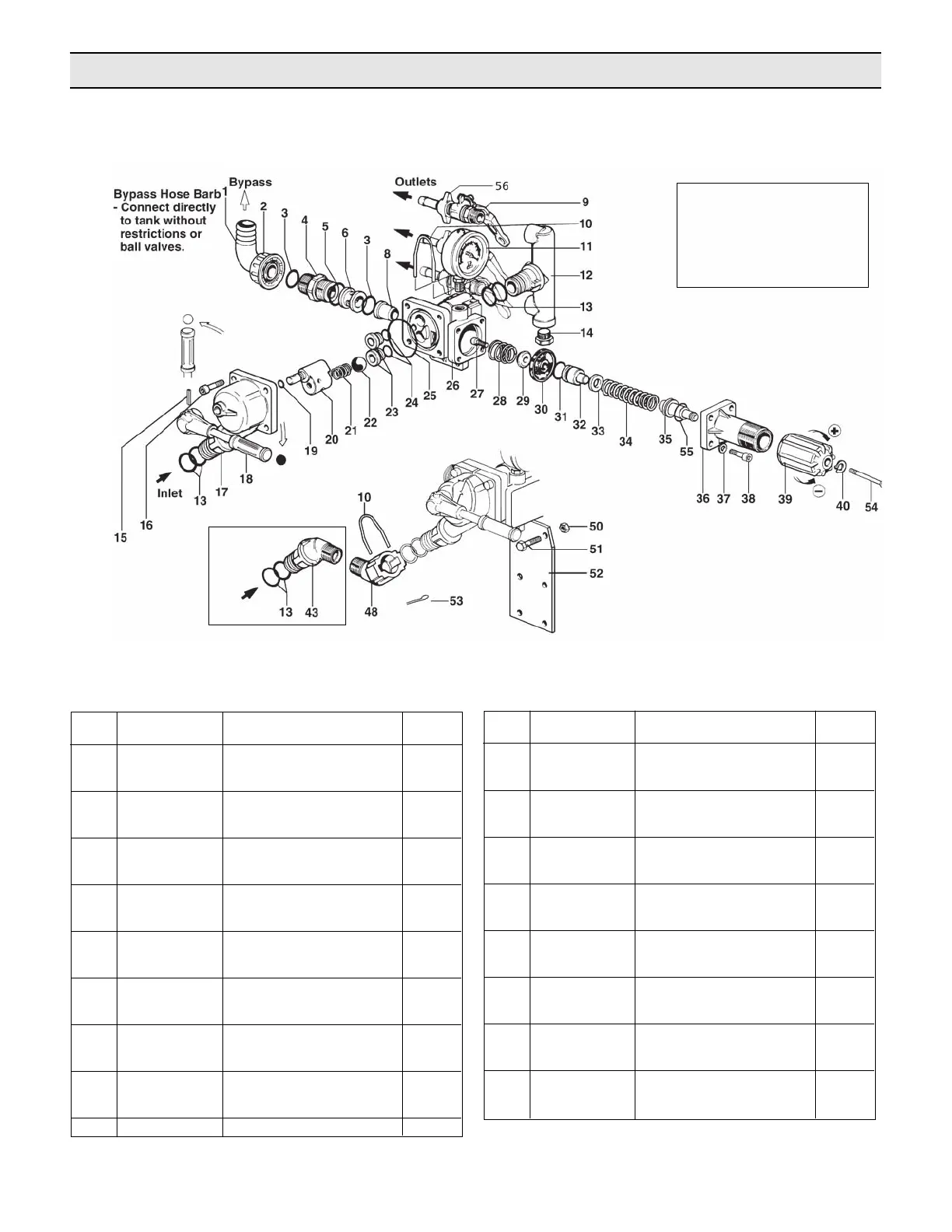

Parts List for Control Unit 9910-VDR50
NOTE: When ordering parts, give
QUANTITY, PART NUMBER,
DESCRIPTION, and COMPLETE
MODEL NUMBER. Reference
numbers are used ONLY to identify
parts in the drawing and are NOT
to be used as order numbers.
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
1 9910-550370 Hose Barb 1
2 9910-550242 Nut 1
3 9910-550350 O-ring 2
4 9910-1040780 Port Adapter 1
5 9910-550040 O-ring 1
6 9910-1040670 Spacer 1
8 9910-1040660 Valve Seat 1
9 9910-130491 Ball Valve w/o hose barb assy. 2
10 9910-1040690 Retainer Clip 2
11 9910-550545 Gauge 1
12 9910-1040680 Outlet Manifold 1
13 9910-390180 O-ring 8
14 9910-130171 Plug 2
15 9910-1040820 Pin 1
16 9910-180030 M8x20 Bolt 4
17 9910-1040720 Selector Housing 1
18 9910-1040730 Pressure Release Lever 1
19 9910-1080200 O-ring 1
20 9910-1040700 Selector Body 1
21 9910-850680 Spring 1
22 9910-850660 Ball 1
23 9910-850650 Seat 2
24 9910-740290 O-ring 2
25 9910-1040710 O-ring 1
26 9910-1040600 Main Body 1
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
27 9910-680560 M6x16 Bolt 1
28 9910-1040650 Spring 1
29 9910-1040640 Valve Cap 1
30 9910-1040630 Diaphragm 1
31 9910-880830 O-ring 1
32 9910-1040620 Piston 1
33 9910-850440 Spacer 1
34 9910-1040830 Spring 1
35 9910-394770 Spring Guide 1
36 9910-1040610 Spring Guide Body 1
37 9910-550331 Washer 4
38 9910-780330 M6x20 Bolt 4
39 9910-394790 Knob 1
40 9910-480550 Snap Ring 4
43 9910-1040761 3/4" (M) NPT Male Adapter 1
48 9910-1040771 3/4" (M) NPT Female Adapter 1
49 9910-550210 1" Straight Hose Barb 1
50 9910-390270 Nut 2
51 9910-180370 M8x25 Bolt 2
52 9910-850690 Mounting Bracket 1
53 9910-1040950 Cotter Pin 2
54 9910-1150650 M3x60 Bolt 1
55 9910-770130 O-ring 1
56 9910-110130 Hose barb assembly 1/2" 2
In With
Pump
Form L-1383 (12/11, Rev. B)
