Hypro 9910-D813 - Page 13

60 9910-620610 M8x30 Bolt 6
61 9910-1040760 Outlet adapter (3/4" BSP) 1
61 9910-1040761 Outlet adapter (3/4Ó NPT) 1
62 9910-110131 Hose barb 2
63 9910-1400110 Flange 1
64 9910-540361 O-ring 6
65 9910-1040950 Cotter pin 1
66 N/A Oil breather cap 1
67 9910-1040850 Washer 1
68 9910-650560 Dampener o-ring 1
69 9910-1400120 O-ring 1
70 9910-1343510 M6x14 Bolt 3
71 9910-881710 Washer 3
72 9910-130492 Outlet ball valve w/ barb 1
73 9910-1800240 Plug 2
74 9910-1460490 Snap ring 1
75 9910-1800210 Flange 1
76 9910-180030 M8x20 Bolt 8
77 9910-1800311 Plate 1
- 13 -

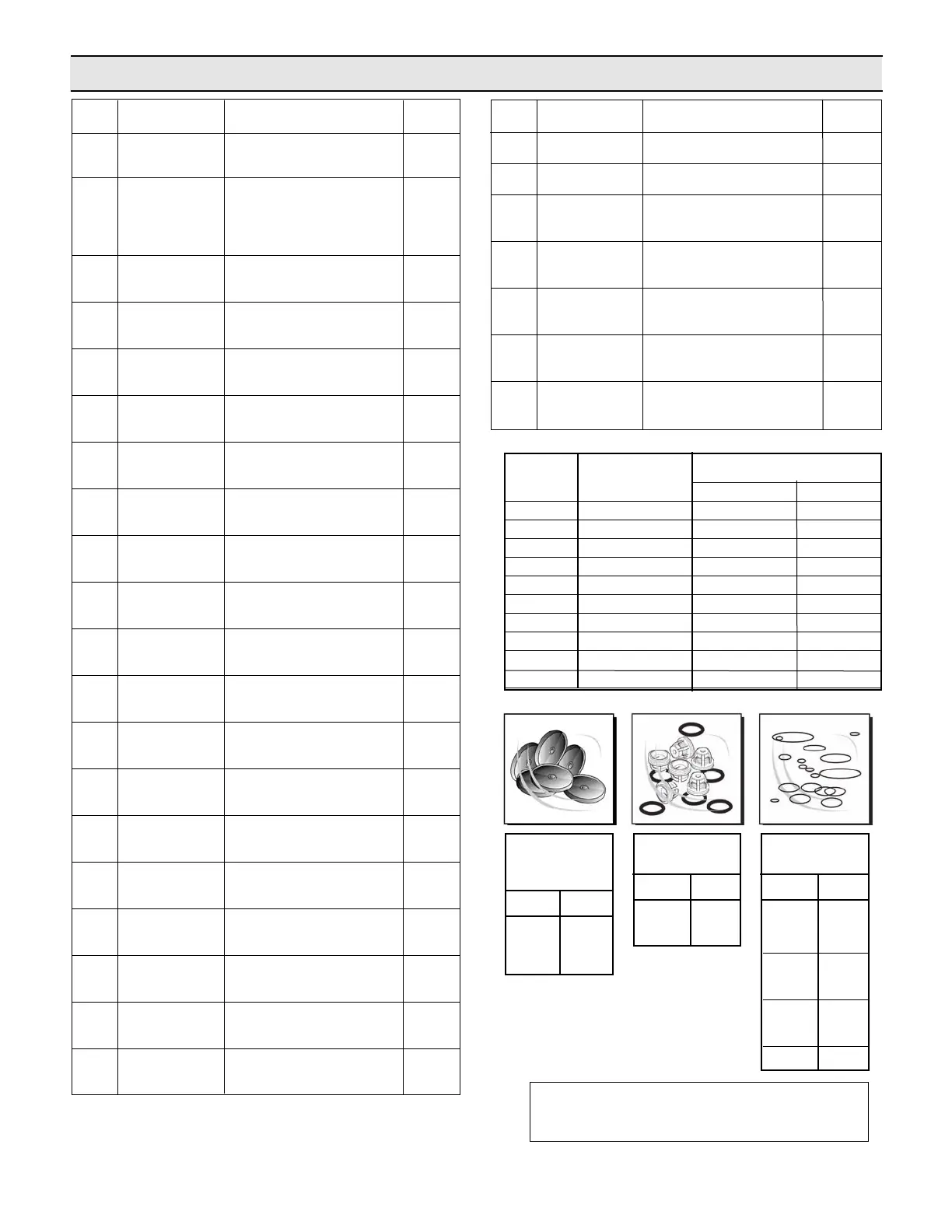

Parts List for Model 9910-D813
Ref. No. Qty.
20 3
30 1
36 1
39 2
41 6
46 1
47 3
53 6
64 6
69 1
9910-KIT2376
O-Ring Kit
Ref. No. Qty.
33
32 1
41 6
9910-KIT2479
Diaphragm Kit
Desmopan
NOTE: When ordering parts, give QUANTITY, PART NUMBER,
DESCRIPTION, and COMPLETE PUMP MODEL NUMBER.
Reference numbers are used ONLY to identify parts in the drawing
and are NOT to be used as order numbers.
Ref. No. Description Tightening Torque
In. Lbs. Nm
1 Bolt 262.5 29.4
22 Bolt 435.5 49.0
24 Bolt 320.8 36.1
26 Bolt 171.4 19.6
49 Bolt 87.5 9.8
50 Bolt 87.5 9.8
58 Bolt 87.5 9.8
60 Bolt 435.5 49.0
73 Plug 87.5 9.8
76 Bolt 87.5 9.8
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
Ref. No. Qty.
29 6
53 6
9910-KIT1963
Valve Kit
1 9910-580360 Retaining bolt 3
2 9910-1040180 Retaining bolt washer 3
3 9910-1040080 Diaphragm, Desmopan (Std.) 3
3A 9910-1040081 Diaphragm, Buna-N (Opt.) 3
3B 9910-104008T Diaphragm, Buna-N with 3
Teflon Coating (Opt.)
4 9910-1500080 Piston sleeve 3
5 9910-650190 Piston ring 3
6 9910-1040120 Piston 3
7 9910-1040070 Connecting pin 3
8 9910-1040270 Snap ring 6
9 9910-1800050 Connecting rod 3
10 9910-1400150 Shaft seal 1
11 9910-650200 Roller bearing 1
12 9910-1800200 Crankshaft 1
13 9910-161050 Retainer ring 1
14 9910-161060 Bearing 1
15 9910-1040551 Head (DX) 2
16 9910-1800060 Oil cap 1
17 9910-680031 Oil reservoir 1
18 9910-680350 M8x35 Bolt 2
19 9910-380241 Washer 2
20 9910-390180 O-ring 3
21 9910-1040552 Head (SX) 1
22 9910-1480040 M12x60 Bolt 8
23 9910-1800440 Left base 1
24 9910-750060 M12x65 Bolt 4
25 9910-1040470 Plug 2
26 9910-320360 M8x22 Bolt 2
27 9910-1040260 Plug (oil drain) 1
28 9910-1800290 Pulsation damper flange 1
29 9910-1409050 Valve assembly 6
30 9910-540360 O-ring 1
31 9910-1800280 Pulsation damper body 1
32 9910-1800300 Diaphragm 1
33 9910-1800270 Pulsation damper cap 1
34 9910-650542 O-ring 1
35 9910-1800350 Air Valve 1
36 9910-640070 O-ring 1
37 9910-1040340 Retaining ring 2
38 9910-1800140 Pump Body 1
39 9910-250310 O-ring 2
40 9910-540530 Threaded adapter 1
41 9910-770571 O-ring 6
42 9910-540540 Hose barb nut 1
43 9910-540550 Hose barb 1-1/2" 1
44 9910-1040570 Retainer ring 1
45 9910-1040050 Oil seal 1
46 9910-1800161 O-ring 1
47 9910-1040060 O-ring 3
48 9910-1800150 Manifold 1
49 9910-1040370 M6x22 Bolt 12
50 9910-780060 M6x25 Bolt 6
51 9910-130491 Outlet ball valve w/o barb 1
52 9910-1040690 Retainer clip 1
53 9910-620030 O-ring 6
54 9910-KIT1536 Pulsation damper assy 1
55 9910-1800430 Right base 1
56 9910-1400140 Flange 1
57 9910-1500350 Shield 1
58 9910-820670 M10x16 Bolt 4
59 9910-1300190 Valve retainer 3
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
Form L-1383 (12/11, Rev. B)
