- 17 -

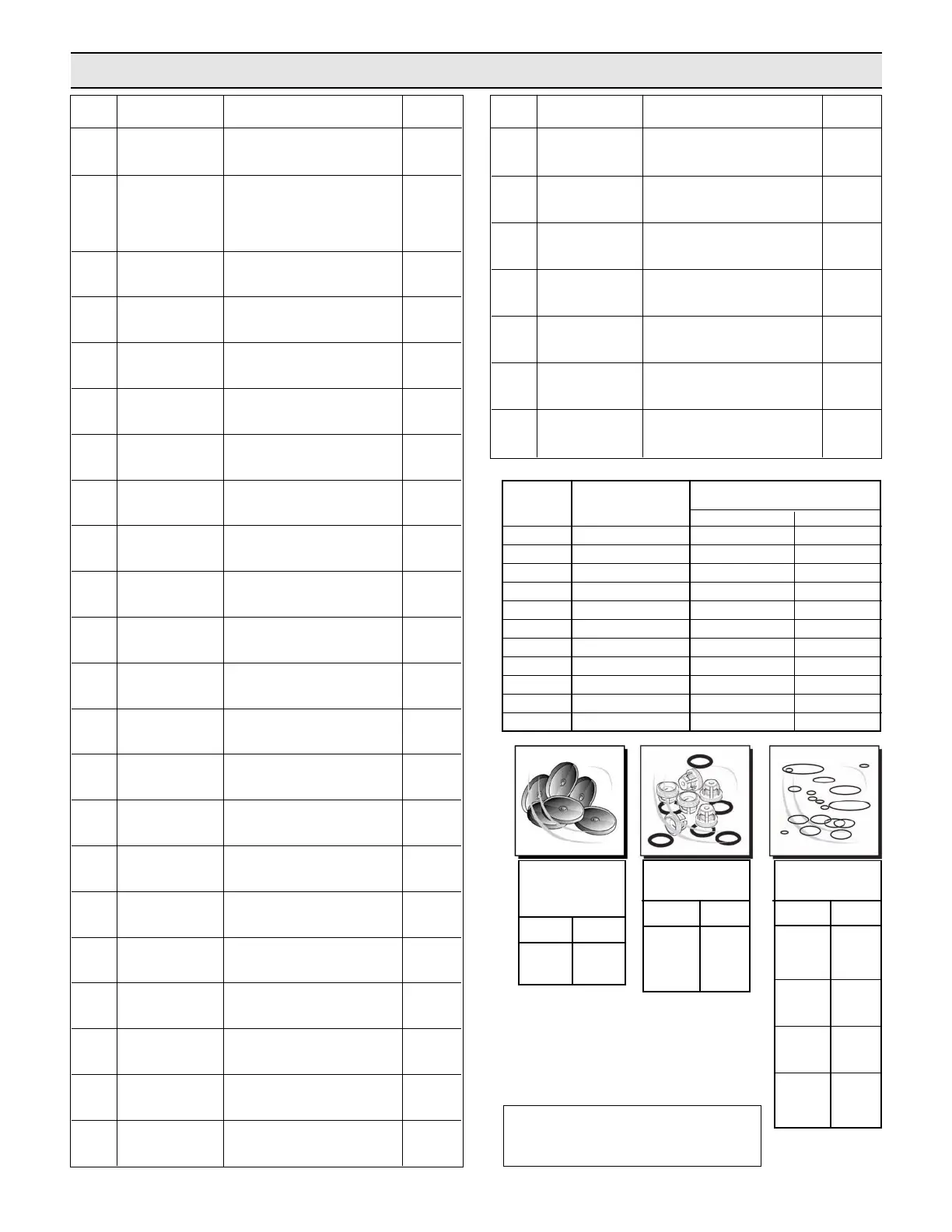

Parts List for Model 9910-D1265
65 9910-680350 M8x35 Bolt 2
66 9910-680031 Oil reservoir 1
67 9910-1800060 Black cap 1
68 9910-680040 Oil breather cap 1
69 9910-540530 Threaded adapter 1
70 9910-250310 O-ring 2
71 9910-540540 Hose barb nut 1
72 9910-540550 Hose barb 1-1/2" 1
73 9910-1500320 Spacer 2
74 9910-1500170 Bearing 2
75 9910-881710 Washer 3
76 9910-851360 O-ring 1
77 9910-1400290 O-ring 1
78 9910-390210 O-ring 1
79 9910-130492 Outlet ball valve w/barb 1
80 9910-650560 Dampener o-ring 1
81 9910-1500100 Spacer 1
82 9910-1500150 Spacer 2
83 9910-1400011 Pump body 1
84 9910-1400280 Manifold 1
85 9910-1800311 Plate 1
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
Ref. No. Qty.
25 3
30 10
33 10
38 10
42 1
43 1
54 2
64 3
70 2
76 1
77 1
78 1
9910-KIT2347
O-Ring Kit
Ref. No. Qty.
30 10
32 10
33 10
9910-KIT2024
Valve Kit
Ref. No. Qty.
35
38 10
9910-KIT2100
Diaphragm Kit
Desmopan
NOTE: When ordering parts, give QUANTITY, PART
NUMBER, DESCRIPTION, and COMPLETE PUMP
MODEL NUMBER. Reference numbers are used
ONLY to identify parts in the drawing and are NOT
to be used as order numbers.
Ref. No. Description Tightening Torque
In. Lbs. Nm
1 Bolt 304.8 34.3
11 Bolt 171.4 19.6
16 Bolt 171.4 19.6
35 Bolt 171.4 19.6
36 Bolt 435.5 49.0
37 Bolt 435.5 49.0
39 Bolt 171.4 19.6
53 Plug 171.4 19.6
56 Bolt 171.4 19.6
57 Bolt 171.4 19.6
65 Bolt 87.5 9.8
1 9910-580360 Retaining bolt 5
2 9910-1040180 Diaphragm retainer washer 5
3 9910-1040080 Diaphragm-Desmopan (Std.) 5
3A 9910-1040081 Diaphragm-Buna-N (Opt.) 5
3B 9910-104008T Diaphragm, Buna-N with 5
Teflon Coating (Opt.)
4 9910-1500080 Piston sleeve 5
5 9910-650190 Piston ring 5
6 9910-1040120 Piston 5
7 9910-1040070 Connecting pin 5
8 9910-1040270 Snap ring 10
9 9910-1840110 Connecting rod 5
10 9910-1500181 Retaining ring 2
11 9910-820670 M10x16 Bolt 4
12 9910-1400140 Flange 1
13 9910-1400110 Support washer 1
14 9910-1400150 Seal 1
15 9910-650200 Needle bearing 1
16 9910-180030 M8x20 Bolt 8
17 9910-1400040 Flange 1
18 9910-1400320 Crankshaft 1
19 9910-1400090 Spacer 1
20 9910-161050 Retainer ring 1
21 9910-1409010 Bearing 1
22 9910-1040570 Retainer ring 1
23 9910-1500470 Shield 1
24 9910-1400030 Flange 1
25 9910-1040060 O-ring 3
26 9910-160740 Seal ring 1
27 9910-1500290 Bearing 2
28 9910-1500310 Spacer 1
29 9910-1400310 Shaft 1
30 9910-620030 O-ring 10
31 9910-1040551 Head (DX) 2
31 9910-1040552 Head (SX) 3
32 9910-1409050 Valve assembly 10
33 9910-540361 O-ring 10
34 9910-1300190 Valve retainer 5
35 9910-620610 M8x30 Bolt 10
36 9910-1400260 M12x70 Bolt 16
37 9910-1500240 M12x60 Bolt 4
38 9910-770571 O-ring 10
39 9910-320360 M8x22 Bolt 2
40 9910-1800320 Mount 1
41 9910-1040470 Plug 2
42 9910-640070 O-ring 1
43 9910-540360 O-ring 1
44 9910-1800280 Pulsation damper body 1
45 9910-1800300 Diaphragm 1
46 9910-1800270 Pulsation damper cap 1
47 9910-650542 O-ring 1
48 9910-380241 Washer 2
49 9910-1800350 Air valve 1
50 9910-KIT1538 Pulsation damper assembly 1
51 9910-770070 Plug 1
52 9910-1040050 Oil seal 1
53 2406-0023 Plug 5
54 9910-390180 O-ring 2
55 9910-850740 Threaded adapter (outlet) 1
56 9910-540290 M8x25 Bolt 18
57 9910-1343510 M6x14 Bolt 3
58 9910-1840140 Manifold 1
59 9910-1400050 Right base 1
60 9910-1400060 Left base 1
61 9910-110130 Hose barb 1/2" 2
62 9910-130491 Outlet ball valve w/o barb 1
63 9910-1840130 Pump body 1
64 9910-740290 O-ring 3
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
Form L-1383 (12/11, Rev. B)
