- 19 -

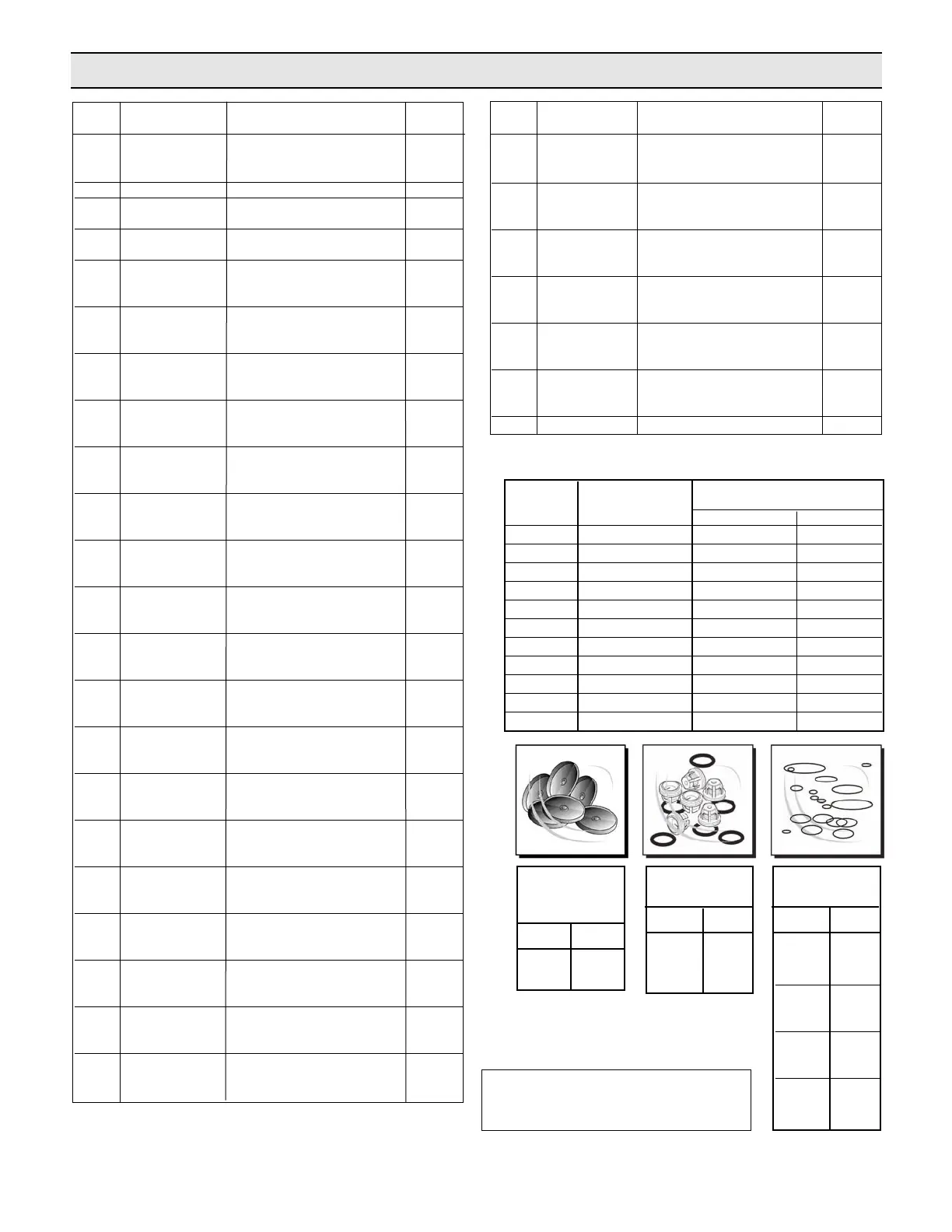

Parts List for Model 9910-D1516
59 9910-540530 Threaded adapter 1
60 9910-250310 O-ring 2
61 9910-540540 Hose barb nut 1
62 9910-540550 Hose barb 1-1/2" 1
63 9910-1500320 O-ring 2
64 9910-1500170 Bearing 2
65 9910-750040 Gasket 1
66 9910-881710 Washer 3
67 9910-851360 O-ring 1
68 9910-1400290 O-ring 1
69 9910-390210 O-ring 1
70 9910-1400090 Spacer 2
71 9910-1500330 Spacer (0.1 mm) 1
71 9910-1500340 Spacer (0.2 mm) 1
72 9910-130492 Outlet ball valve w/barb 1
73 9910-650560 Dampener o-ring 1
74 9910-1500011 Pump body 1
75 9910-1400280 Manifold 1
76 9910-1800311 Plate 1
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
1 9910-580360 Retaining bolt 6
2 9910-1040180 Diaphragm retainer washer 6
3 9910-1040080 Diaphragm, Desmopan (Std.) 6
3A 9910-1040081 Diaphragm, Buna-N (Opt.) 6
3B 9910-104008T Diaphragm, Buna-N with 6
Teflon Coating (Opt.)
4 9910-1500080 Piston sleeve 6
5 9910-650190 Piston ring 6
6 9910-1040120 Piston 6
7 9910-1040070 Connecting pin 6
8 9910-1040270 Snap ring 12
9 9910-1500160 Connecting rod 6
10 9910-1500181 Retaining ring 2
11 9910-820670 M10x16 Bolt 4
12 9910-180030 M8x20 Bolt 8
13 9910-1500470 Shield 1
14 9910-1400030 Flange 1
15 9910-1040060 O-ring 3
16 9910-160740 Oil seal 1
17 9910-1500290 Bearing 2
18 9910-1500310 Spacer 1
19 9910-1400310 Crankshaft 1
20 9910-620030 O-ring 12
21 9910-1040551 Head (DX) 3
21 9910-1040552 Head (SX) 3
22 9910-1409050 Valve assembly 12
23 9910-540361 O-ring 12
24 9910-1300190 Valve retainer 6
25 9910-620610 M8x30 Bolt 12
26 9910-1500230 M12x65 Bolt 20
27 9910-1500240 M12x60 Bolt 4
28 9910-770571 O-ring 12
29 9910-320360 M8x22 Bolt 2
30 9910-1800320 Mount 1
31 9910-1040470 Plug 2
32 9910-640070 O-ring 1
33 9910-540360 O-ring 1
34 9910-1800280 Damper body 1
35 9910-1800300 Diaphragm 1
36 9910-1800270 Cap 1
37 9910-650542 O-ring 1
38 9910-380241 Washer 2
39 9910-1800350 Air valve 1
40 9910-KIT1538 Pulsation damper assembly 1
41 9910-770070 Plug 1
42 9910-1040050 Oil seal 1
43 9910-880530 Plug 2
44 9910-390180 O-ring 1
45 9910-850740 Threaded adapter 1
46 9910-540290 M8x25 Bolt 18
47 9910-1343510 M6x14 Bolt 3
48 9910-1840140 Manifold 1
49 9910-1500040 Right base 1
50 2406-0023 Plug 1
51 9910-1500050 Left base 1
52 9910-110130 Hose barb 1/2" 2
53 9910-130491 Outlet ball valve w/o barb 1
54 9910-1500480 Pump body 1
55 9910-740290 O-ring 3
56 9910-680350 M8x35 Bolt 2
57 9910-750030 Oil reservoir 1
58 9910-1800060 Black cap 1
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
NOTE: When ordering parts, give QUANTITY, PART
NUMBER, DESCRIPTION, and COMPLETE PUMP
MODEL NUMBER. Reference numbers are used ONLY
to identify parts in the drawing and are NOT to be used
as order numbers.
Ref. No. Description Tightening Torque
In. Lbs. Nm
1 Bolt 262.5 29.4
11 Bolt 87.5 9.8
12 Bolt 171.4 19.6
25 Bolt 171.4 19.6
26 Bolt 435.5 49.0
27 Bolt 435.5 49.0
29 Bolt 171.4 19.6
43 Plug 171.4 19.6
46/47 Bolt 87.5 9.8
50 Plug 171.4 19.6
56 Bolt 87.5 9.8
Ref. No. Qty.
15 3
20 12
23 12
28 12
32 1
33 1
44 1
55 3
60 2
67 1
68 1
69 1
9910-KIT2349
O-Ring Kit
Ref. No. Qty.
36
28 12
9910-KIT2113
Diaphragm Kit
Desmopan
Ref. No. Qty.
20 12
22 12
23 12
9910-KIT2053
Valve Kit
Form L-1383 (12/11, Rev. B)
