- 9 -
7 9910-380240 Nut 2
23 9910-620610 M8x30 Bolt 2
24 9910-850711 Flange 3/4Ó 1
25 9910-550350 O-Ring 6
26 9910-680330 Flange 1
27 9910-110131 Fitting 1/2" 3
29 9910-320406 Bracket 1
31 2640-0002 Pressure gauge (1500 PSI) 1
32 9910-130170 Pipe reducer 1
33 9910-130491 Right ball valve 2
35 9910-280220 O-Ring 1
36 9910-130171 Plug 3
37 9910-550393 Port adapter 1Ó NPT OD,
3
/
4Ó
ID 1
38 9910-550370 Elbow, 90û 1
39 9910-550242 Barb nut 1
40 9910-390740 Diaphragm 1
41 9910-680412 Valve body 1
42 9910-680423 Spring housing 1
43 9910-680432 Discharge flange 1
44 9910-680442 Tension adj. support 1
45 9910-680460 Valve seat retainer 1
46 9910-680470 Valve seat 1
47 9910-680480 Valve piston 1
48 9910-680490 Piston valve seat 1

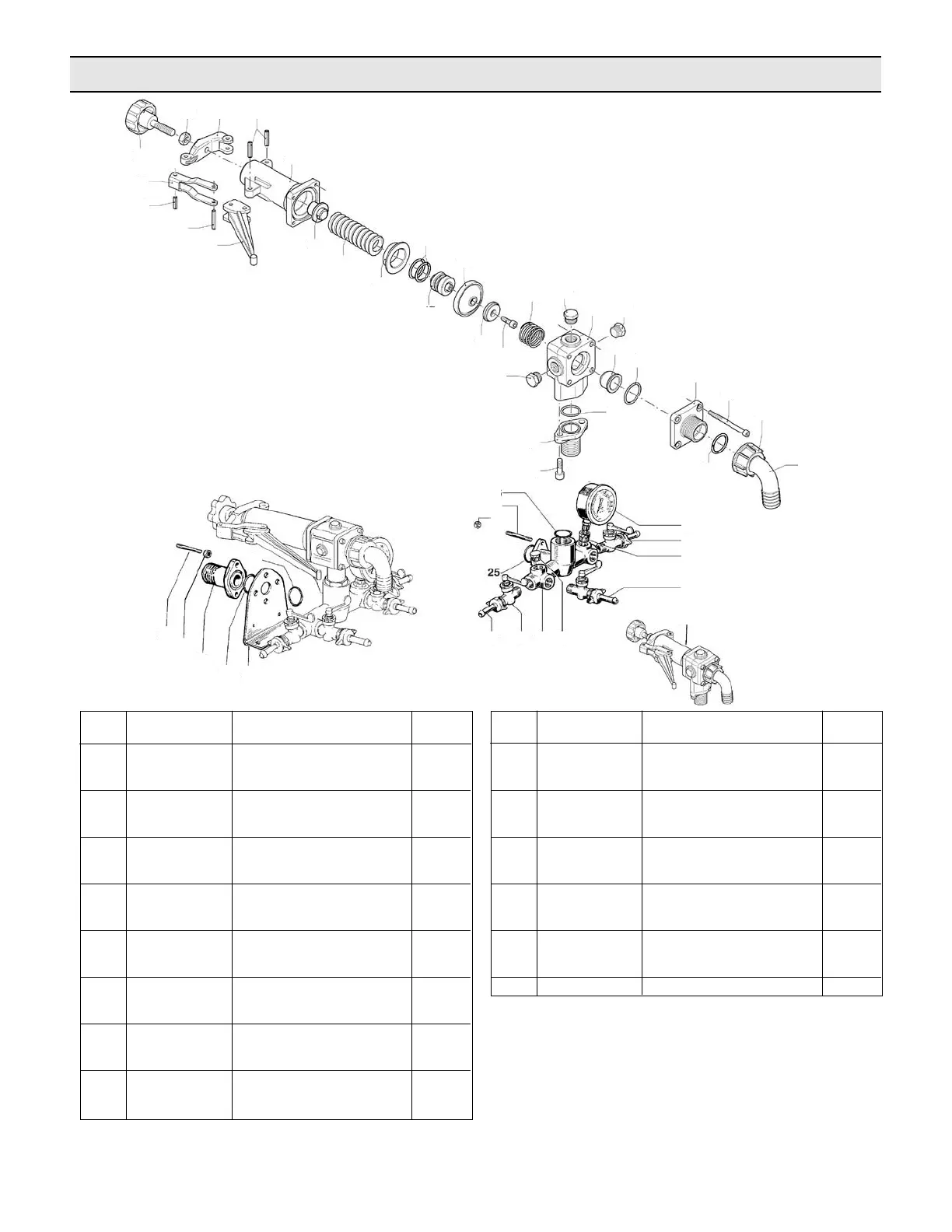

Parts List for Control Unit 9910-GS50GI
49 9910-680500 Regulating spring 1
50 9910-680510 Spring guide 1
51 9910-680520 Lever guide 1
52 9910-680530 Lever guide pin 1
53 9910-680540 Support pin 2
54 9910-680550 Roll pin 1
55 9910-680700 M6x20 Bolt 1
56 9910-680570 M6x60 Bolt 4
58 9910-660130 Control knob 1
59 9910-180150 Nut 1
61 9910-720390 Stud 2
62 9910-680400 Control unit body 1
63 9910-680452 Control lever 1
65 9910-320420 Spring 1
66 9910-KIT2497 1/2" barb ball valve 1
110 9910-689060 Complete reg valve 1
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
¥ Repair Kit No. 9910-KIT1732 consists of: six Ref. 25, one Ref. 35,
one Ref. 40, one Ref. 45, one Ref. 46, one Ref. 55, and one Ref. 65.
■ Remote Mounting Kit 9910-KIT1742 consists of: two Ref. 7, one Ref.
25, one Ref. 29, one Ref. 37, and two Ref. 61.
■
■
¥
¥
■
■
■
¥
¥
¥
¥
¥
58
51
52
54
63
59
44 53
42
50
49
25
48
47
46
55
40
65
36
36
41
36
24
23
25
45
35
43
25
56
39
38
25
61
7
31
66
32
33
27
33 62 36
110
25
61
7
37
25
29
Form L-1383 (12/11, Rev. B)
