1. LOWER HALF
2. UPPER HALF
3. CONTROL HANDLE CARD ASSEMBLY
4. SHAFT
5. BUSHING
6. LH BUTTERFLY KNOB
7. WASHER
8. SCREW
9. SPRING
10. RH BUTTERFLY KNOB
11. SWITCH COVER
12. SPRING
13. SWITCH
14. HORN SWITCH COVER
15. SWITCH ASSEMBLY
16. LABEL
17. LABEL
18. LABEL
19. ACTUATOR
20. ACTUATOR
21. SPRING
22. MICROSWITCH

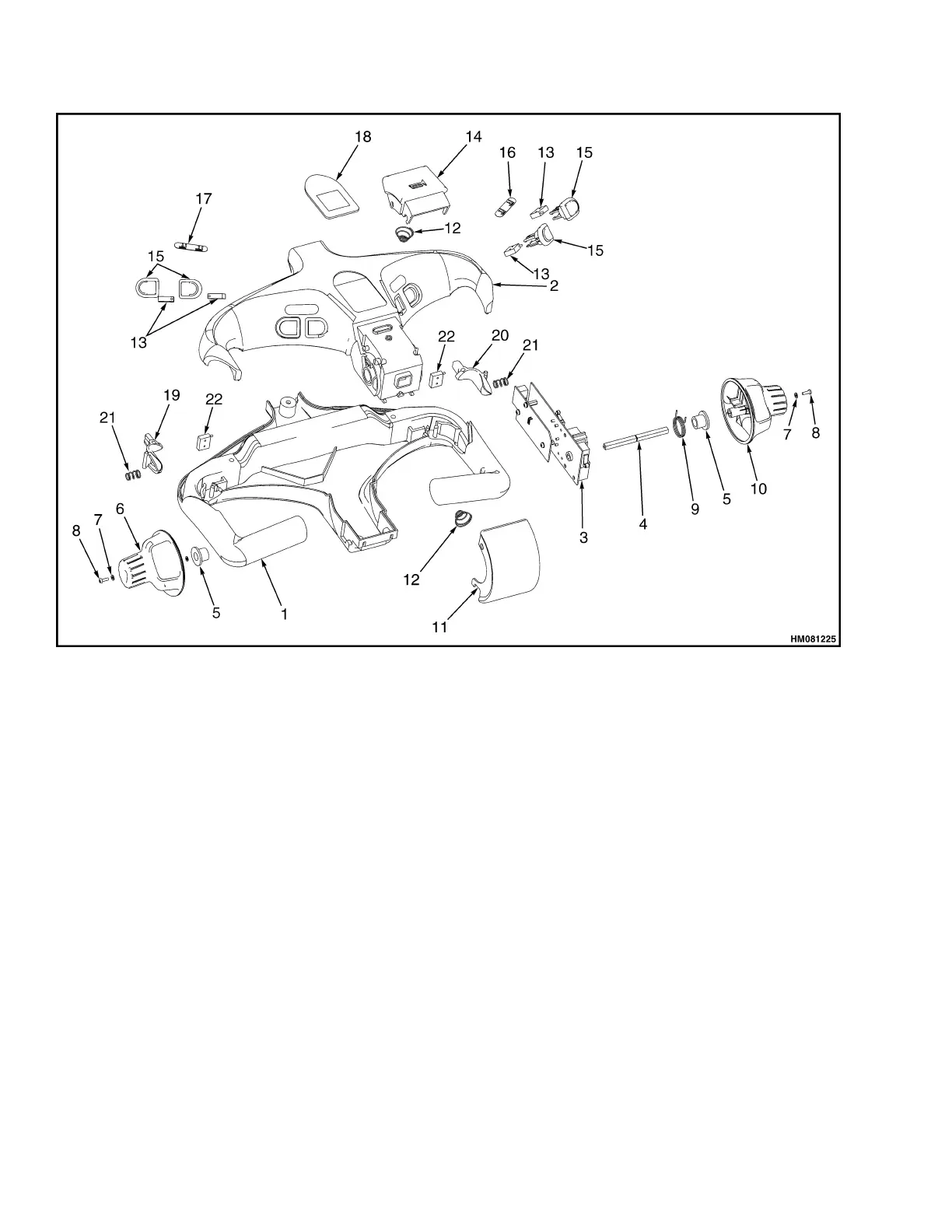

Figure 12. Control Handle
Control Handle (Standard) 2200 SRM 1640
