Two-Stage Mast 4000 SRM 764
1. HYDRAULIC HOSE
2. FRAME
Figure 8.
Hydraulic Hose
7. Connect t
he proximity switch wire harness to the
proximit
y switch connector located on the mast
cylinde
r. Use clamp straps to secure the wire
harness
traveling up the cylinder. The harness
needs to
travel through the grommet and down
the mast
cylinder See Figure 9.
8. With the
hoist still attached to the platform, raise
the pla
tform to a height that will allow for easy
access
under the platform.
NOTE: I
f your truck is equipped with wire guidance
refer t
otheInstallationsectionofWire Guidance
2200 SR
M 1471 before continuing with installation.
9. Under t
he platform, insert the four mast mount-
ing bol
ts and washers as shown in Figure 10. Af-
ter in
serting the bolts lower the platform.
1. PROXIMITY SWITCH
2. HARNESS

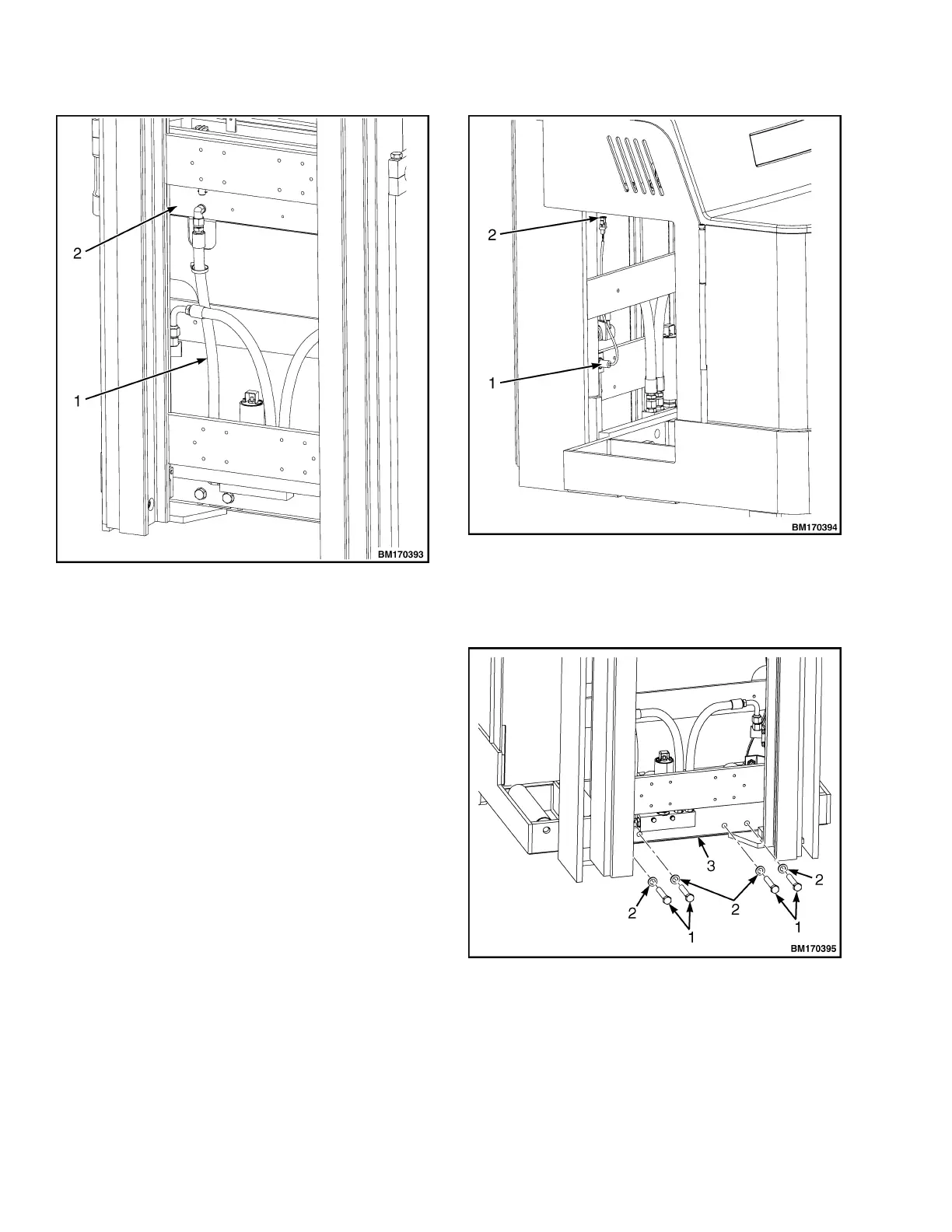

Figure 9. Proximity Wire Routing and
Connection
1. CAPSCREW
2. WASHER
3. MAST ASSEMBLY
Figure 10. Mast Connection
12
