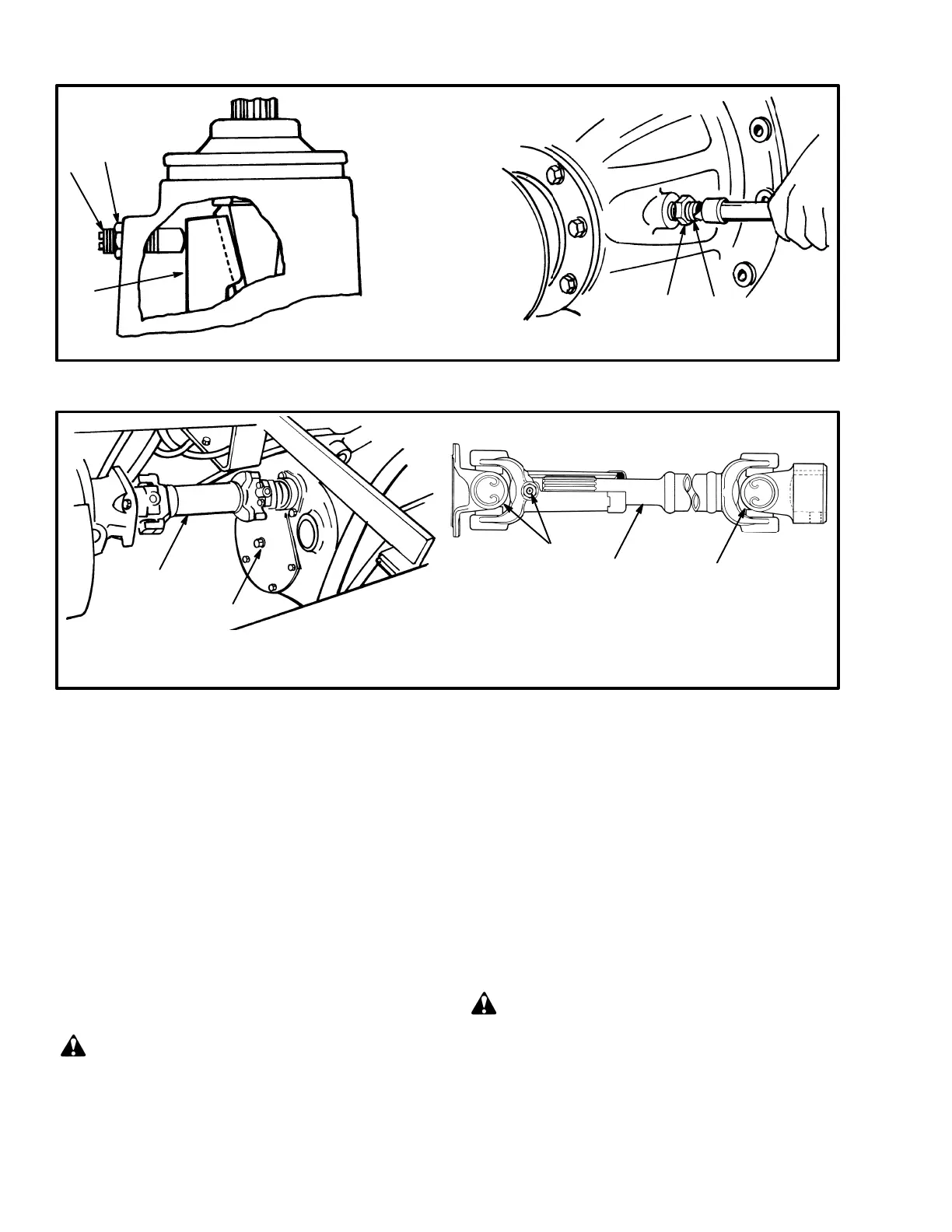

FIGURE 19. THRUST SCREW FOR THE DIFFERENTIAL
1. THRUST SCREW
2. LOCK NUT
3. RING GEAR
11651
12
1
2
3
FIGURE 20. DRIVE SHAFTS
3. DRIVE SHAFT FOR HYDRAULIC PUMP
4. GREASE FITTING
11638
H6.00–7.00XL (H135–155XL) ONLY
1. DRIVE SHAFT FOR TRANSMISSION
2. FILL PLUG FOR SPEED REDUCER
1
2
3
4
4
11638
DRIVE SHAFTS (See FIGURE 20.)
Lubricate the two grease fittings on the transmission
drive shaft with multi–purpose grease.
H6.00–7.00XL (H135–155XL) lift trucks. Lubricate
the three grease fittings on the drive shaft for the hydrau-
lic pump with multi–purpose grease. There is a grease
fitting at each universal joint and one grease fitting for
the sliding spline.
EVERY 350 HOURS OR TWO MONTHS
NOTE: Do these procedures in addition to the 150 hour checks.
ENGINE OIL AND FILTER
NOTE: Change the oil filter for the engine after the first
100 hours on new lift trucks.
WARNING
Long term exposure to used engine oil may cause
skin irritation or cancer. Wash with detergent and
water.
Disposal of lubricants and fluids must meet local
environmental regulations.
CAUTION
Never run the engine without oil.
Change the oil filter at the same time engine oil is
changed. Use the correct oil according to the specifica-
tions. Install a new filter. Apply clean oil to the gasket of
