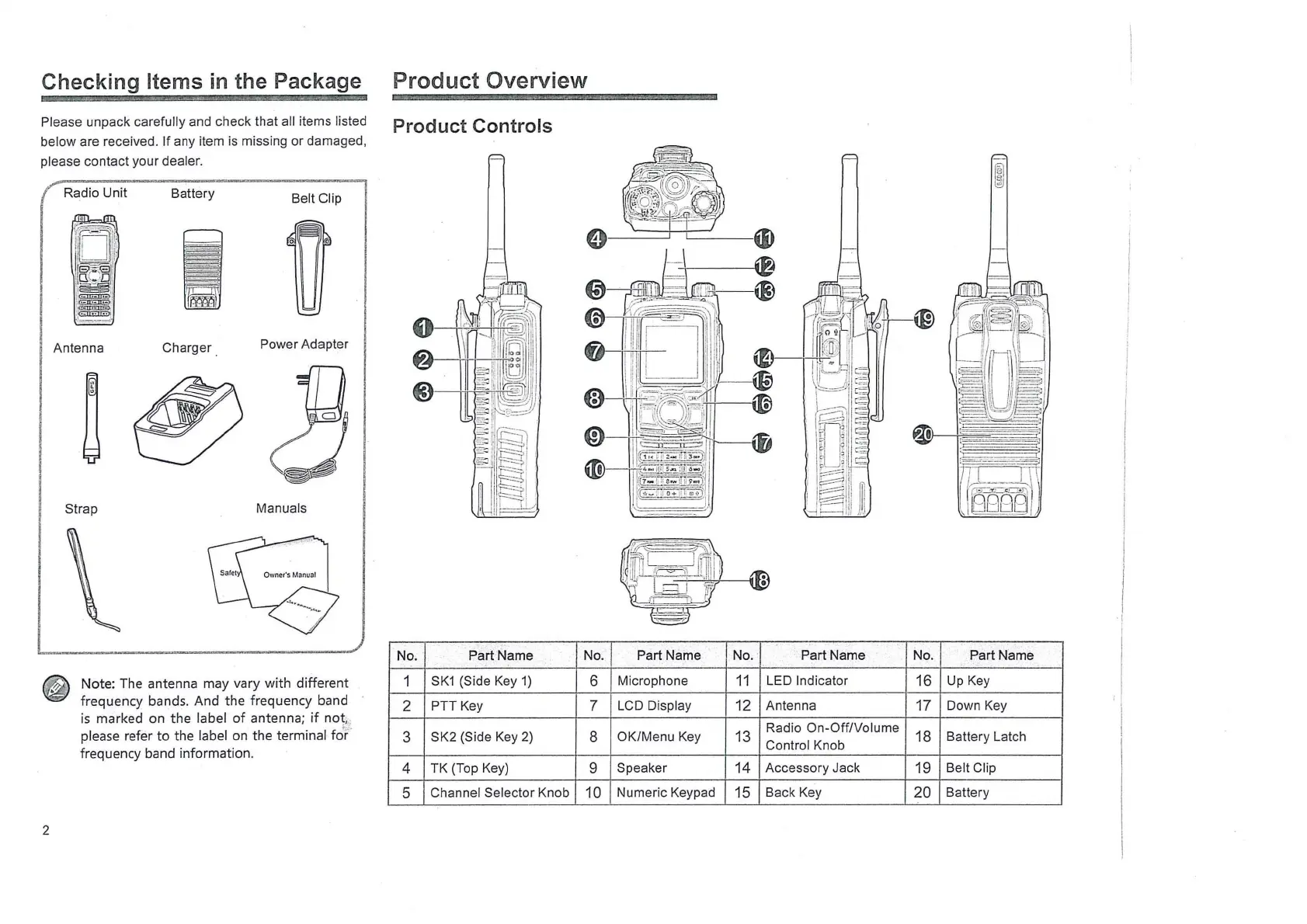

Hytera PD-795 Ex - Product Overview; Product Controls

Checking Items in the Package
Please unpack carefully and check that all items listed
below are received.
If any item is missing or damaged,
please contact your dealer.
2
Radio Unit
Battery
Belt
Clip
Antenna Charger.
Power Adapter
Strap
Manuals
Note: The antenna may
vary with different
frequency bands. And
the frequency band
is marked on the label of antenna; if not,
...
please refer to the label on the terminal for
frequency band information.
Product Overview
Product Controls
No.
Part Name No.
1
SK1 (Side Key 1)
6
2
PTT Key
7
3
SK2 (Side Key 2)
8
4
TK (Top Key)
9
5
Channel Selector Knob
10
I
I
I
I
I
Part Name No. Part Name No. Part Name
Microphone
11
LED Indicator
16
Up Key
LCD Display
12
Antenna
17
Down Key
OK/Menu Key
13
Radio On-Off/Volume
18
Battery Latch
Control Knob
Speaker
14
Accessory Jack
19
Belt Clip
Numeric Keypad
15
Back Key
20
Battery
