10-11

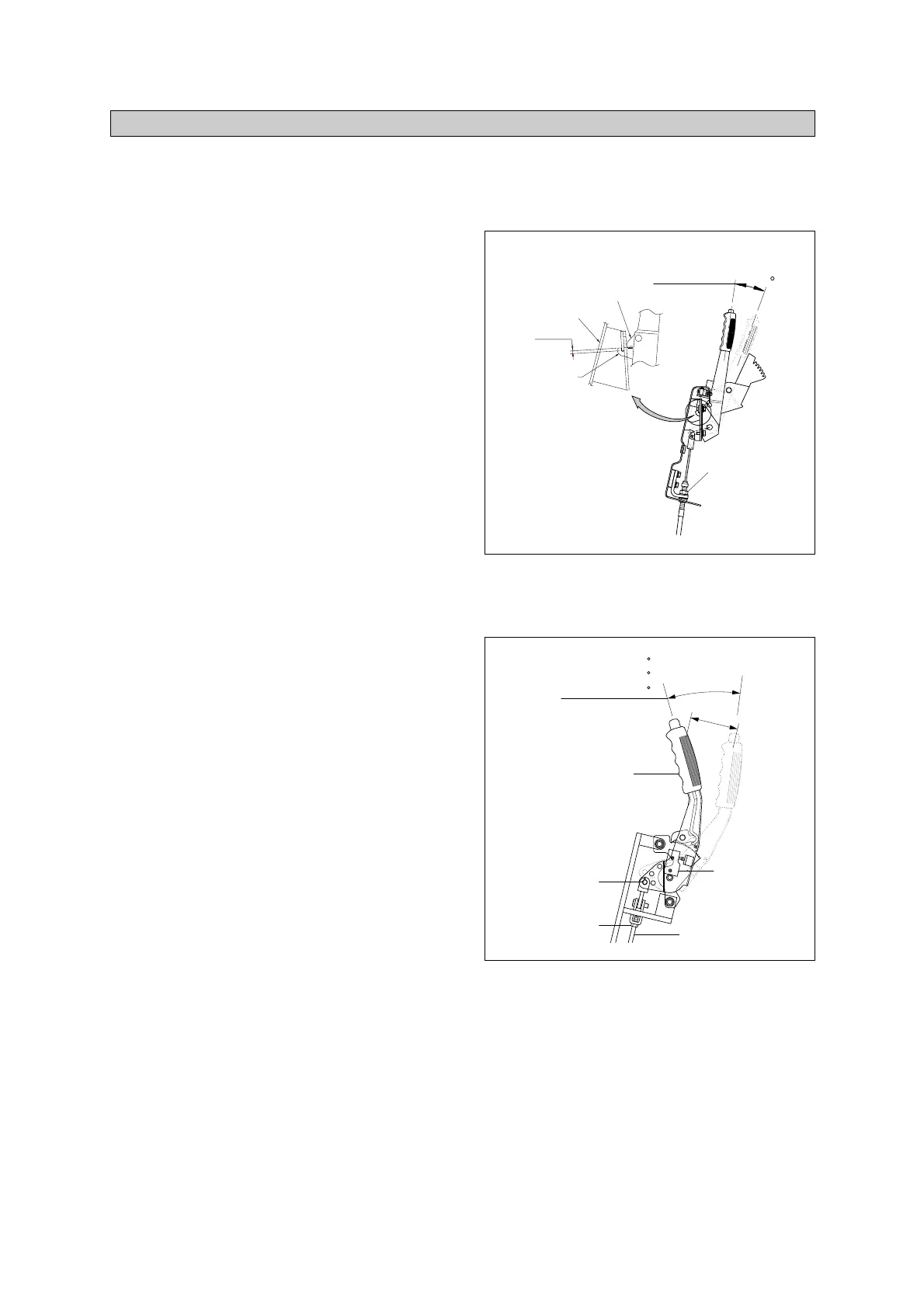

5. ADJUSTMENT OF PARKING BRAKE LEVER
Lever stroke
12.1
Adjust screw
Pawl
Ratchet
Cowl
4mm
20DFOM97
1. RATCHET TYPE PARKING LEVER
Put the lever in the brake released position.
Tighten it with a adjust screw so that lever
stroke is 12.1
ä .
1)
2)
Â15D/18D/20DA-7E, 20D/25D/30D/33D-7E, 20DF/25DF/30DF/33DF-7, 35DF-7
IIt should be maintained at least 4 mm of
the latching depth that the pawl of the
parking lever is haspe
d on the latch of
the cowl so that it can prevent the
parking brake from unexpected releasing
problem of
the parking operation.
ö
Put the lever to the brake released position.
Pull the parking lever up to the specified
stroke which is 23
Á for 35D/40D/45D-7E,
50D-7AE, 50DF/60DF/70DF-7 and 26
Á for
50D/60D/70D-7E, 80D-7E respectively and
the fix the adjust nut.
1)
2)
82
Knob
Parking cable
Pin
Nut
Parking
switch
3.5~5ton : 23
5.0~8ton : 26
Stroke
50/60/70DF-7 : 23
ÂÂ35D/40D/45D-7E, 50DA-7E, 50D/60D/70D-7E, 50DF/60DF/70DF-7
50DF7OM98
