3. THE IBU2 TRUCK

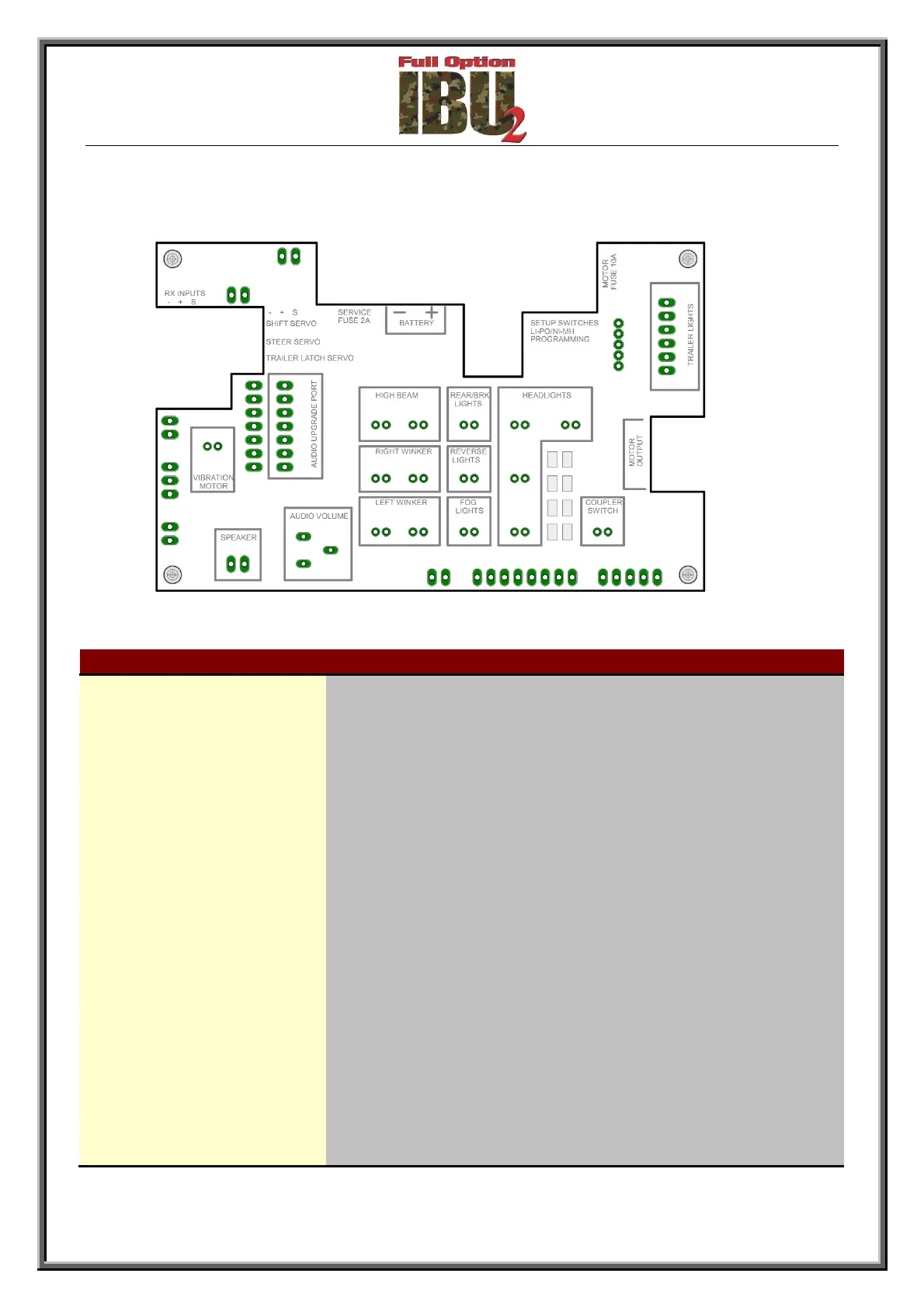

Layout of the IBU2 Truck.
Connector Utilization
Vibration Motor Output for cabin vibration motor
Speaker 2W audio output @ 8 ohms (4W @ 4 Ohms)
High Beam High beam lights output
Right Winker Right turn indicator output
Left Winker Left turn indicator output
Fog Lights Front fog lights output
Reverse Lights Reverse light output
Rear /Brake Lights Rear/brake lights output
Headlights Headlight/Side lights output
Coupler Switch Trailer micro switch input
Battery Power input
Motor Output Motor output
Audio Volume Audio volume regulation
Service Fuse Protection fuse for services (2A)
Motor Fuse Protection fuse for traction motor (10A)
Gear Shift Servo Gear shift servo output
Steer Servo
Trailer Latch
Steering servo output
Trailer latch servo output
