8

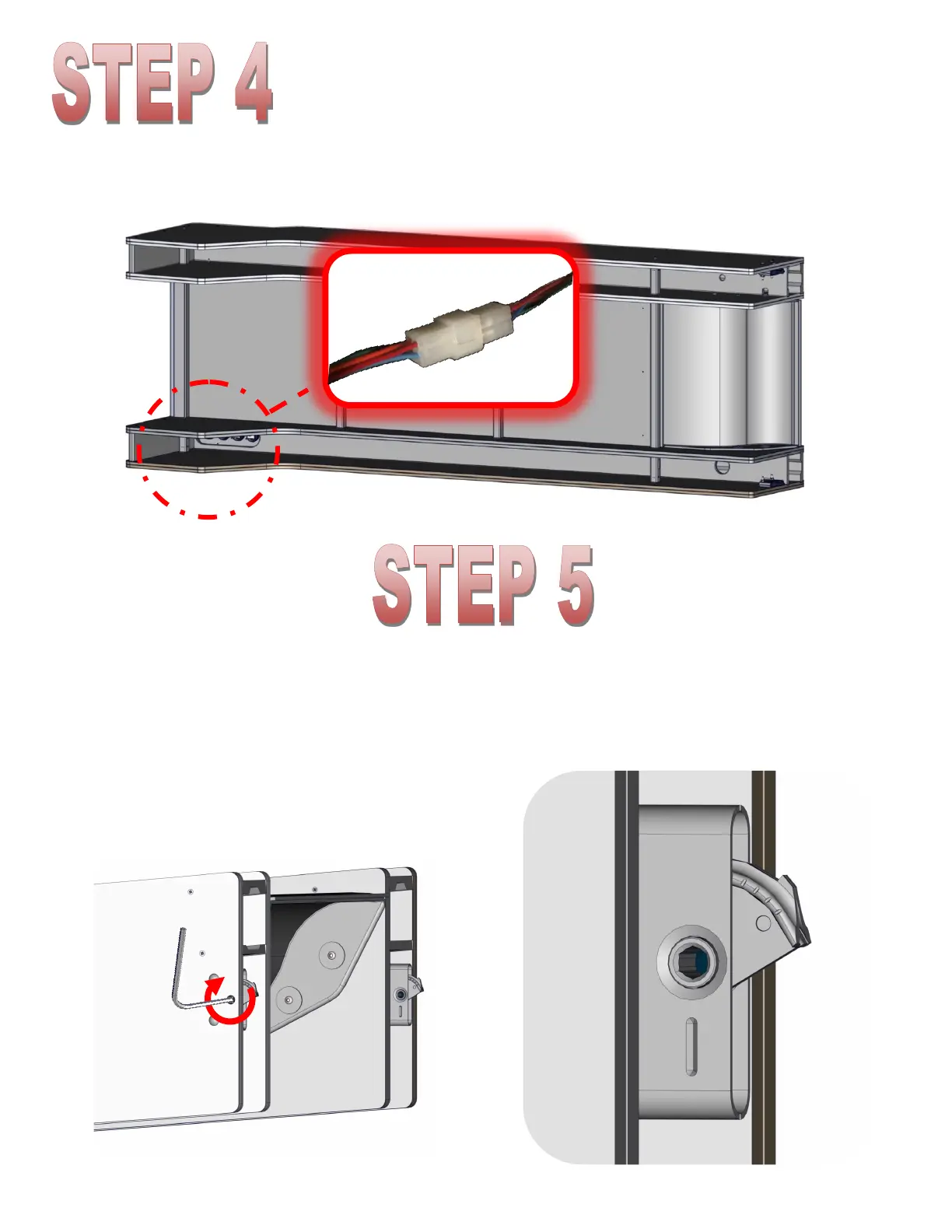

Before flipping the cabinet right side up, connect the RGB harness from the support bar.
You made sure it was tucked into the square TUBE in Step 1 before you began assembly.
The cabinet uses cabinet latches to secure the back and front cabinets together. It will be
mush easier to assembly the two halves of the cabinets if you turn the latches 1/2 so that they
extend out a little. This is done using the latch tool provided in the parts box. The latches
have a decal showing a lock either locked or unlocked. Insert the latch tool in both latches and
only turn them 1/2 way as shown below.
½ out
