I.C.E Iceball Pro - Assembly Step 6: Securing Side Panels; Attaching Clear Side Panels; Bottom Component Installation

9
Locate the clear plastic side panels, four PC60601 Allen bolts, four AA6212 washers, and four
AA6110 Joint Connectors.

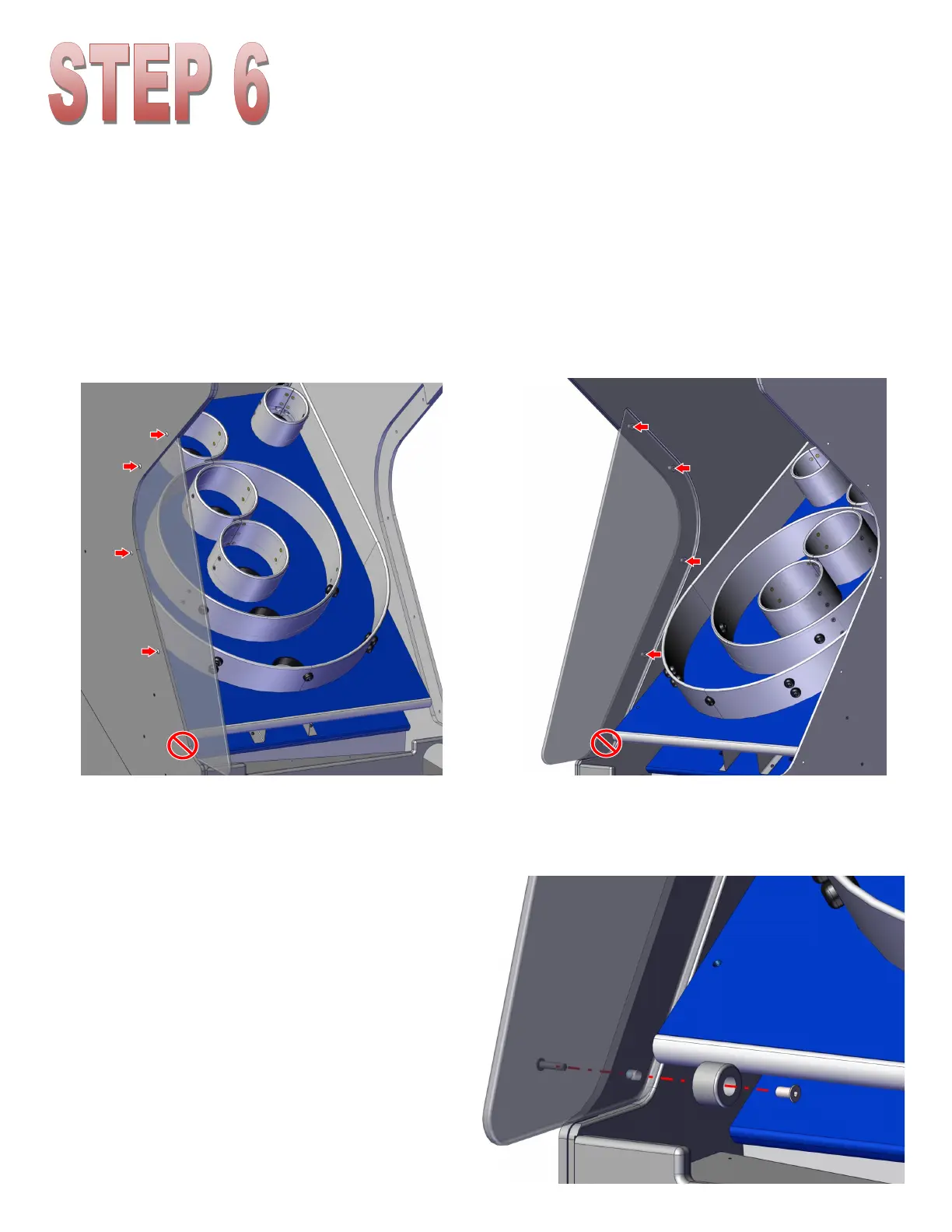

On the outside of the cabinet insert four PC60601 Allen bolts with AA6212 washers shown in
the red arrows on the left. Do not insert one at the bottom. From the inside Insert the clear
plastic side panel and four AA6110 joint connectors. Use the 3/16 Allen wrench on the outside
and 5/32 Allen wrench on the inside to secure.
Repeat for the other side.
On the outside at the bottom insert one
PC60601 Allen bolt through the cabinet. Then
from the inside, install AR3502 bumper and
AA6110 joint connector. From the outside use
the 3/16 Allen wrench and the from the inside
use 5/32 Allen wrench to secure.
Repeat for the other side.
