Video Input Connector

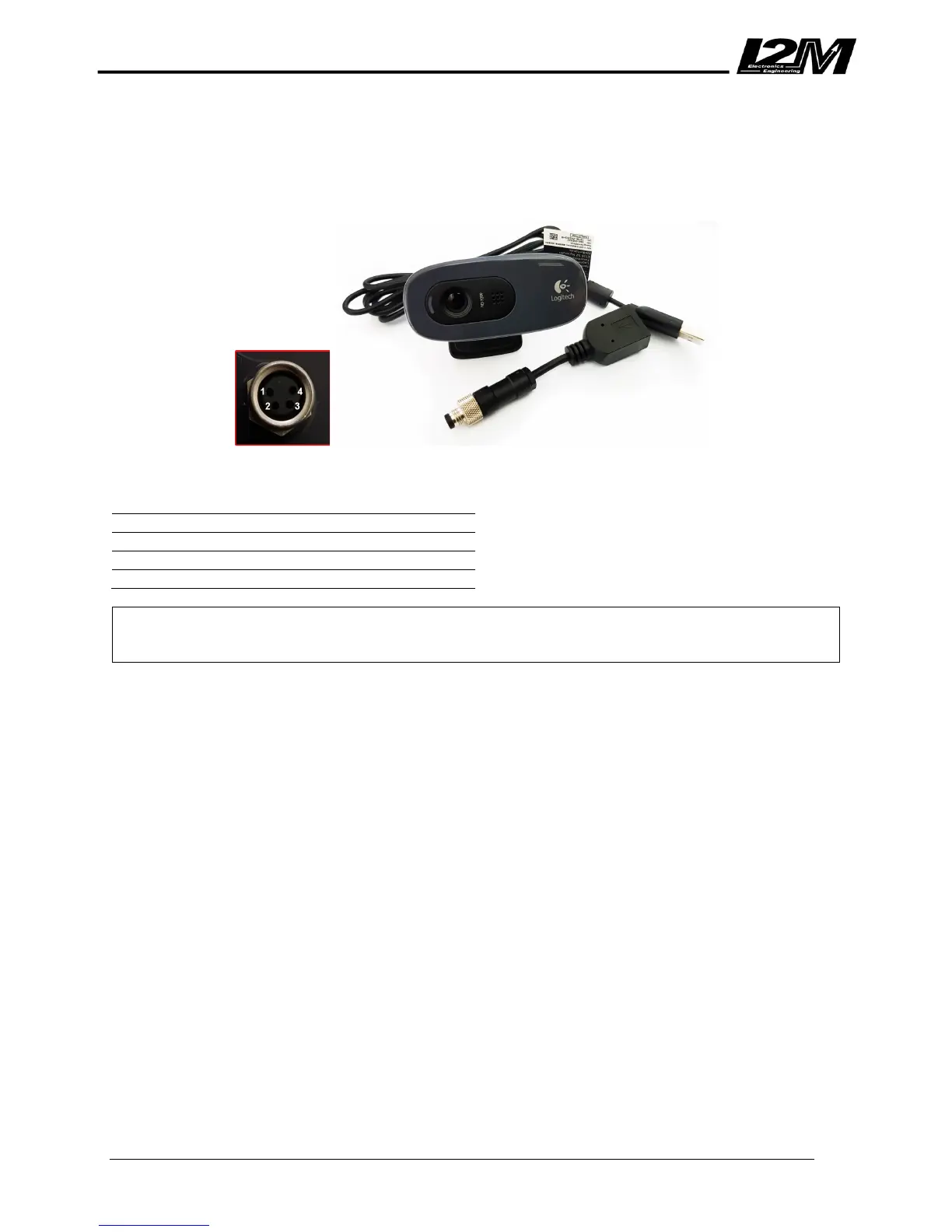

For video input there is a 4-Pin screwed female connector (with Plus & Pro only) located at the rear of the
Chrome unit. The connection is USB therefore enabling the Chrome to connect to a Logitech C270 webcam
directly and recording video at 1280 x 720 resolution.
4-Pin Binder 768 Connector
(Part# 99-3383-00-04)
1
USB Vcc (+5V) (red)
2
USB Data- (white)
3
USB Ground (black)
4
USB Data+ (light green)
CAUTION:
Not all webcams are compatible with the Chrome unit, we strongly advise using the Logitech C270 for
video input and recording purposes.
