IAE DraftMaster - A Aching Storage Rack; A Aching an Jump Rail; A Aching Weigh Scale Bracket

12
Aaching
Storage Rack

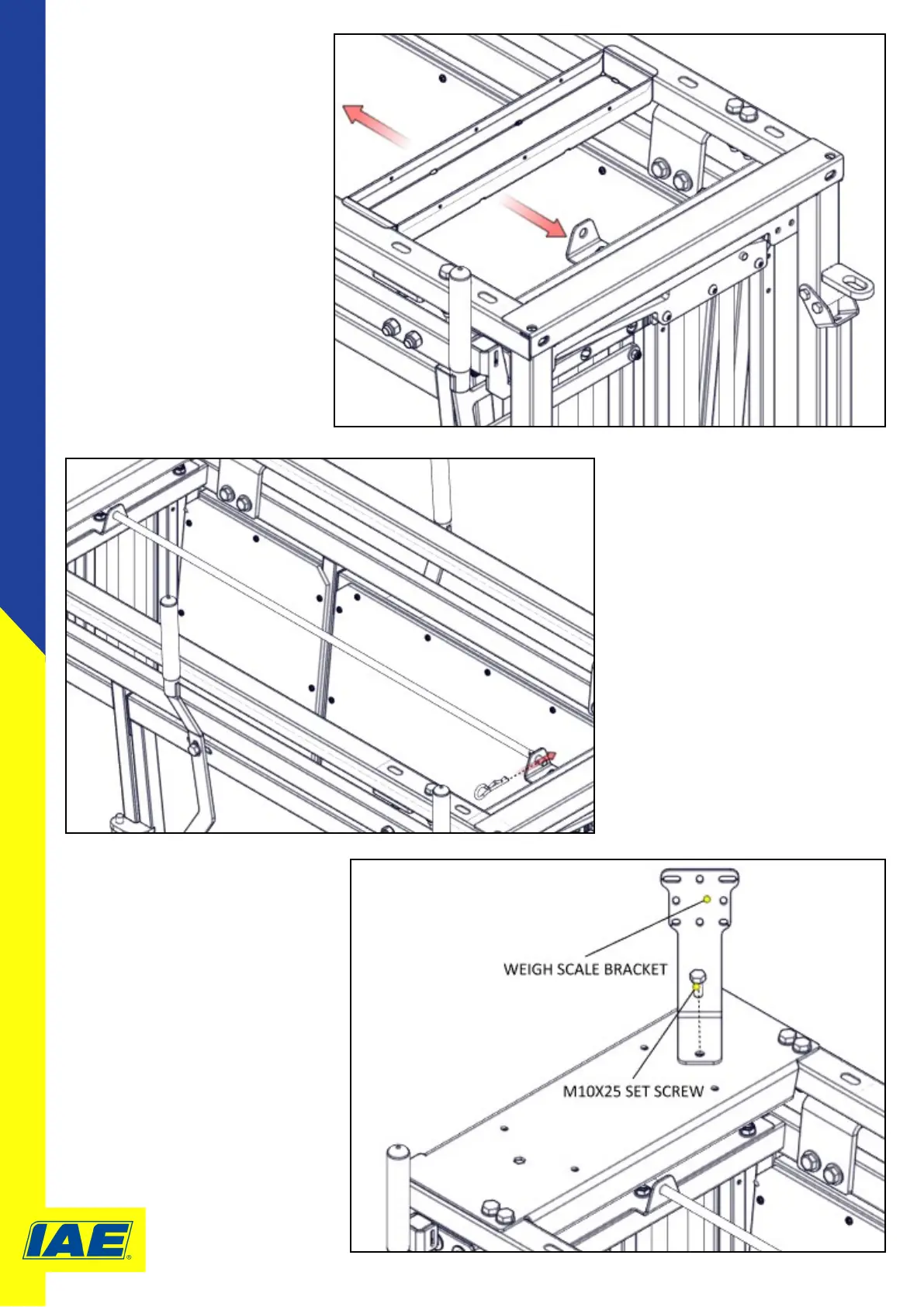

To aach the storage rack -
Place the rack on top of the
DraMaster, between the side rails
of the outer crate as shown in Fig 27
The rack is le loose so that
personnel are able to slide the rack
freely from front to rear - theÊ
storageÊrackÊcanÊbeÊscrewedÊtoÊtheÊ
frontÊtopÊrailÊifÊnecessaryÊ(screwsÊnotÊ
supplied).
Aaching
An Jump Rail
To aach the an jump rail -
Insert the rail into the pre-drilled fixing
plates at each end of the outer crate.
Next, fit the locking pin through drill
hole at the nibbed end of the rail -
ensureÊtheÊdrilled/nibbedÊendÊisÊatÊtheÊ
frontÊasÊshownÊinÊFigÊ28
Aaching
Weigh Scale
Bracket
Aach the weigh scale fixing plate to
the DraMaster main body using
M10X25 set screw - referÊtoÊseconÊonÊ
pagesÊ15Ê-Ê18ÊforÊcalibraonÊofÊtheÊ
weighÊscaleÊ
Fig 28
Fig 29
Fig 27
