IAE DraftMaster - Opposite Hand Set-Up; How to Transport

14
How To
Transport
Use the transport handles to
reposion the DraMaster.
Please take note of the following
before moving, for the stability and
maintenance of the DraMaster.
· DO NOT! move long
distances
· Use M10 X 75 bolts to fasten
the outer crate and inner
cage together to avoid
damaging the load bars
Pull the sliding door handle back and
outwards to dra animal in direcon 1
Push door in to latch once animal is out

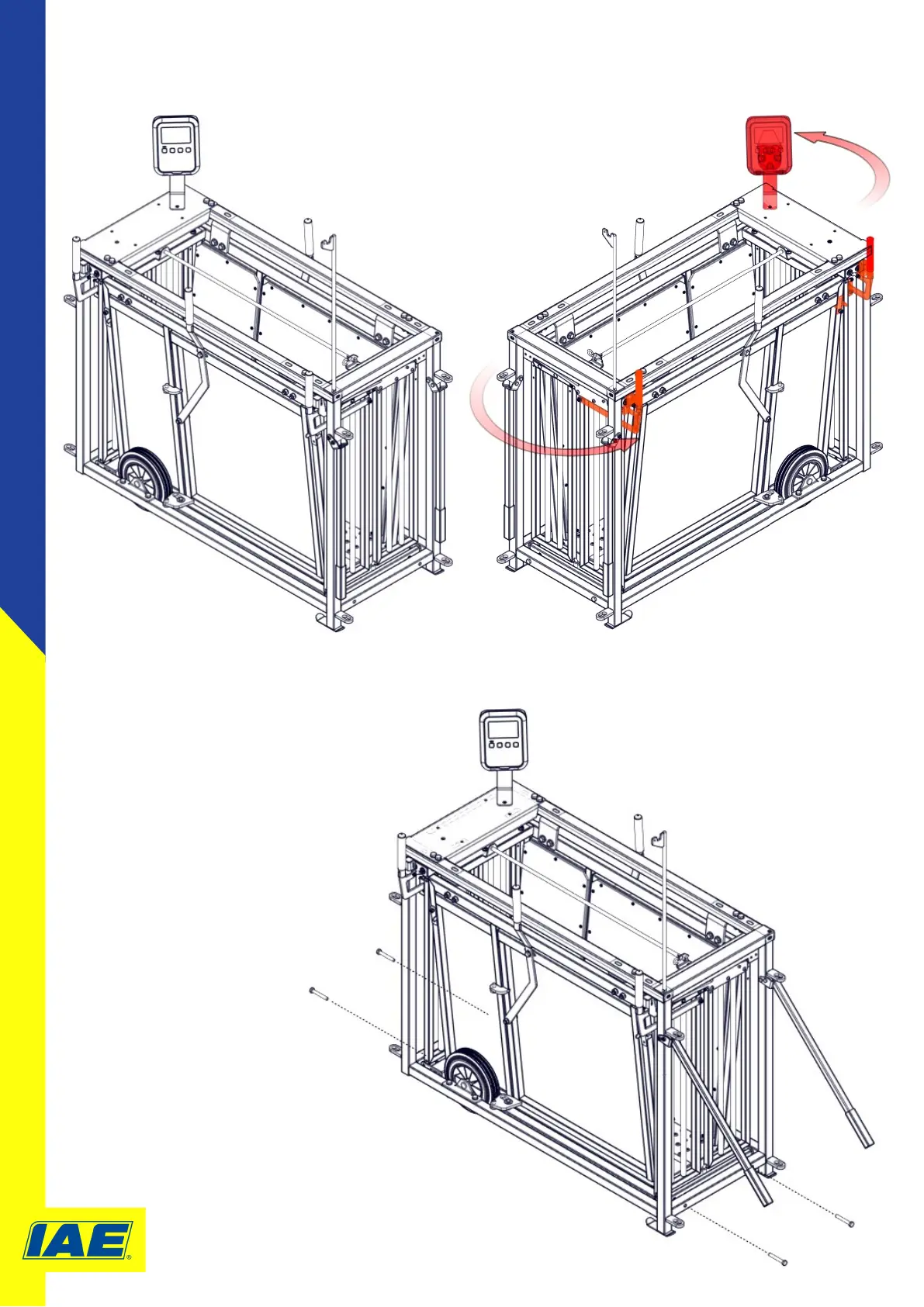

DraMaster RH Set-up
Opposite Hand Set-up
DraMaster LH Set-up
Relocate the sliding door handles, handle guides, latch housing, stop
plates and the weigh scale bracket to change to opposite hand.
Fig 30 Fig 31
Fig 32
