7
2.13
B041 3050 10 M10 Washer (Form E)
2.14
1002543 Ø10.5ID Ø20OD 2mm Nylon Washer
2.15
B001 3100 25 M10X25 Set Screw BZP
2.16
B009 2080 45 M8 X 45 Cup Square Bolt GLV
2.17
B040 3002 08 M8 Full Nyloc Nut Type T BZP
2.18
B041 3302 08 M8 Spring Washer Type B BZP
2.19
B029 3060 60 M6 X 60 Socket Buon Head Screw BZP
2.20
1002601 M6 X 45 SKT Buon Head Screw BZP
2.21
B040 3002 06 M6 Nyloc Nut Type T BZP
2.22
B041 3001 06 M6 Washer (Form 'A')
2.12
B040 3002 10 M10 Full Nyloc Nut Type T BZP

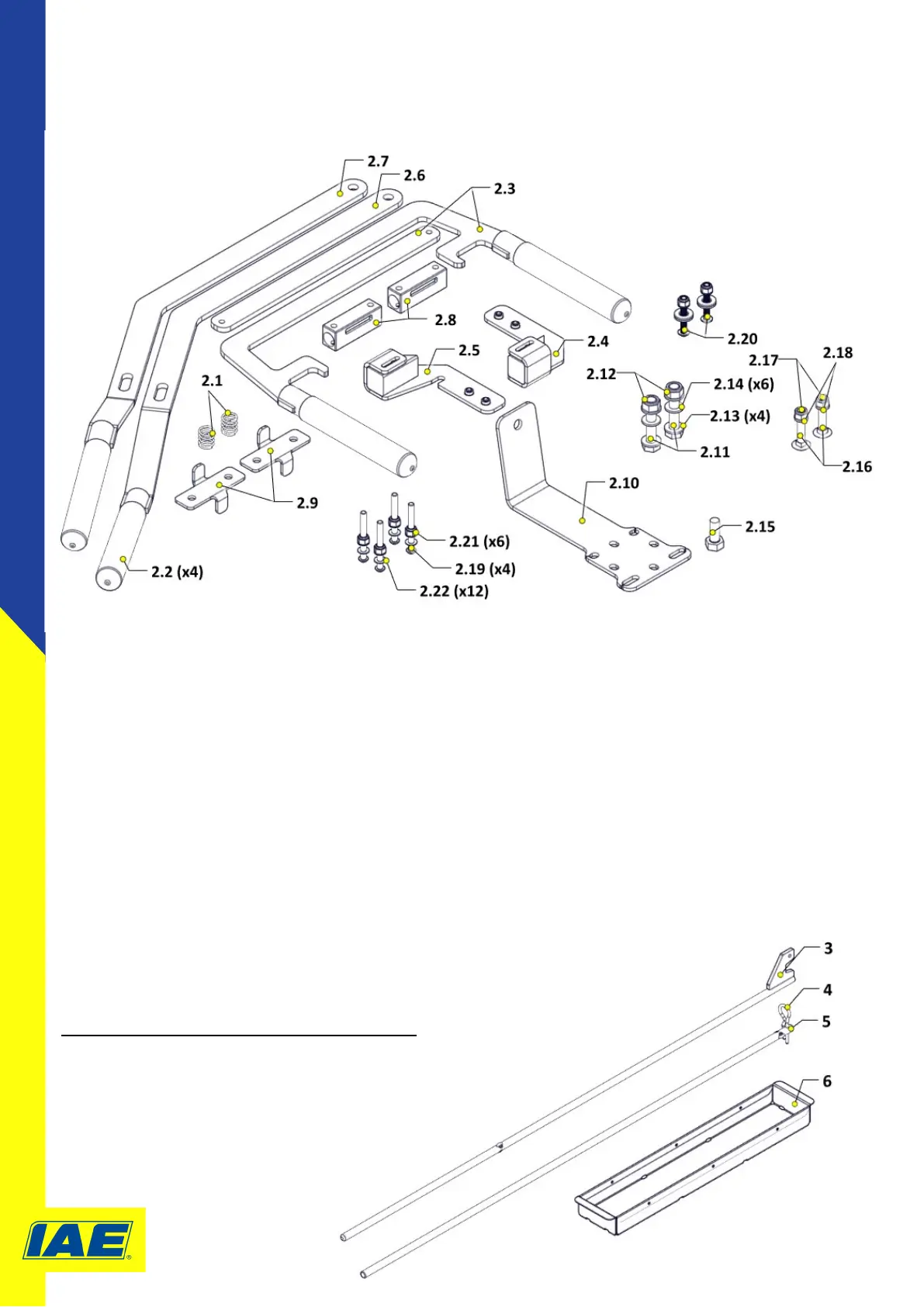

Parts List DraMaster Fings Kit
Product Code 1002607-01
BOM ID PART_NO IAE_DESCRIPTION
2.1
B142 0160 30 Compression Spring 16.5D X 30L X 1.4 Wire
2.2
B107 0002 50 25mm Blue Textured Hand Grip
2.3
1002550 Sliding Door Handle
2.4
1002811 Sliding Door Latch Housing Assembly LH
2.5
1002809 Sliding Door Latch Housing Assembly RH
2.6
1002540 3 Way Draer RH Side Door Handle
2.7
1002537 3 Way Draer LH Side Door Handle
2.8
1002531 20X25X70 HDPE Handle Guide
2.9
1002559 CR SHT 3 43X38X85 Profiled BTF
2.10
1002556 HR SHT 4 184X98X104 Profiled BTF
2.11
B003 3100 55 M10 X 55 Bolt BZP
BOM ID PART_NO IAE_DESCRIPTION
3
1002561 Medicinal Bag Holder
4
B102 9100 40 4mm Spring R Clip 75mm Long
5
1002560 An Jump Bar
6
1002553 Spray Storage Rack
Loose items will be stowed away inside
the main body inner cage
DraMaster Loose Items
Fig 11
Fig 12
