7
CON ROD SMALL END ROLLER CAGE
Replacement is recommended after about 100 liters of use.
CRANKSHAFT, CON ROD BIG END CAGE, CRANK PIN, WASHERS
Replacement is recommended after 200 liters of use.
MAIN ROLLER BEARINGS
Replacement is recommended after 200 liters of use.
CON ROD
Replacement is recommended after 400 liters of use

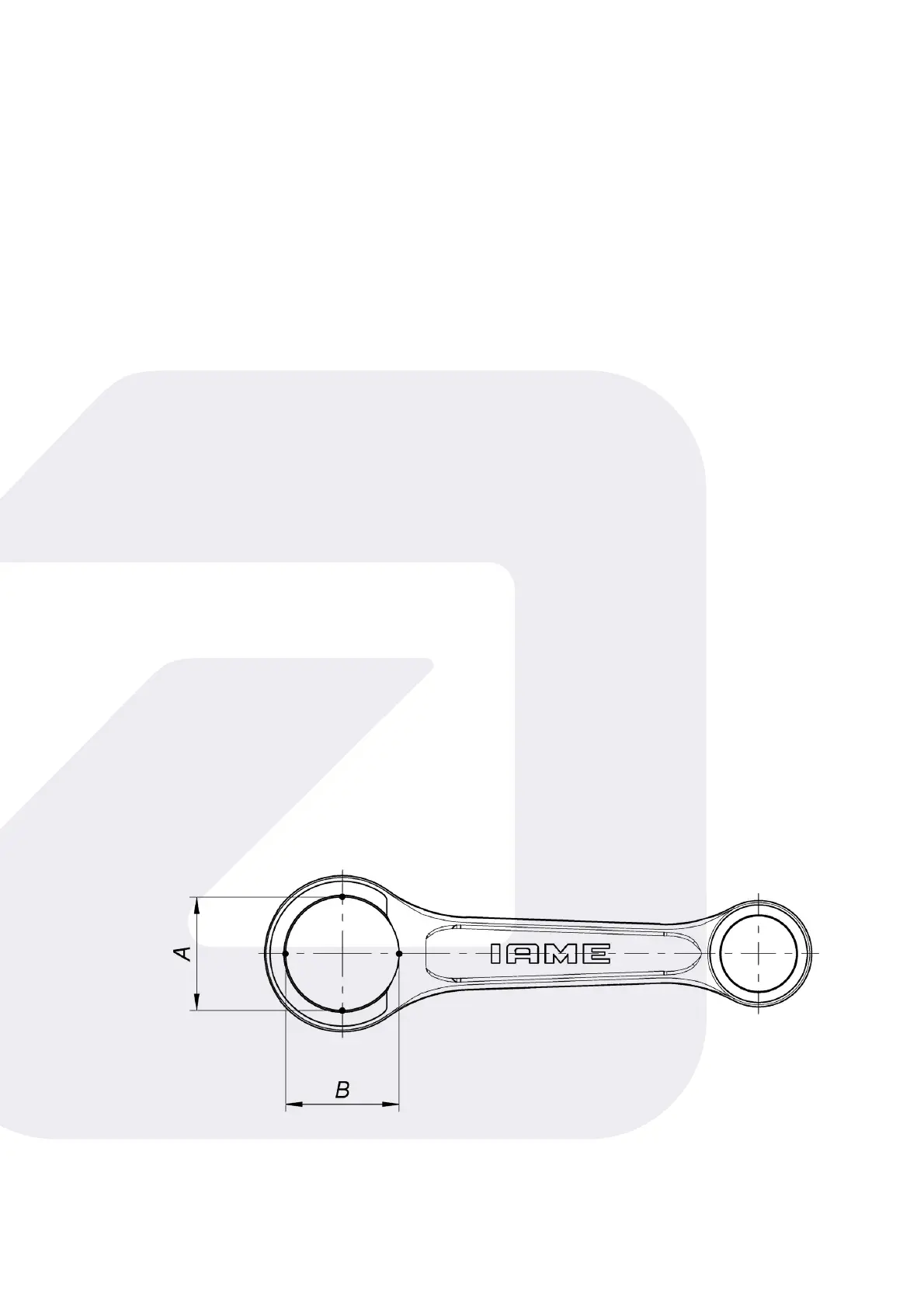

The con rod must be replaced when the roundness of the big end hole exceeds
0.01mm. This value is given by the difference between the diameter measured at
the positions indicated below "A" and "B".
