IBC EX Series Installation And Operating Manual

Combustion air from outdoors
Flue gas exhaust to outdoors
Boiler supply connection at rear of boiler
Boiler return connection at rear of boiler

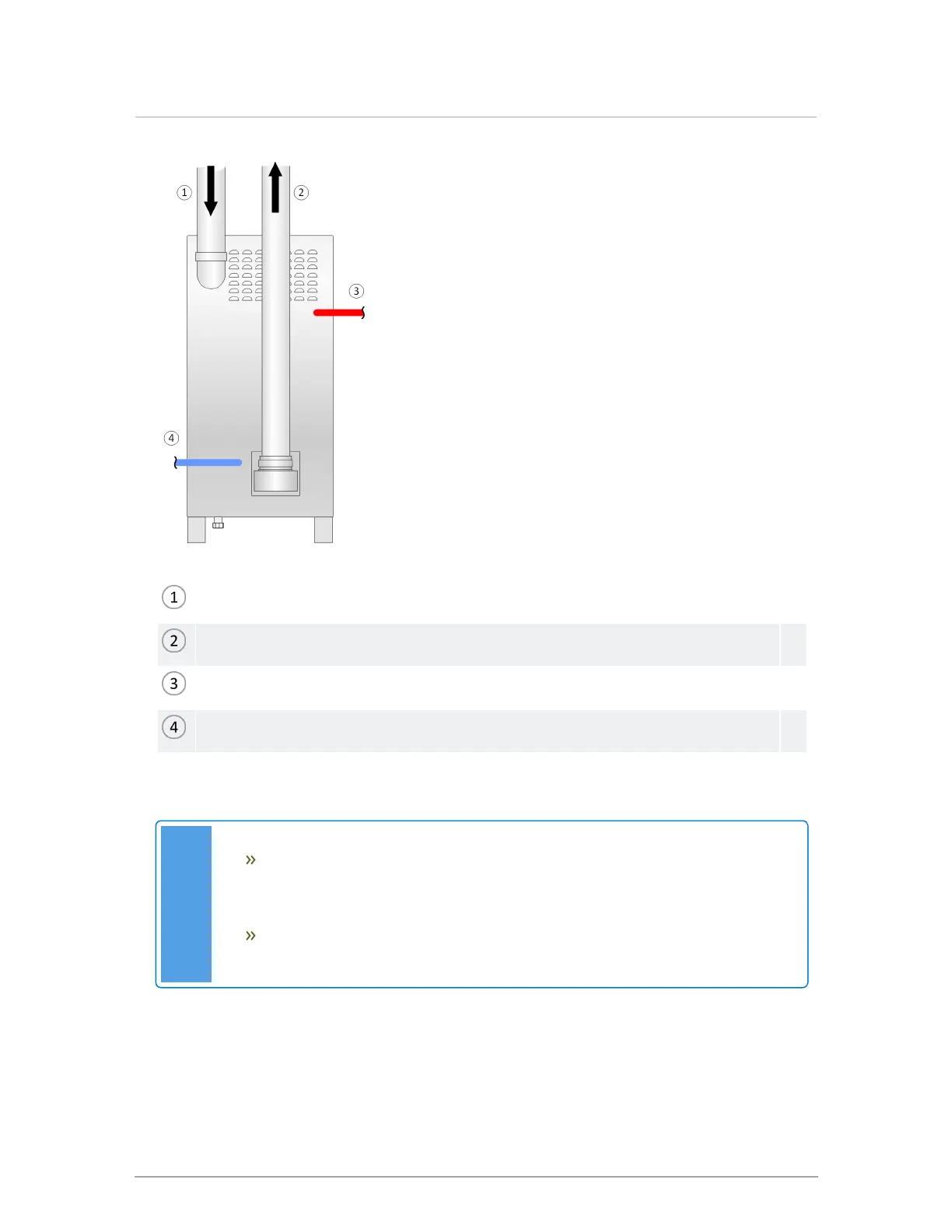

Figure 20 Rear view - combustion air intake
Notes
When installing air intake piping, ensure that a “trap” is not formed in the piping
causing a build-up of water and blockage of intake air. Such blockages will cause a
boiler safety shut-down.
Filters require checking and cleaning or replacing on a regular schedule based on
the severity of the problem.
34
