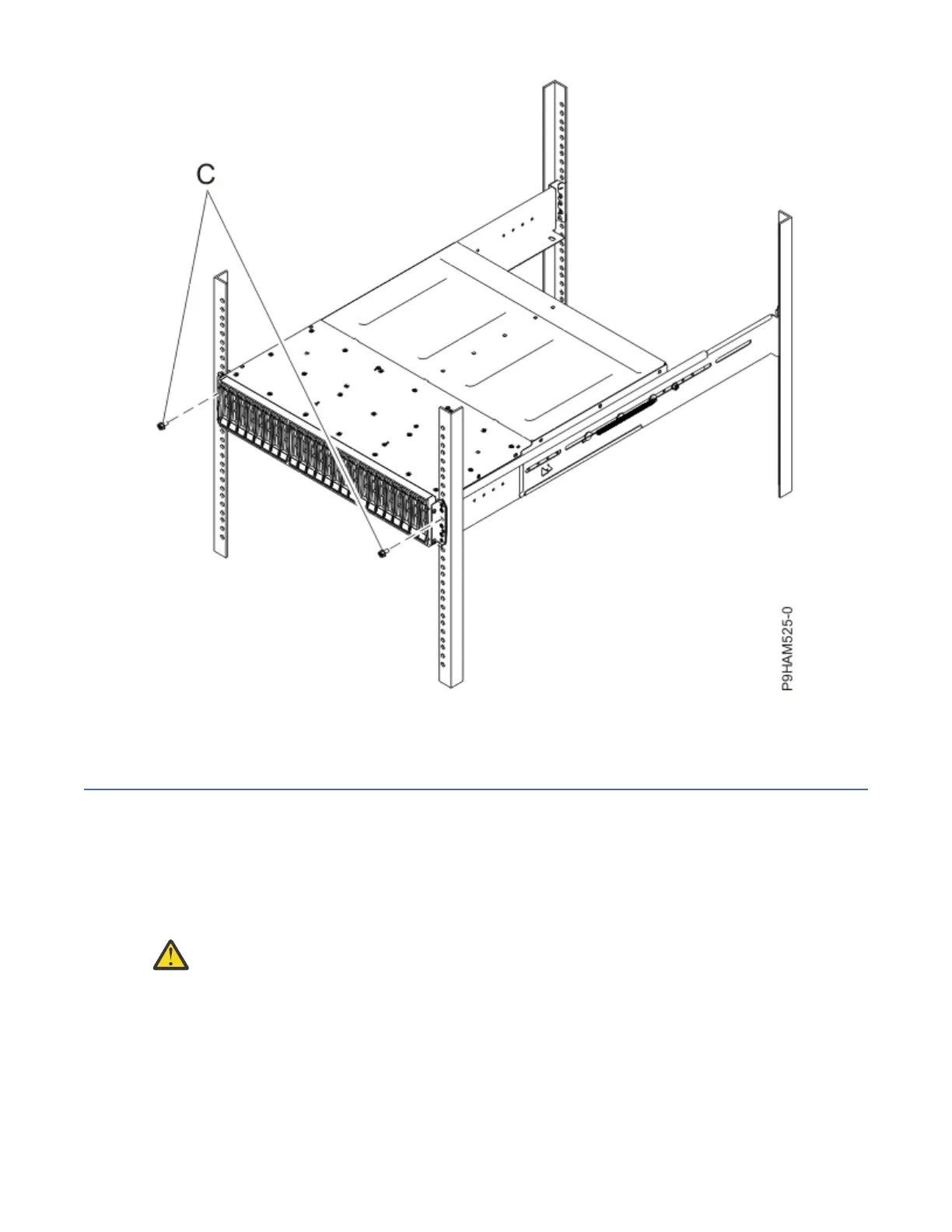

Figure 20. Securing the front of the enclosure to the rack
Optional: Install disk drives or SSDs in the 5887 disk drive enclosure
To install disk drives or solid-state drives (SSDs) into the enclosure, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Remove the drive from the static-protective package.
Attention:
Drives are fragile. Handle with care.
3. With the handle in the unlocked position, support the bottom of the drive as you align it with the guide
rails in the enclosure.
Installing the 5887 disk drive enclosure or setting up a preinstalled 5887 disk drive enclosure
21
