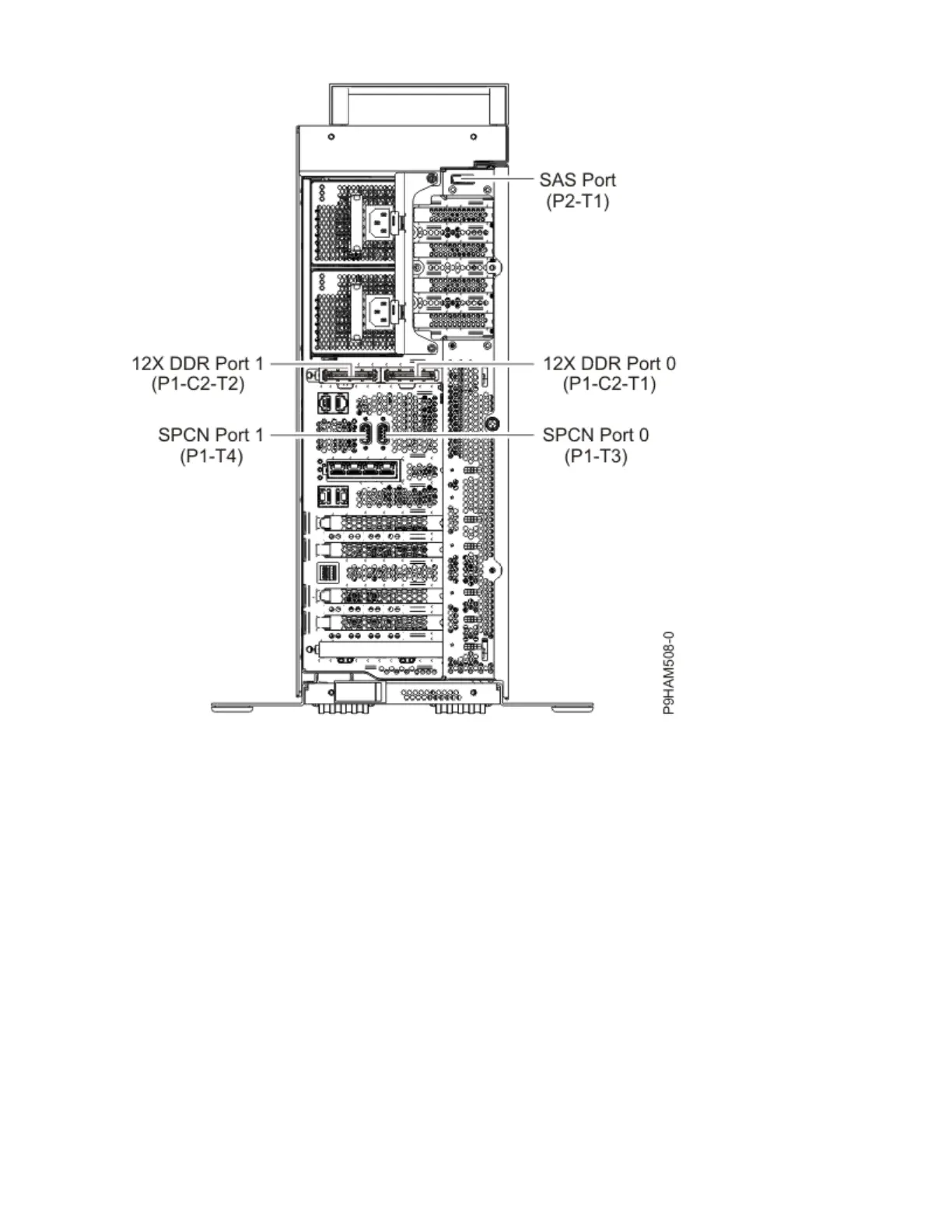

Figure 50. Model 8202-E4B connector locations on a stand-alone model
Model 8202-E4C and 8202-E4D connector locations
Learn about connector locations on rack-mounted models.
The 8202-E4C or 8202-E4D server provides cable connector locations for the following enclosures:
• Support for expansion units, as shown in the following gure, is as follows:
– The card installed in the C1 slot can contain two 12X double data rate (DDR) cable ports. However,
the C1 slot cannot provide both 12X DDR and PCIe cable ports.
– The server contains a serial-attached SCSI (SAS) port.
• Support for disk drive enclosures, as shown in the following gure, is as follows:
– The server contains a SAS port.
• Support for PCIe storage enclosures, as shown in the following gure, is as follows:
– The card installed in the C1 slot can contain two PCIe cable ports. However, the C1 slot cannot
provide both PCIe and 12X DDR cable ports.
– The server contains a SAS port.
Reference information
55
