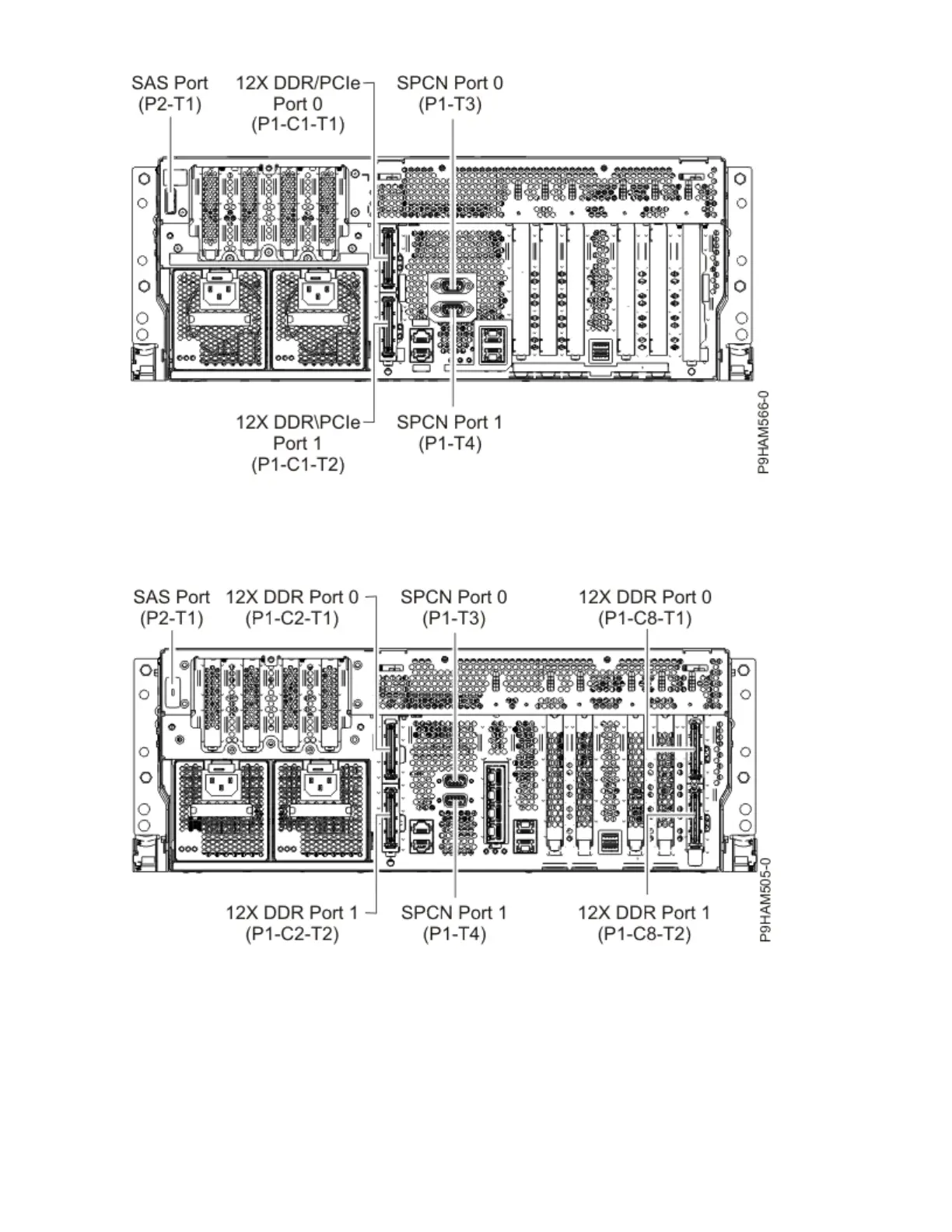

Figure 51. Model 8202-E4C or 8202-E4D connections for expansion units, disk drive enclosures, and PCIe
storage enclosures
Model 8205-E6B connector locations
Learn about connector locations on rack-mounted and stand-alone models.
Figure 52. Model 8205-E6B connector locations on a rack-mounted model
56
Power Systems: Installing the 5887 disk drive enclosure
