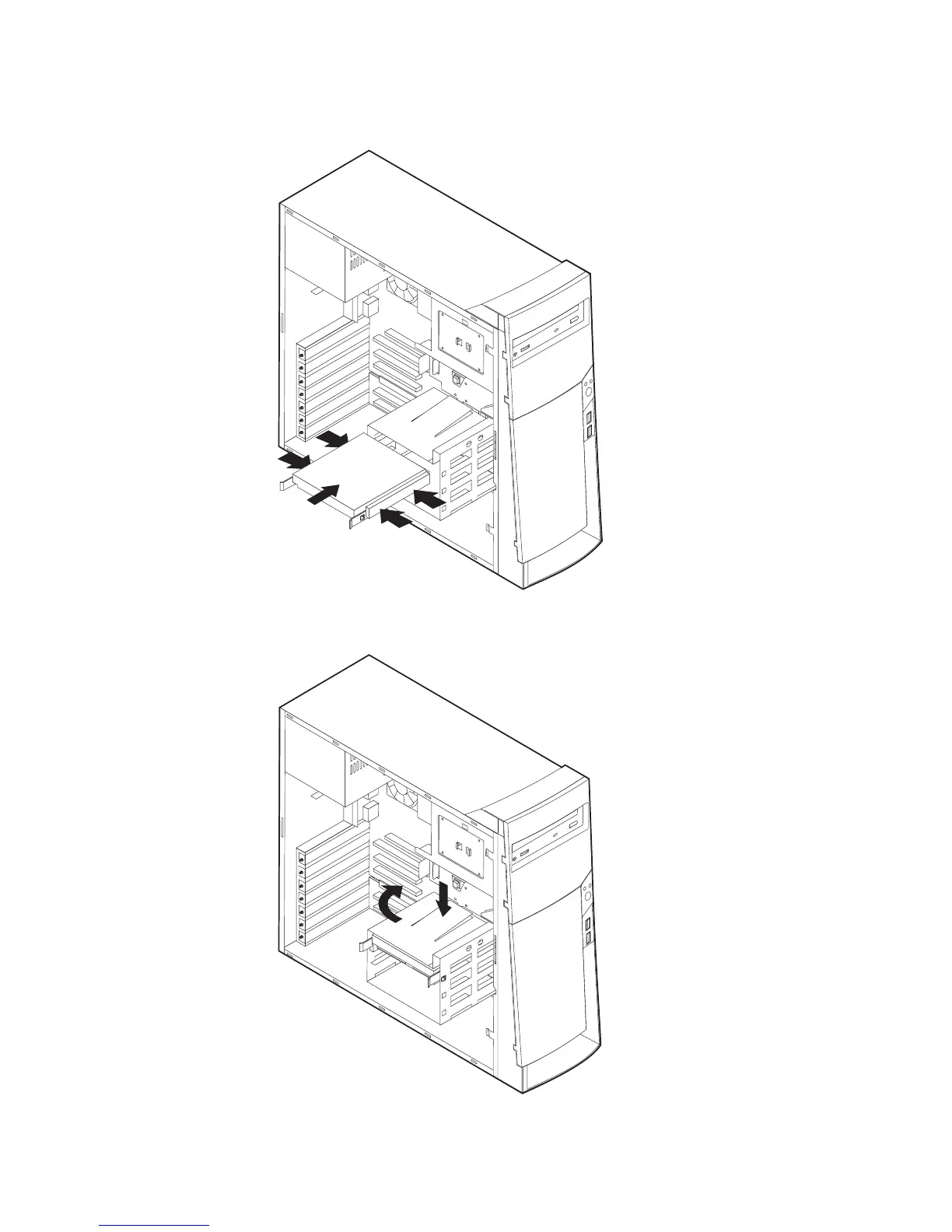

5. Mount DASD rails on the drive you wish to install and slide the drive along
the rail guides into the unoccupied drive bay.
6. Press the tab that holds the cage in the open position and swing the cage back
into operating position.
7. Connect the cables to the drive.
8. Connect the power and signal cables to the drive.
20 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer
