IBM A40I TYPE 2271

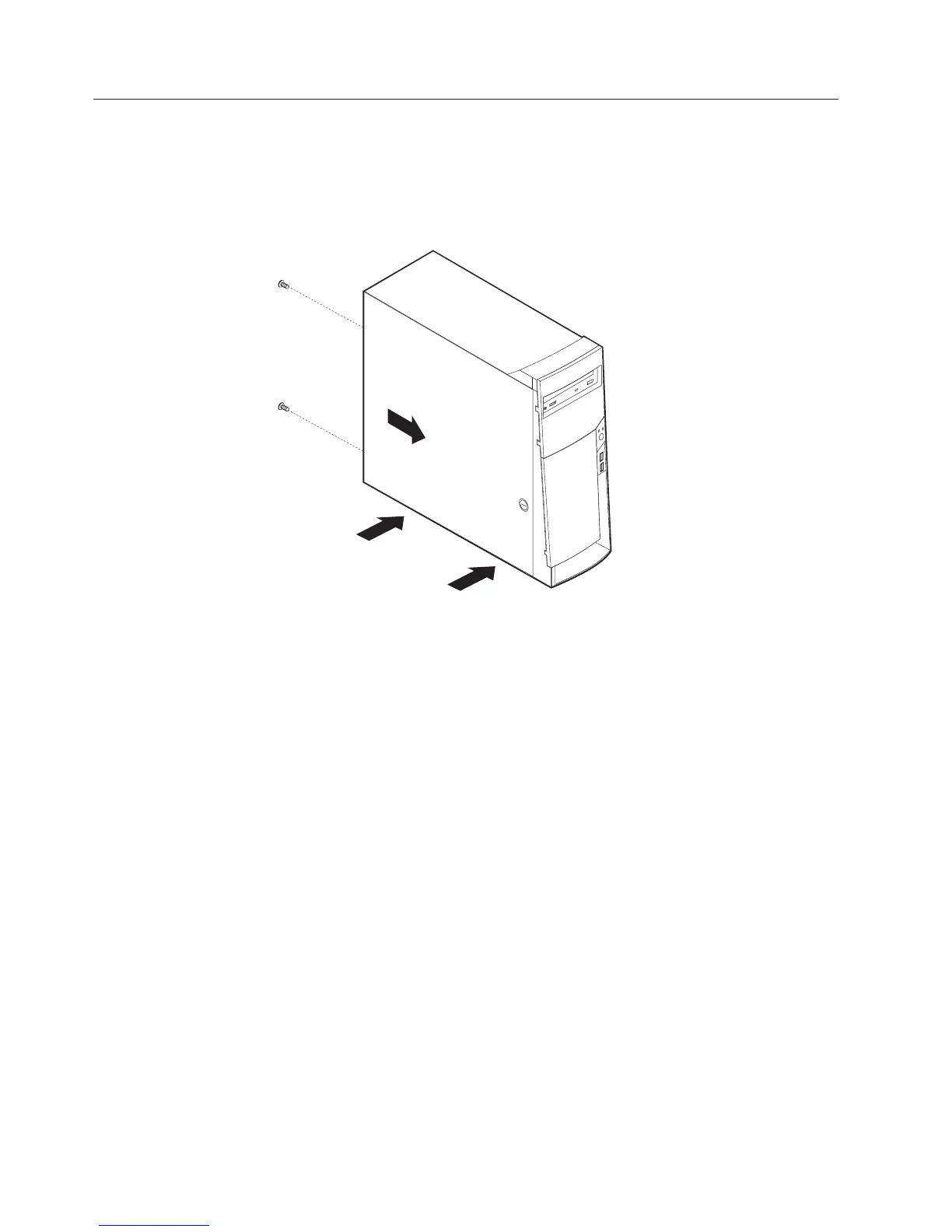

Replacing the cover
1. Position the cover on the chassis, aligning the tabs on the cover with the slots
on the chassis.
2. Slide the cover toward the front bezel of the computer until the cover is fully
closed.
3. Replace the two thumb screws and engage the keylock (if any).
26 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer
