2. Remove the two metal knockouts.

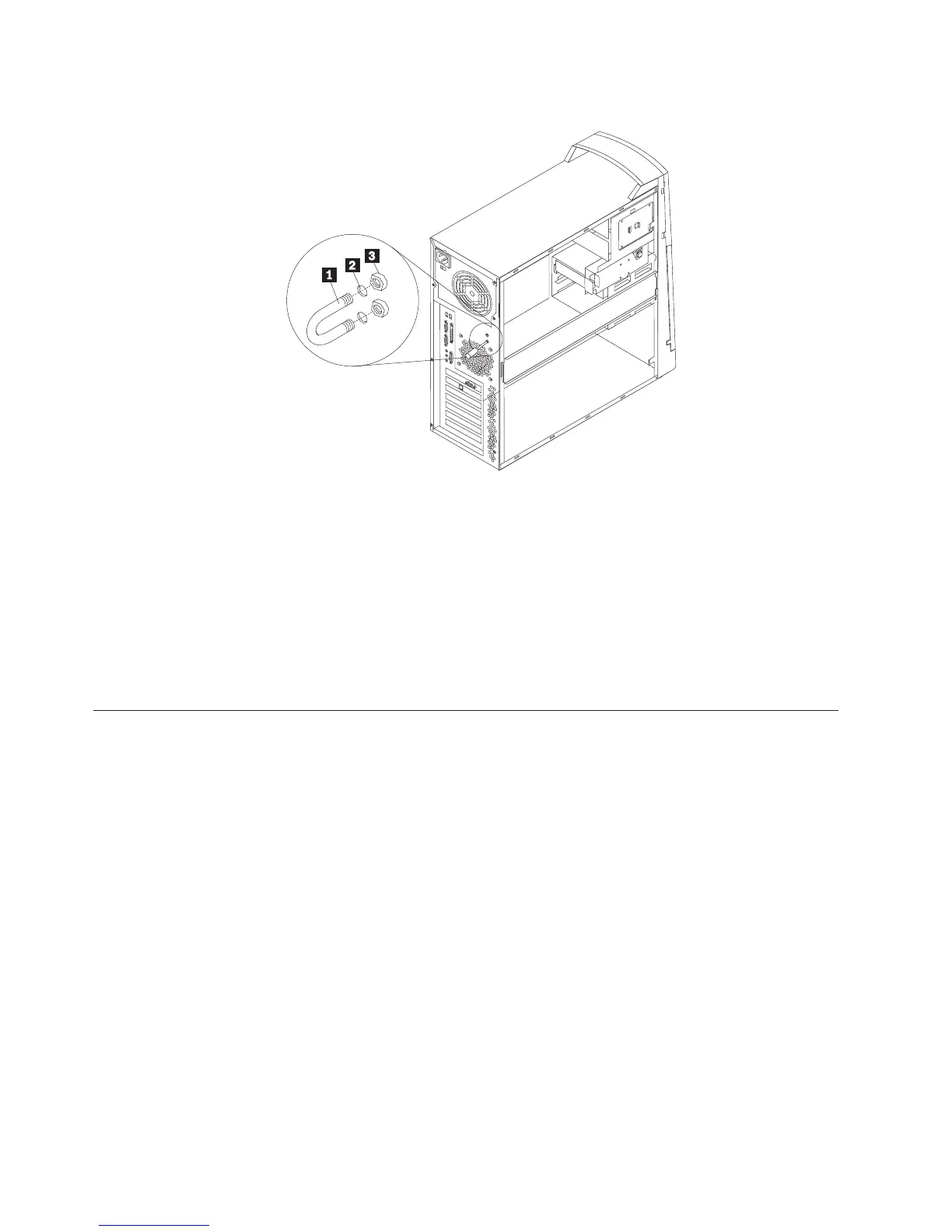

1 U-bolt
2 Bolt holes
3 Nuts
3. Insert the U-bolt through the rear panel. Attach and tighten the nuts with an
appropriately sized or adjustable wrench.
4. Replace the computer cover. See “Replacing the cover” on page 26.
5. Thread the cable through the U-bolt and around an object that is not a part of
or permanently secured to the building structure or foundation, and from
which it cannot be removed; then fasten the cable ends together with a lock.
Installing adapters
Adapter slots
To install an adapter in a PCI or AGP expansion slot, do the following:
1. Remove the cover (see “Removing the cover” on page 15).
22 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer
