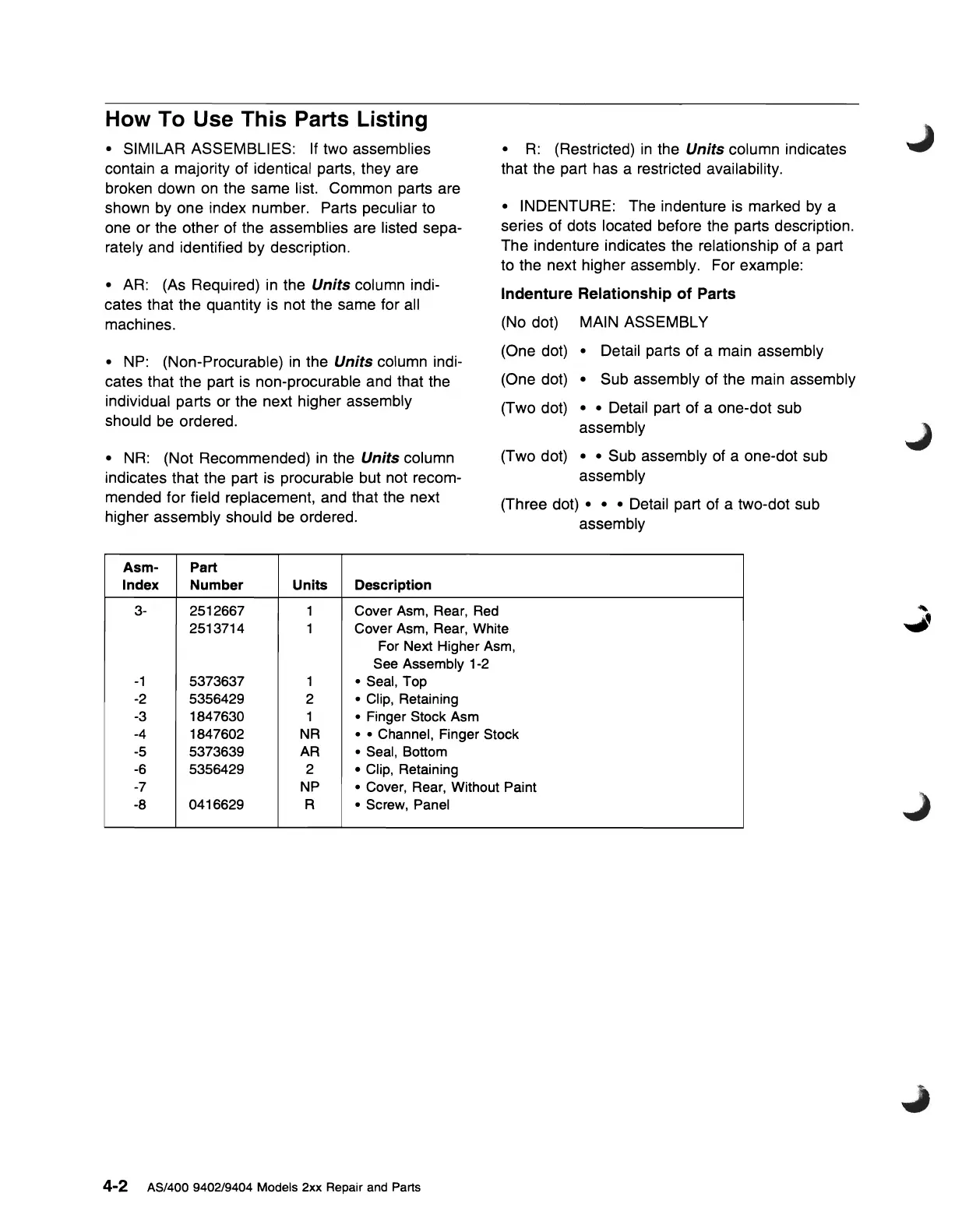

How To Use This Parts Listing
• SIMILAR ASSEMBLIES:
If
two assemblies
contain a majority of identical parts, they are
broken down
on
the same list. Common parts are
shown
by
one index number. Parts peculiar to
one or the other of the assemblies are listed sepa-
rately and identified by description.
•
AR:
(As Required) in the Units column indi-
cates that the quantity is not the same for all
machines.
•
NP:
(Non-Procurable)
in
the Units column indi-
cates that the part
is
non-procurable and that the
individual parts or the next higher assembly
should
be
ordered.
•
NR:
(Not Recommended)
in
the Units column
indicates that the part is procurable but not recom-
mended for field replacement, and that the next
higher assembly should
be
ordered.
Asm-
Part
Index
Number
Units
Description
3-
2512667
1
Cover Asm, Rear,
Red
•
R:
(Restricted)
in
the Units column indicates
that the part has a restricted availability.
• INDENTURE: The indenture
is
marked
by
a
series of dots located before the parts description.
The indenture indicates the relationship of a part
to the next higher assembly. For example:
Indenture
Relationship
of
Parts
(No dot) MAIN ASSEMBLY
(One dot) • Detail parts of a main assembly
(One dot) • Sub assembly of the main assembly
(Two dot) • • Detail part of a one-dot sub
assembly
(Two dot) • • Sub assembly
of
a one-dot sub
assembly
(Three
dot)·
• • Detail part of a two-dot sub
assembly
2513714
1 Cover Asm, Rear, White
For Next Higher Asm,
See Assembly 1-2
-1
5373637 1
• Seal, Top
-2
5356429 2
• Clip, Retaining
-3 1847630 1
• Finger Stock Asm
-4
1847602
NR
• • Channel, Finger Stock
-5
5373639 AR
• Seal, Bottom
-6
5356429 2
• Clip, Retaining
-7
NP
• Cover, Rear, Without Paint
-8
0416629
R
• Screw, Panel
4-2
AS/400 9402/9404 Models 2xx Repair and Parts
