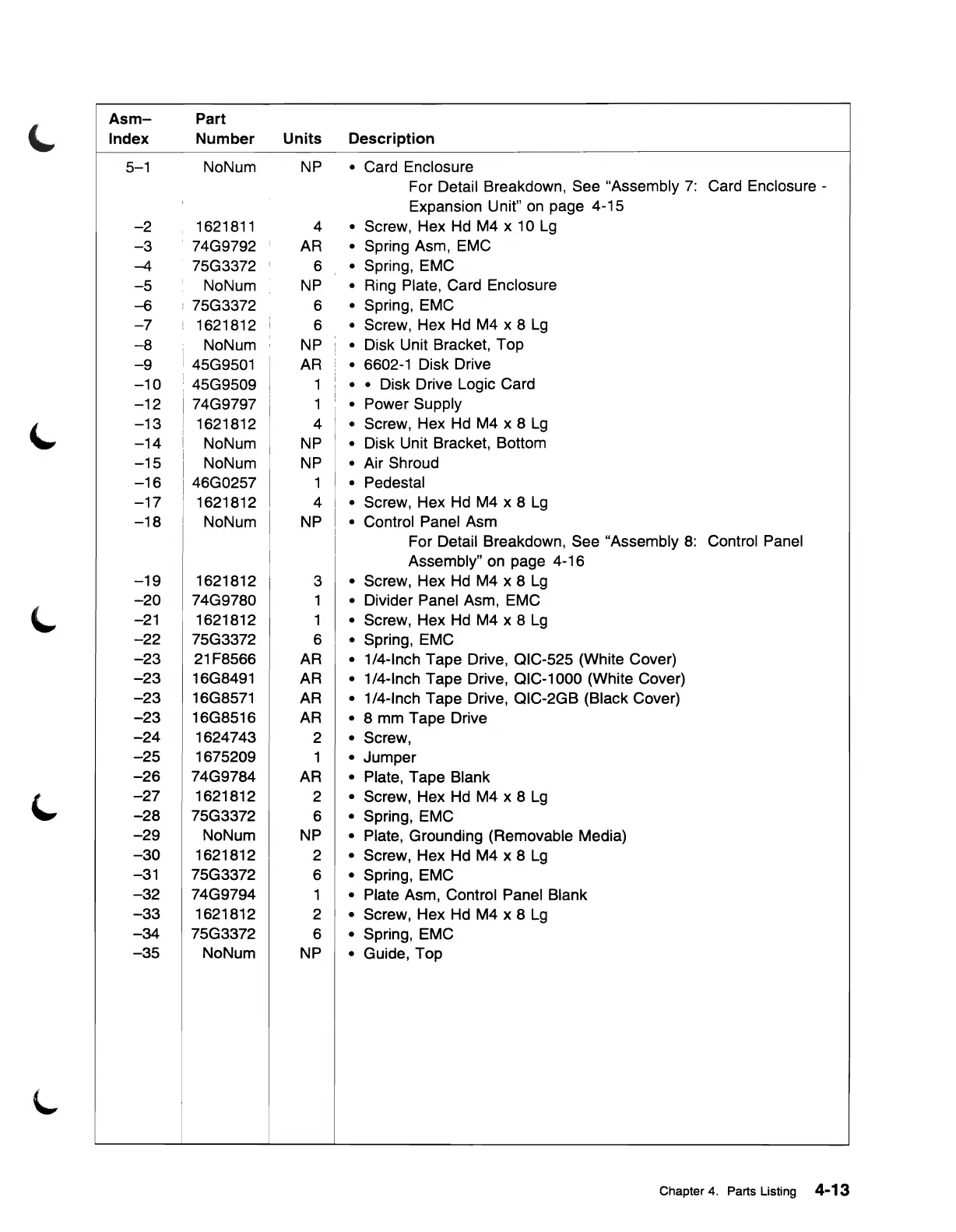

Asm- Part
Index
Number Units
Description
5-1 NoNum NP
• Card Enclosure
For Detail Breakdown, See "Assembly
7:
Card Enclosure -
I
Expansion Unit" on page 4-15
-2 1621811
4
• Screw, Hex Hd M4 x 10 Lg
-3
74G9792
AR
• Spring Asm, EMC
-4 75G3372
6
• Spring, EMC
-5 NoNum
NP • Ring Plate, Card Enclosure
-6
75G3372 6
• Spring, EMC
-7
1621812 6 • Screw, Hex Hd M4 x 8 Lg
-8
NoNum
NP • Disk Unit Bracket, Top
-9 45G9501 AR • 6602-1 Disk Drive
-10
45G9509
1
• • Disk Drive Logic Card
-12 74G9797
1
• Power Supply
-13 1621812
4 • Screw, Hex Hd M4 x 8
Lg
-14
NoNum
NP
I
• Disk Unit Bracket, Bottom
I
-15
NoNum
NP
• Air Shroud
-16
46G0257
I
1
• Pedestal
-17 1621812
I
4
• Screw, Hex
Hd M4 x 8 Lg
I
-18
NoNum
I
NP
• Control Panel Asm
For Detail Breakdown, See "Assembly
8:
Control Panel
I
Assembly" on page 4-16
-19
1621812 3
• Screw, Hex Hd M4 x 8
Lg
-20
74G9780 1
• Divider Panel Asm, EMC
-21 1621812 1
• Screw, Hex Hd M4 x 8
Lg
-22
75G3372 6
• Spring, EMC
-23
21F8566 AR • 1/4-lnch Tape Drive, OIC-525 (White Cover)
-23
16G8491 AR • 1/4-lnch Tape Drive, OIC-1000 (White Cover)
-23
16G8571 AR • 1/4-lnch Tape Drive, OIC-2GB (Black Cover)
-23
16G8516 AR
• 8 mm Tape Drive
-24
1624743 2
• Screw,
-25
1675209 1
• Jumper
-26 74G9784 AR
• Plate, Tape Blank
-27
1621812 2
• Screw, Hex Hd M4 x 8 Lg
-28
75G3372 6
• Spring, EMC
-29 NoNum NP
• Plate, Grounding (Removable Media)
-30 1621812 2
• Screw, Hex Hd M4 x 8
Lg
-31
75G3372 6
• Spring, EMC
-32 74G9794
1
• Plate Asm, Control Panel Blank
-33 1621812
2
• Screw, Hex Hd M4 x 8
Lg
-34 75G3372
6
• Spring, EMC
-35 NoNum
NP
• Guide, Top
Chapter 4. Parts Listing 4-13
