button flashes while the request is being processed and then is lit when the
ownership of the media tray has been transferred to the blade server. It can take
approximately 20 seconds for the operating system in the blade server to recognize
the media tray.
If there is no response when you press the media-tray select button, you can use
the Advanced-Management-Module Web interface to determine whether local
control has been disabled on the blade server.
Note: The operating system in the blade server must provide USB support for the
blade server to recognize and use the removable-media drives.

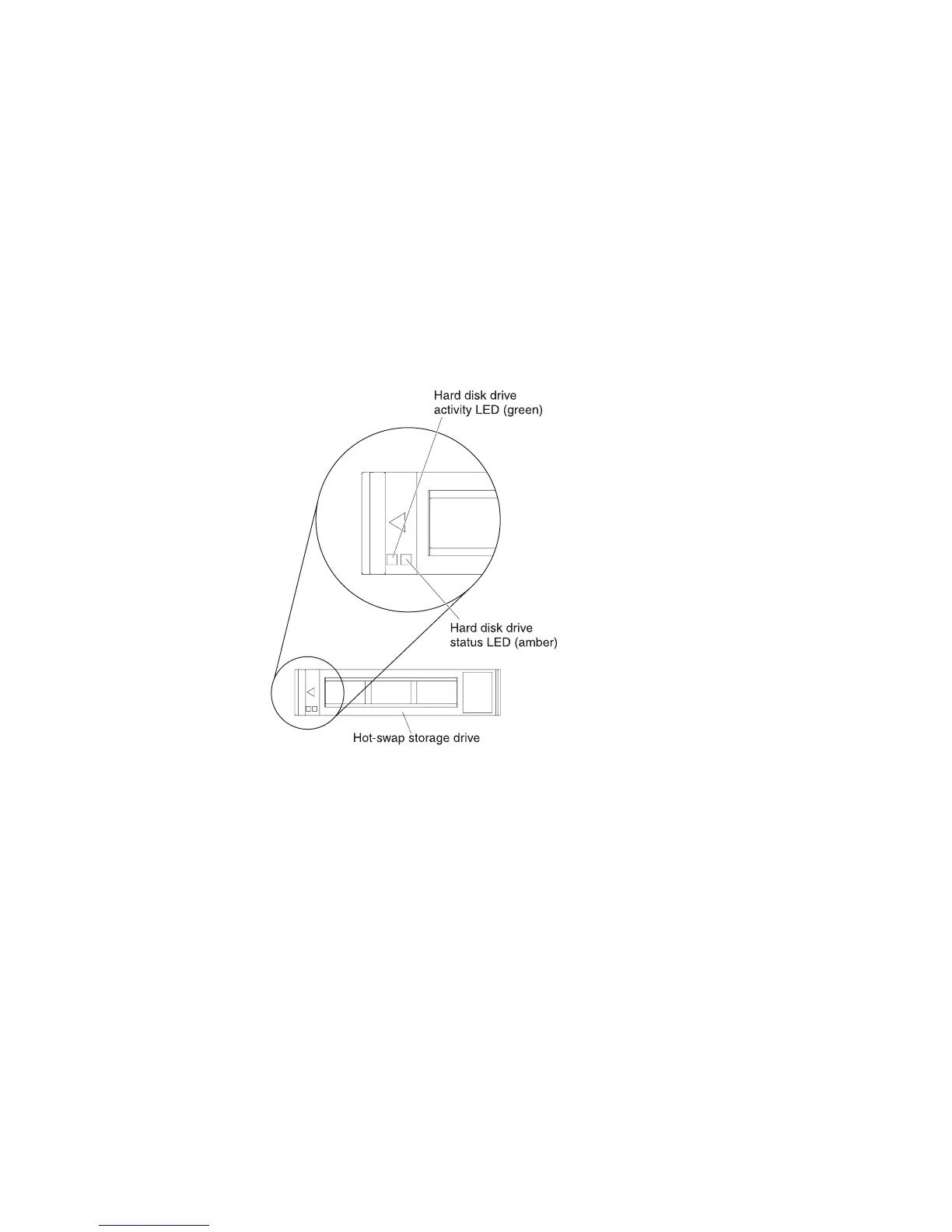

The following illustration identifies the information LEDs on the SAS hot-swap
hard disk drive.
Hard disk drive activity LED (green): When this green LED is lit, it indicates that
there is activity on the storage drive.
Hard disk drive status LED (amber): When this amber LED is lit, it indicates that
an error has occurred with the storage drive. The LED turns off only after the error
is corrected.
Chapter 2. Power, controls, and indicators 17

IBM BladeCenter HS22 Specifications

General

Tcase	76.2 °C
Bus type	QPI
Stepping	B1
FSB Parity	No
Processor code	SLBZ8
Processor cache	12 MB
Processor cores	6
Processor model	E5649
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	12
Processor codename	Westmere EP
Processor frequency	2.53 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	42.5 X 45 mm
Processor front side bus	1333 MHz
Processor boost frequency	2.93 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	SSE4.2
Thermal Design Power (TDP)	80 W
Compatible processor series	Intel® Xeon®
Number of processors installed	1
CPU multiplier (bus/core ratio)	19
Maximum number of SMP processors	2
Physical Address Extension (PAE)	40 bit
Memory types supported by processor	DDR3 800/1066/1333
Memory channels supported by processor	Triple
Memory bandwidth supported by processor (max)	32 GB/s
Maximum internal memory supported by processor	288 GB
HDD size	2.5 \
RAID levels	0, 1
HDD interface	Serial Attached SCSI (SAS)
Total storage capacity	0 GB
Maximum storage capacity	1 TB
Number of HDDs installed	0
Internal memory	12 GB
Memory clock speed	- MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	192 GB
Memory layout (slots x size)	3 x 4 GB
Graphics card	G200eV
Graphics card memory type	GDDR2
Networking features	Gigabit Ethernet
PS/2 ports quantity	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Compatible operating systems	Microsoft Windows RedHat, SUSE, VMware Oracle Solaris
Chassis type	Rack (1U)
Processor ARK ID	52581
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Depth	446 mm
Width	245 mm
Height	29 mm
Weight	5400 g
