Blade server connectors
Use this information to locate blade server system-board components and
connectors for optional devices.

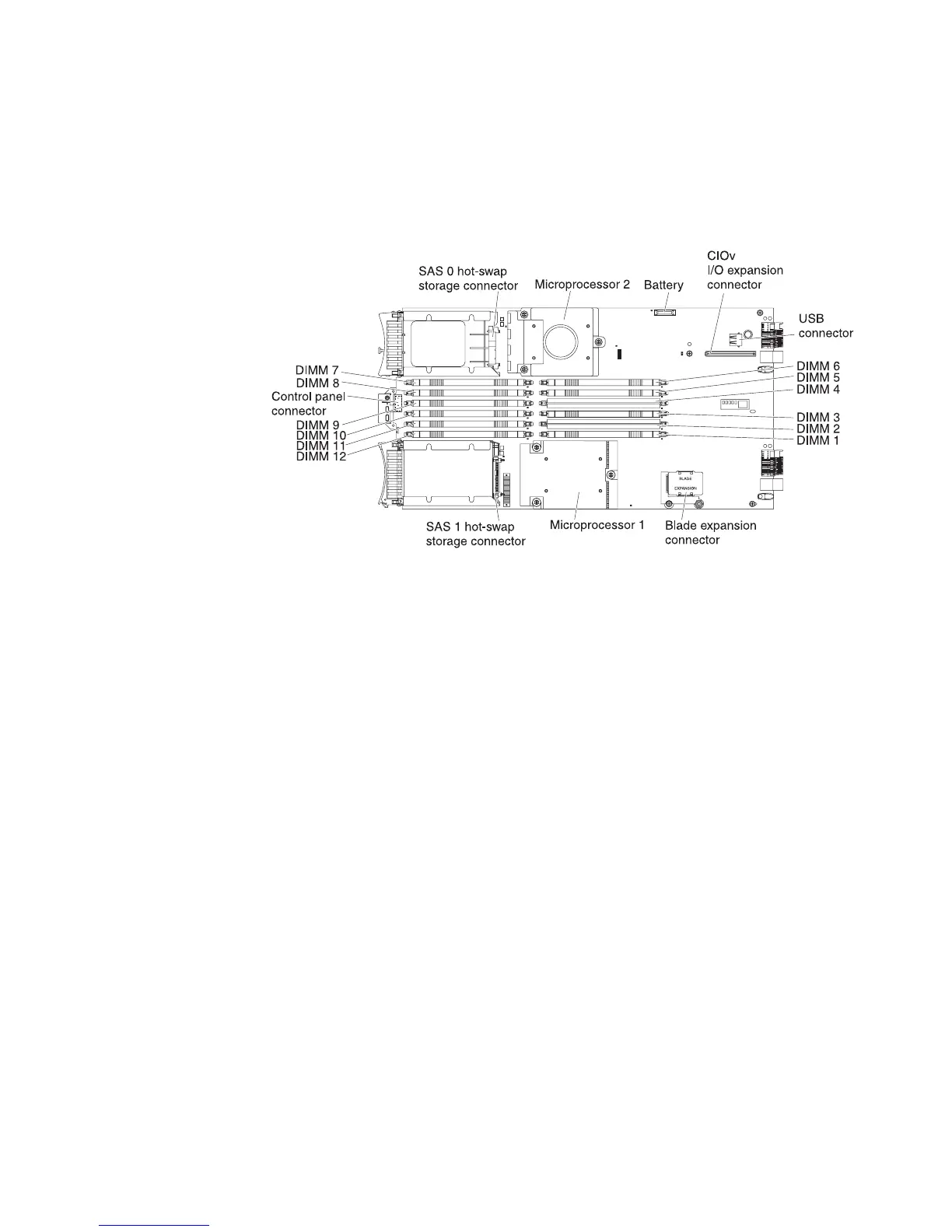

The following illustration shows the system-board components, including
connectors for user-installable optional devices, in the blade server.
Chapter 2. Power, controls, and indicators 19
