11. Install the cover onto the blade server (see “Closing the blade server cover” on
page 50).
12. Install the blade server into the BladeCenter unit (see “Installing the blade
server in a BladeCenter unit” on page 51).
If you have other devices to install or remove, do so now; otherwise, go to
“Completing the installation” on page 49.
Removing a SSD storage drive
Use this information to remove an SSD storage drive.
The blade server has two SSD storage bays. To remove an SSD storage drive,
complete the following steps.

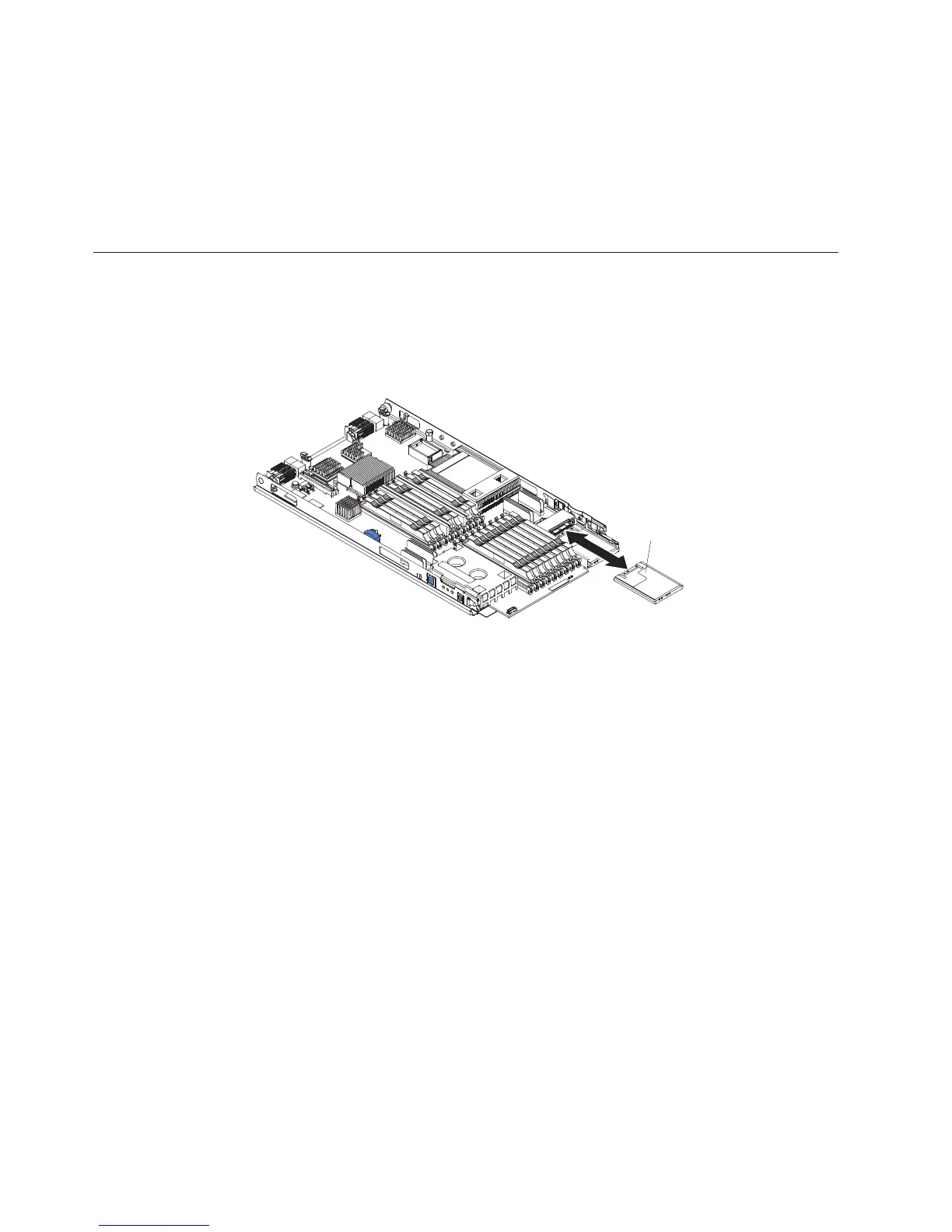

SSD Storage drive
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 19.
2. Remove the blade server from the BladeCenter unit (see “Removing the blade
server from the BladeCenter unit” on page 21).
3. Remove the cover from the blade server (see “Removing the blade server
cover” on page 22).
4. If an expansion unit is installed, remove the expansion unit (see “Removing an
optional expansion unit” on page 24).
5. Remove the front bezel from the blade server (see “Removing the bezel
assembly” on page 28).
Attention: When you remove an SSD drive, use a felt-tip pen to write which
SSD connector the drive was removed from on the drive label. Installing an
SSD drive into a different SSD connector can damage the RAID configuration.
Note: If there is an SSD drive in SSD connector 1, it must be removed before
you can remove the SSD drive in SSD connector 0. SSD connector 1 is on top of
SSD connector 0.
6. Locate the SSD storage drive you want to remove; then, press the release
button to eject the SSD drive (see “Blade server connectors” on page 18).
7. Use your fingers to pull the SSD drive out of the SSD connector.
26 BladeCenter HS22V Type 7871 and 1949: Installation and User's Guide
