Battery
Cable "B"
14. If you have other devices to install or remove, do so now; otherwise, go to
“Completing the installation” on page 49.
Removing a storage interface card
Use this information to remove a storage interface card from the blade server.
The storage interface card controls the SAS storage drives. The following

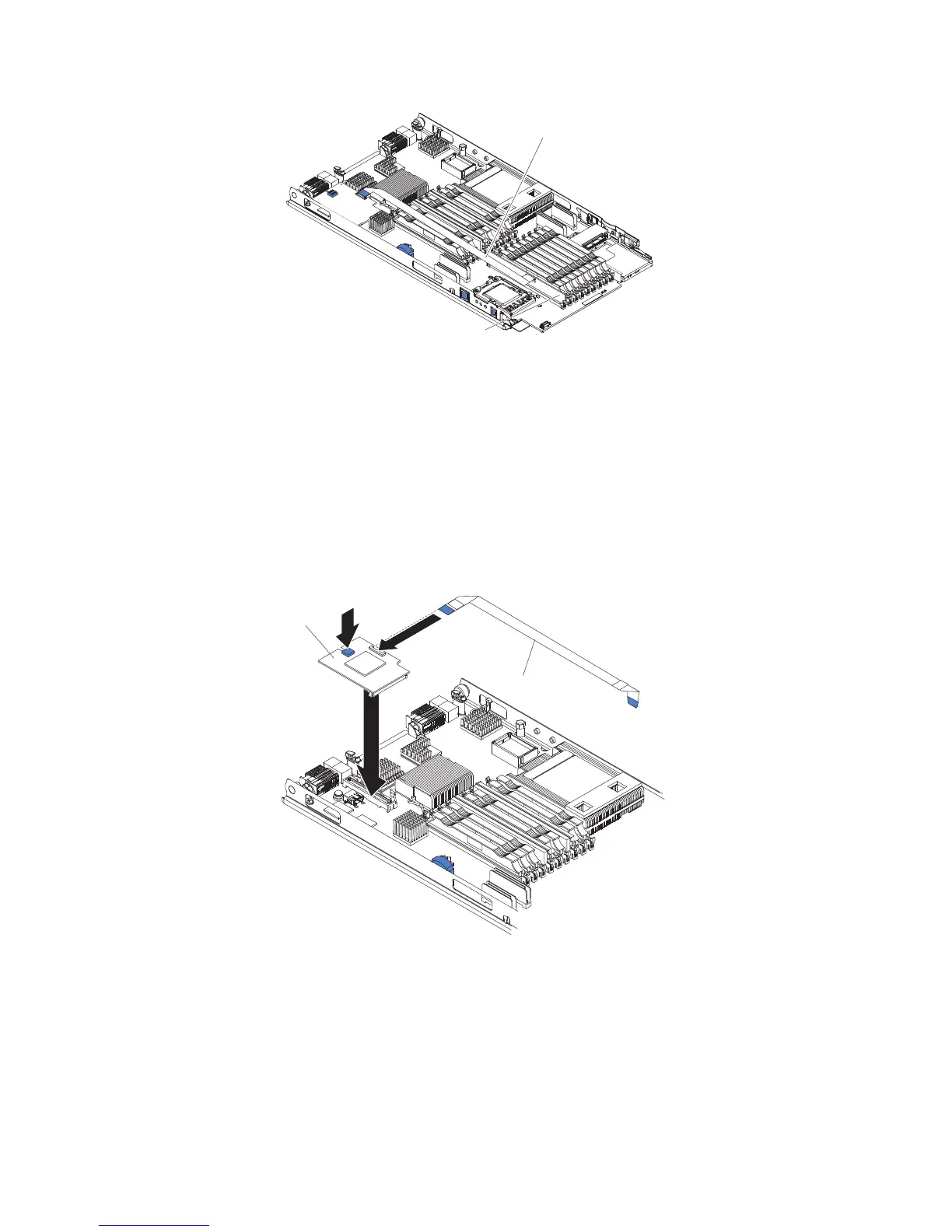

illustrations and installation instructions show how to remove a
ServeRAID-MR10ie CIOv storage interface card from the blade server. The
illustrations and removal instructions are similar for other CIOv storage interface
cards.
ServeRAID
controller
Cable "B "
To remove a storage interface card, complete the following steps.
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 19.
2. If the blade server is installed in a BladeCenter unit, remove it (see “Removing
the blade server from the BladeCenter unit” on page 21 for instructions).
3. Remove the blade server cover (see “Removing the blade server cover” on page
22 for instructions).
4. If an optional expansion unit is installed, remove the expansion unit (see
“Removing an optional expansion unit” on page 24). The storage-interface-card
44 BladeCenter HS22V Type 7871 and 1949: Installation and User's Guide
To Next Page
