2. If the blade server is installed in a BladeCenter unit, remove it (see
“Removing the blade server from the BladeCenter unit” on page 21 for
instructions).
3. Remove the blade server cover (see “Removing the blade server cover” on
page 22 for instructions).
4. If an optional expansion unit is installed, remove the expansion unit (see
“Removing an optional expansion unit” on page 24).
5. Locate the CIOv expansion connector (see “Blade server connectors” on page
18).
6. Touch the static-protective package that contains the storage interface card to
any unpainted metal surface on the BladeCenter unit or any unpainted metal
surface on any other grounded rack component; then, remove the storage
interface card from the package.
7. If an interposer card is installed on the storage interface card, remove it.
a. If the interposer has a pull strap, move the pull strap away from the
storage interface card. If the pull strap surrounds the storage interface
card, the pull strap will interfere with the removal of the interposer card.

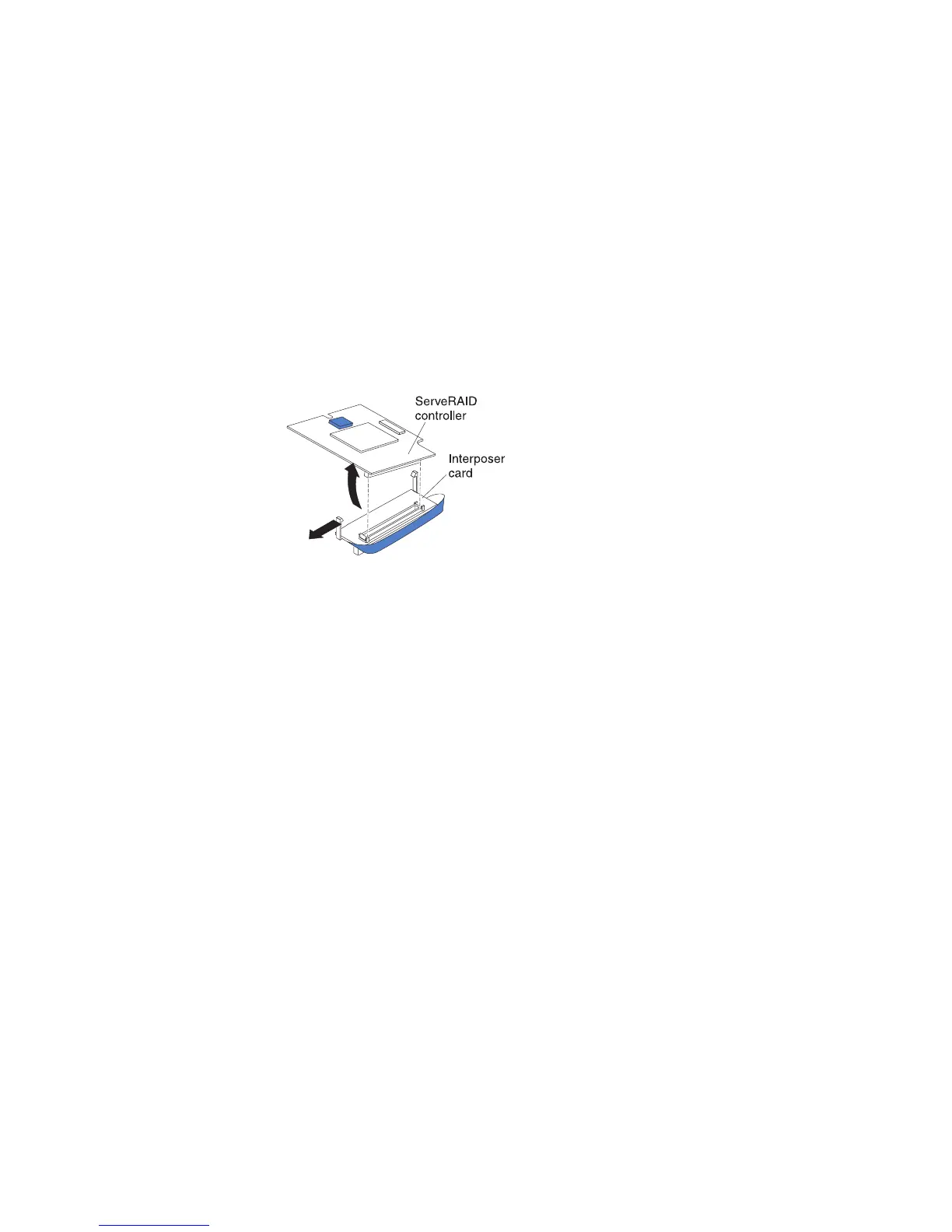

b. Press out on the plastic latch that holds the interposer card to the storage
interface card and simultaneously lift up on the controller, as shown.
c. Separate the interposer card from the storage interface card and store the
interposer card in a safe place.
8. Install the backup-battery cable to the storage interface card.
a. If you are installing a ServeRAID-MR10ie controller, select cable "B" from
the packaging.
b. Locate the end of the cable marked “EXPANSION CARD”; then, with the
blue side of the cable end facing up, carefully insert the cable end into the
cable connector on the ServeRAID controller.
42 BladeCenter HS22V Type 7871 and 1949: Installation and User's Guide
