T
e
m
p
l
a
t
e

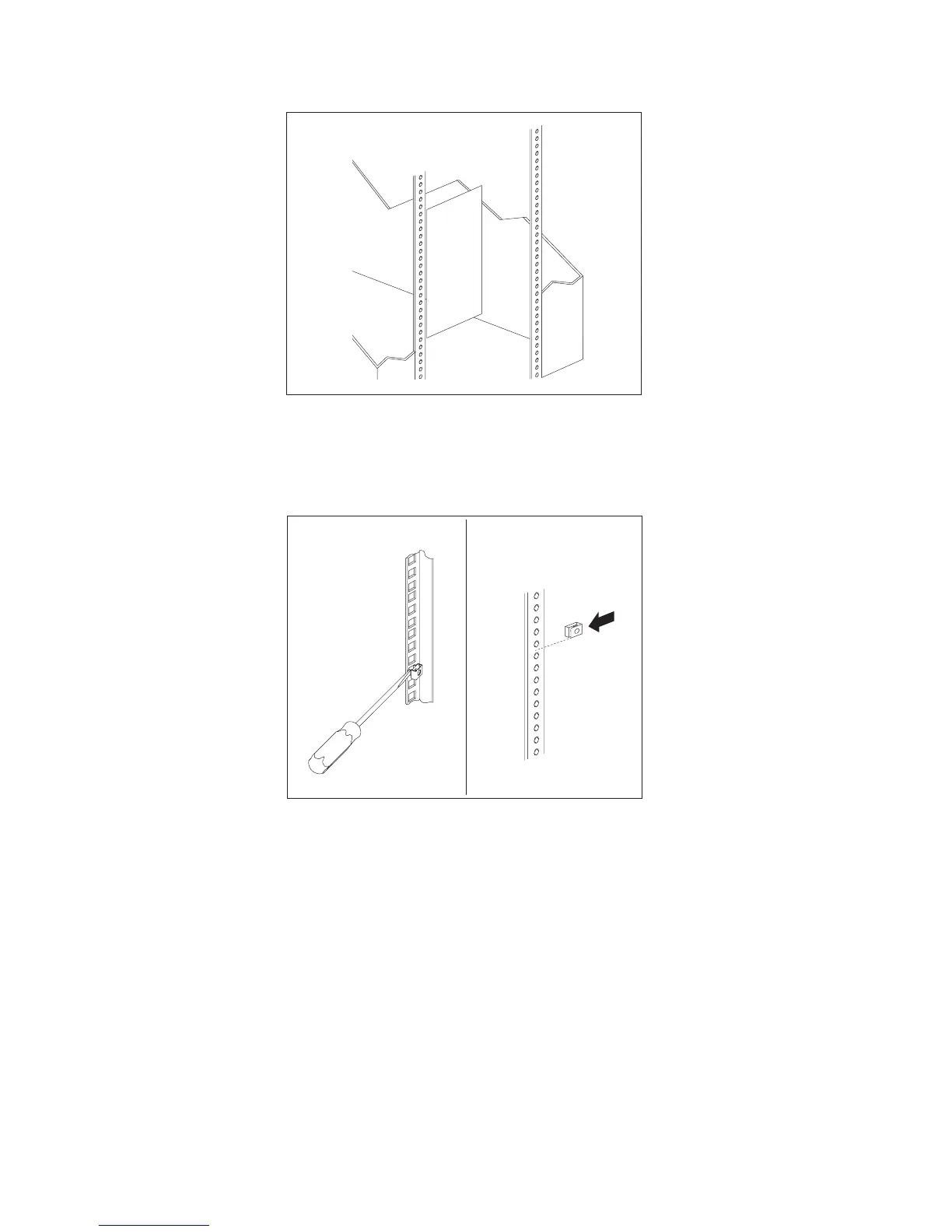

4. Use a screwdriver to install the cage nuts or the clip nuts, as required for your
rack, in the locations that are indicated on the template.
Note: For racks with square holes, use the cage nuts. For racks with round
holes, use the clip nuts.
Cage
nut
Clip
nut
5. Before you install the rails in the rack, fully extend each rail. A set of rail pins
and a mounting flange are on each end of the rail. Retract the rail pins by
pressing in the rail latch 1 and then pulling the finger pull 2 toward the
center of the rail.
34 BladeCenter S Type 7779/8886: Installation and User's Guide
