Mounting flange

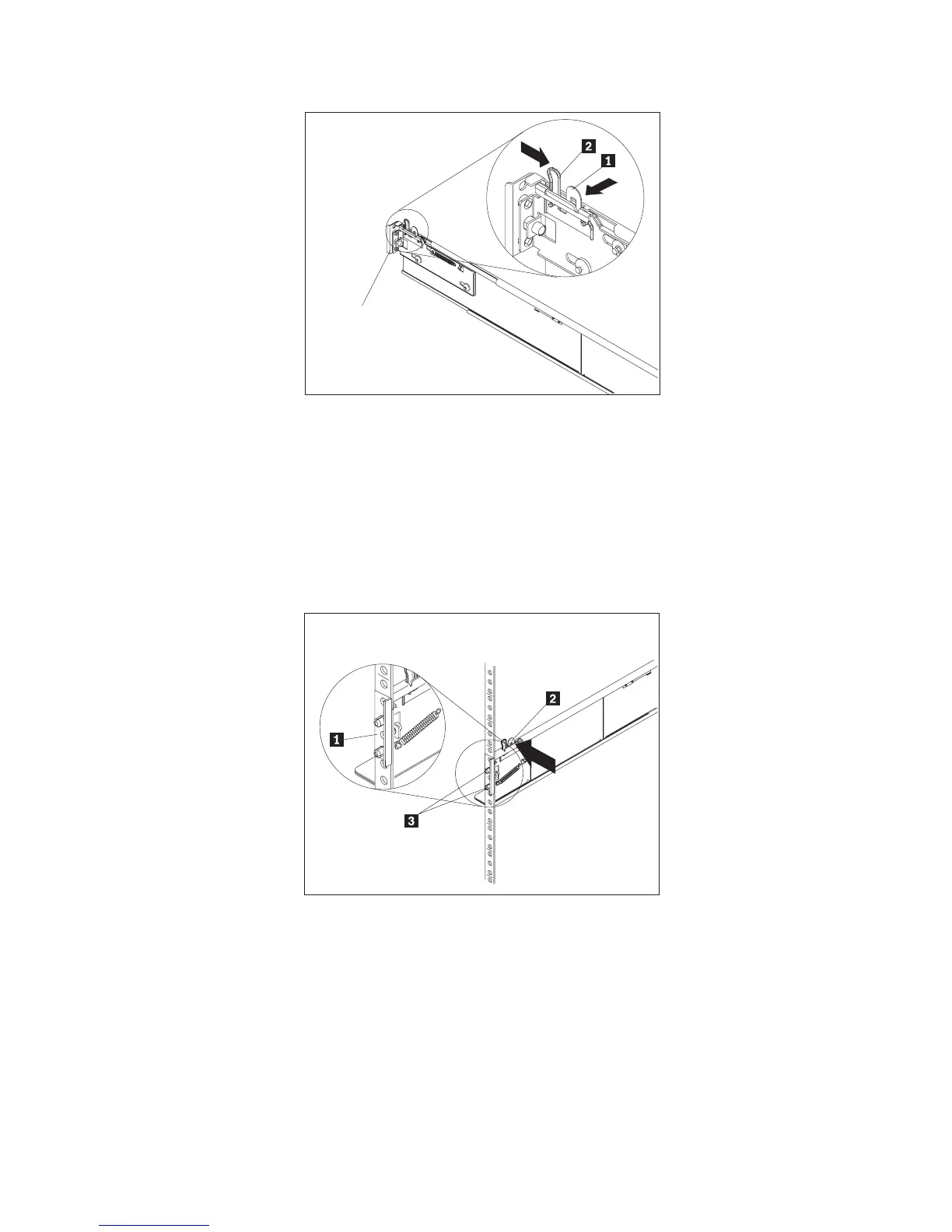

6. Pull each end of the rail away from its center until the rail is fully extended. A
locking mechanism prevents the rail from being extended too far.
7. Position the rail in the desired location on the rack and align the pins on each
end of the rail with the applicable holes on the rack 1. Release the rail
latches and finger pulls 2 on each end to allow the rail pins to pass through
the rail and the mounting flange 3. Repeat steps 5 through 7 for the other
rail.
Note: Make sure that the rail pins protrude through the mounting flanges and
the rack cabinet rails.
8. Remove the two blue shipping screws from each side of the BladeCenter S
chassis.
Chapter 2. Installing the BladeCenter S Types 7779 and 8886 35
