5
Install a new drive as Master
The following steps install the IBM Deskstar as the only drive in a system without a Windows
operating system.
Begin the hardware install
1. Turn off your computer system.
2. Remove cover as instructed by your computer system manual.
3. Discharge static electricity by touching an unpainted metal
surface on your computer chassis with one hand. Touch the
ESD bag with the other hand. Remain in contact with the
chassis and the bag for at least two seconds.
4. Unplug your computer.
5. If replacing a drive or replacing a cable with a 40-pin, 80-
conductor ATA/IDE cable, remove it. Store the drive or cable
in a safe place in case it should be needed again.
Configure the jumper settings
1. Remove the drive from its ESD bag.

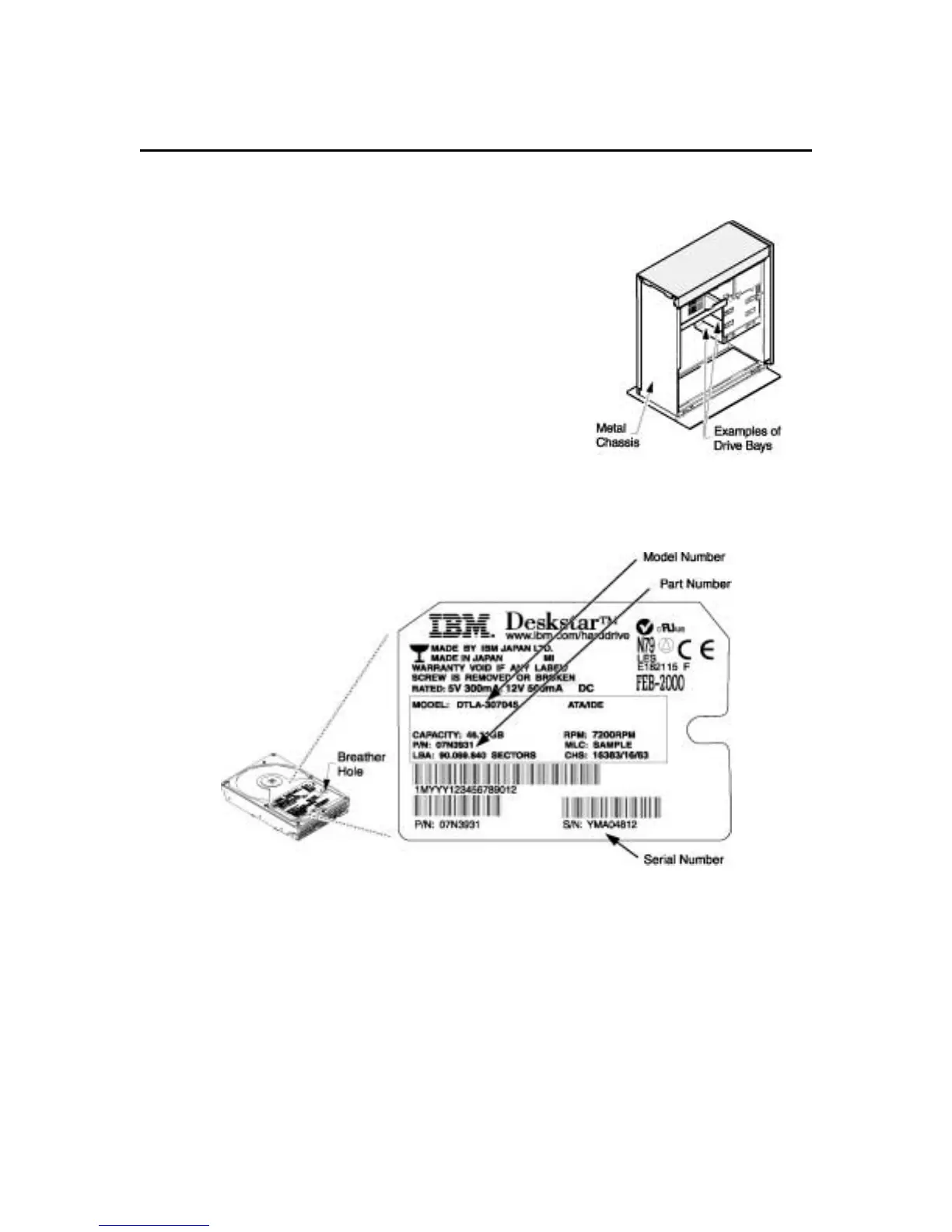

2. Record the serial number, part number, and model number on a separate sheet of paper for future
reference.
Note: Placement of model, part, and serial numbers may vary.
To Next Page
