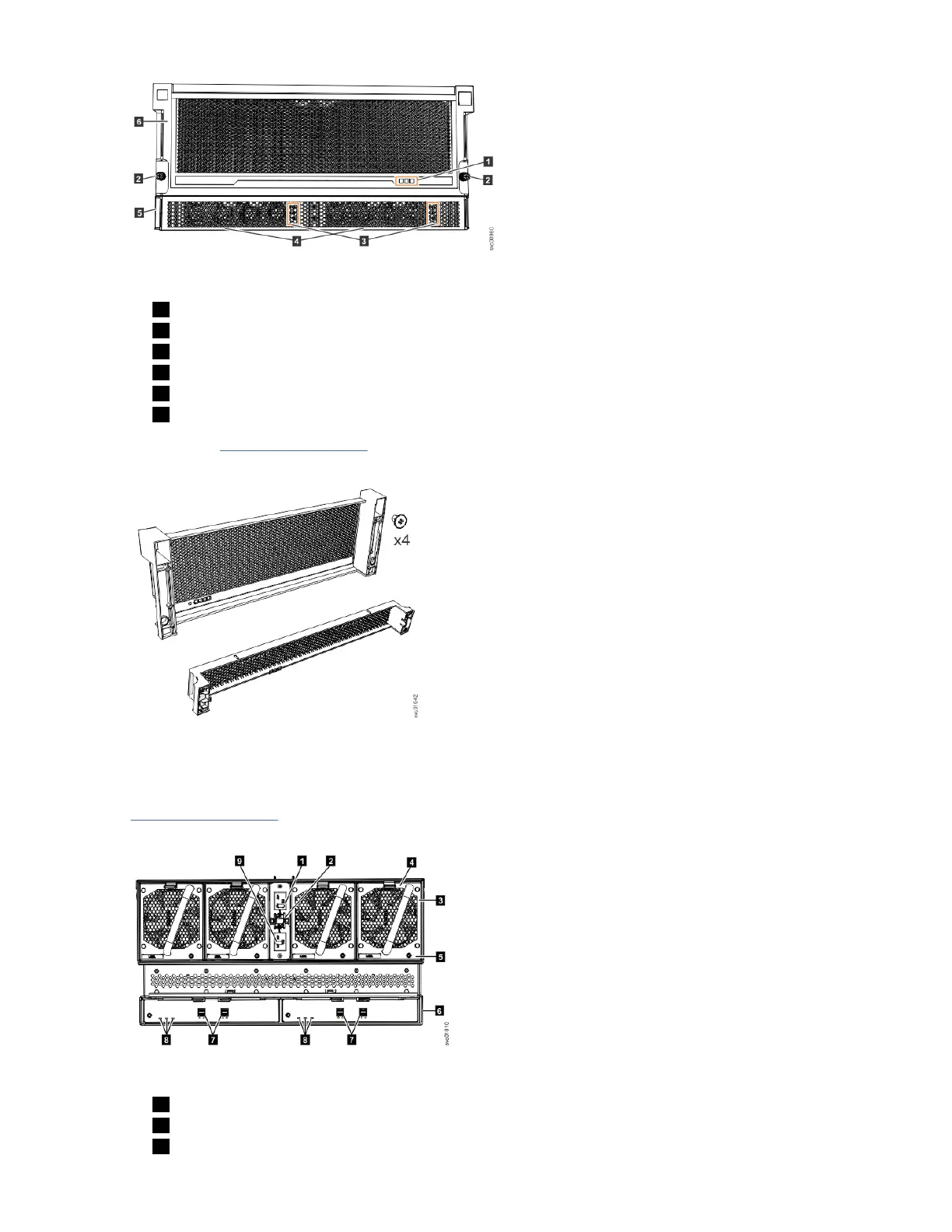

Figure 15. Features on the front of the 5U expansion enclosure
1 Display panel indicators
2 Rack retention thumb screws
3 Power supply unit indicators
4 Power supply units (PSUs)
5 PSU fascia (1U)
6 Front fascia (4U)
However, as Figure 16 on page 38 shows, the 4U and 1U fascias are packaged separately. You must
attach them to the front of the 5U expansion enclosure as part of the initial installation process.
Figure 16. Front fascia of the 5U expansion enclosure
Components on the rear of the enclosure
Figure 17 on page 38 shows the components on the rear of the 5U expansion enclosure. Four fan
modules and two expansion enclosures are accessible from the back of the enclosure.
Figure 17. Features on the rear of the 5U expansion enclosure
1 Power cable connector for PSU 2
2 Power cable retention clamps
3 Fan module
38
IBM FlashSystem 5000 : FlashSystem 5000 Quick Installation Guide
