IBM Power System 9009-41A User Manual

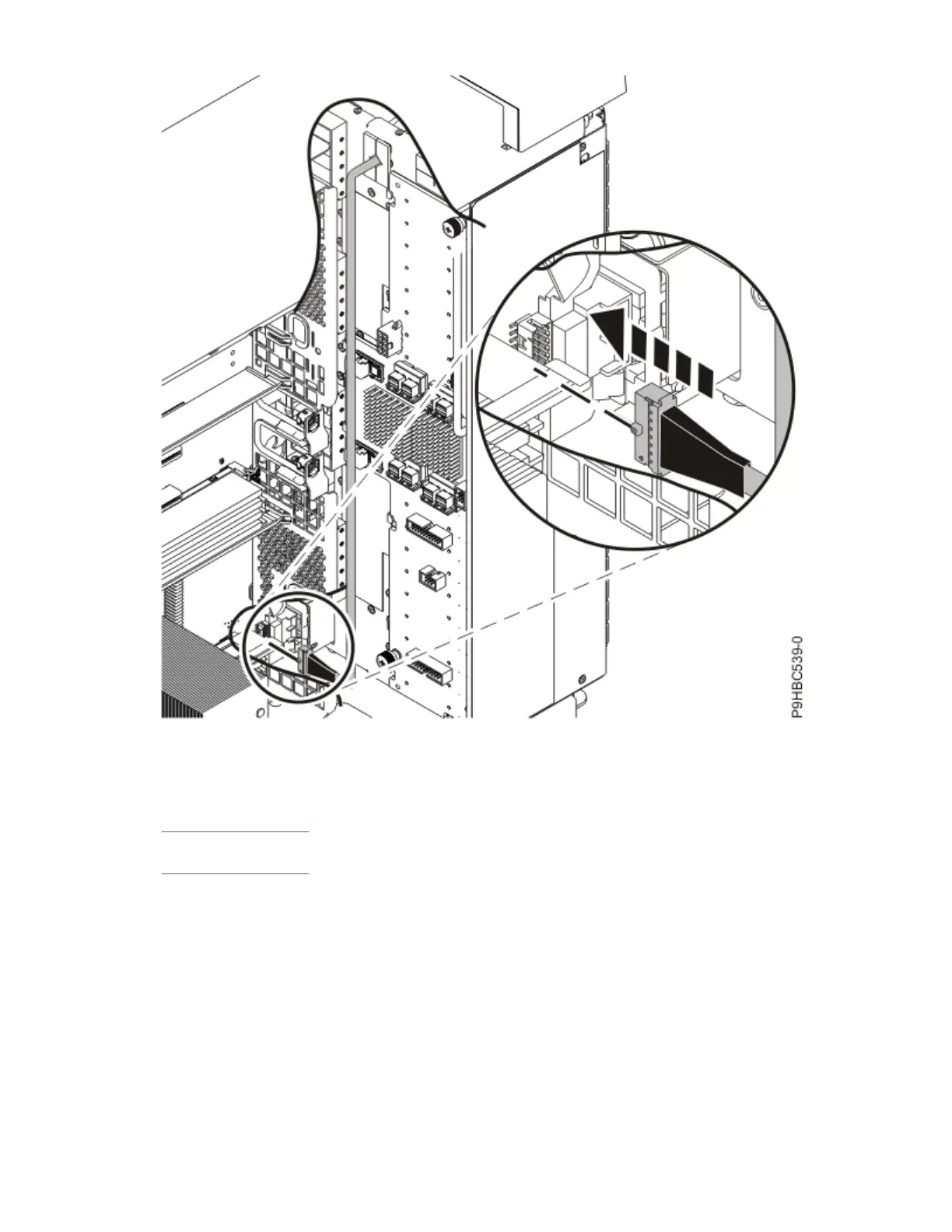

Figure 82. Connecting the control panel cable to the system backplane for a stand-alone system
9. If you removed any drives while replacing the control panel cable, using your labels, replace the
drives.
10. For a rack-mounted system, replace the air baffle (A) straight down into the chassis as shown in
Figure 83 on page 87.
For a stand-alone system, replace the air baffle (A) straight into the side of the chassis as shown in
Figure 84 on page 88.
Ensure that the front flap tucks under the front chassis.
86
Power Systems: Power Systems: Control panel

IBM Power System 9009-41A Specifications

General

Processor	POWER9
Memory slots	16
Form factor	4U
Operating systems supported	AIX, IBM i, Linux
Processor cores	4
Processor threads	32
Processor speed	2.8 GHz
Maximum memory	1024 GB
Storage	SAS SFF Gen3 HDD/SSD, NVMe SSD
