Control panel and control panel display for the

9009-41A, 9009-42A, or 9223-42H

Find information about removing and replacing the control panel and control panel display for the IBM

Power

System S914 (9009-41A), IBM Power System S924 (9009-42A), or IBM Power System H924

(9223-42H) server.

Figure 1 on page 1 and Figure 2 on page 2 show the control panel (A) and the control panel display

(B).

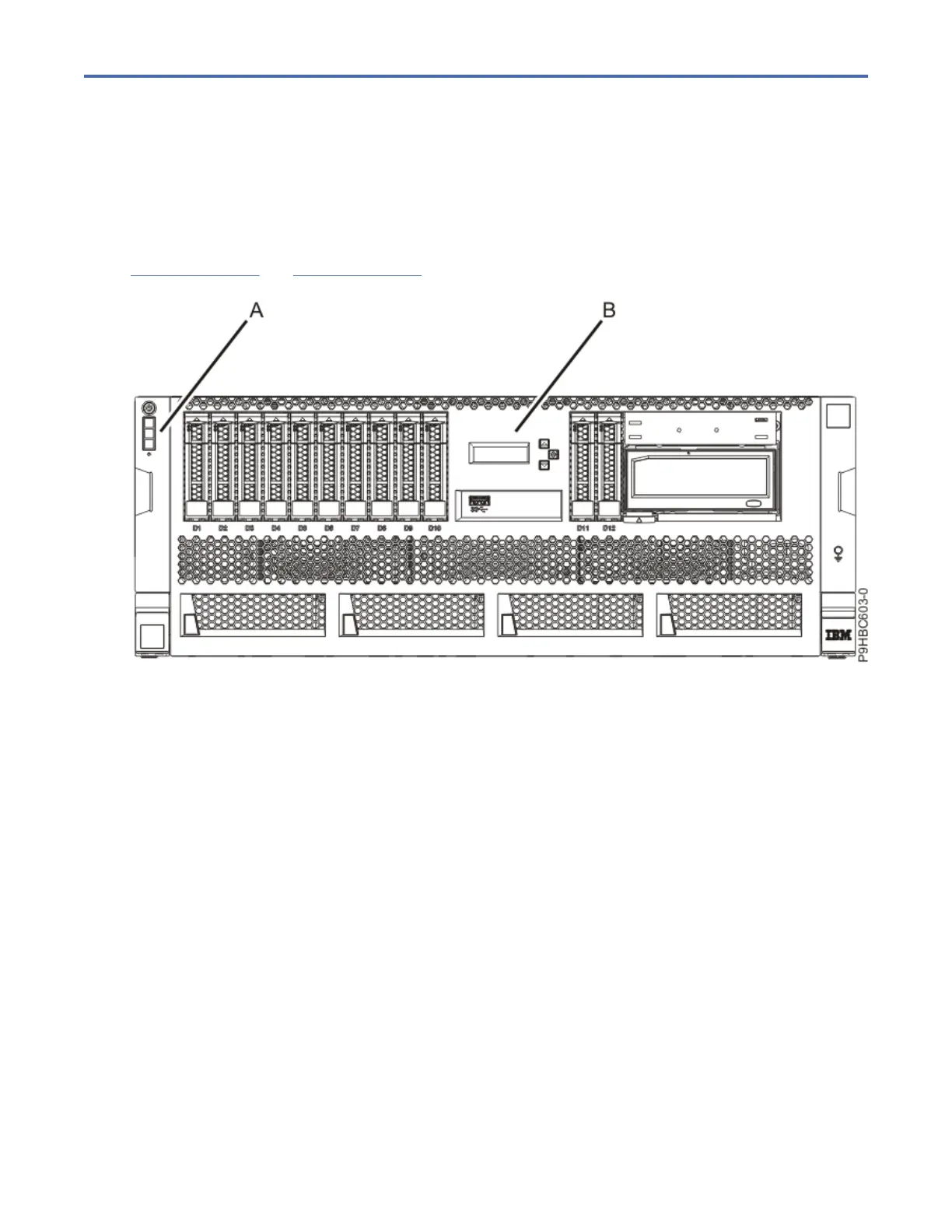

Figure 1. Control panels in the rack-mounted system
