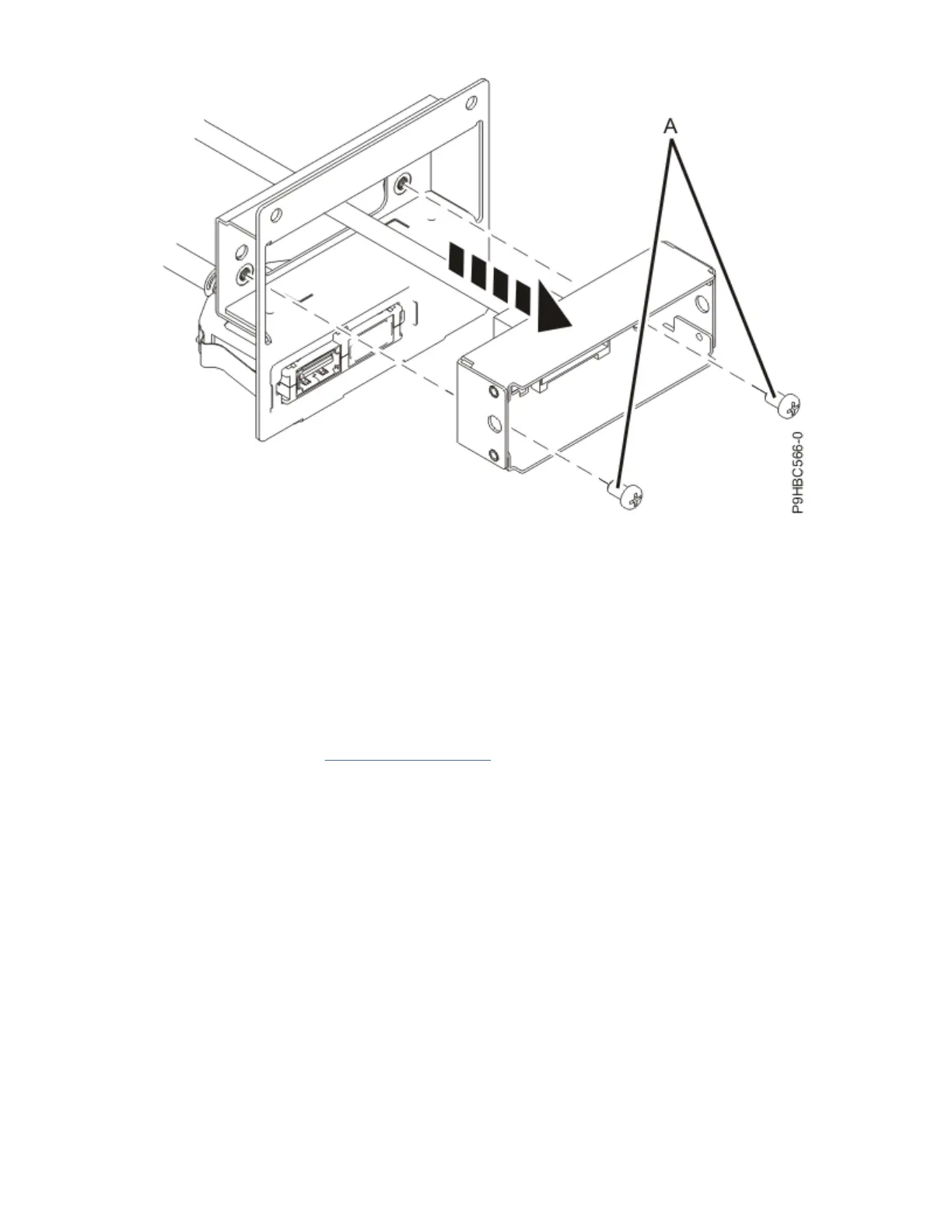

Figure 115. Removing the control panel display cable from the housing for a rack-mounted system

Replacing the control panel display cable in the 9009-41A, 9009-42A, or 9223-42H

system

To replace a control panel display cable, complete the steps in this procedure.

Procedure

1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged

into a ground jack or connected to an unpainted metal surface. If not, do so now.

2. For the rack-mounted system, install the control panel display cable to the housing using the two

screws (A) as shown in Figure 116 on page 121

120

Power Systems: Power Systems: Control panel
