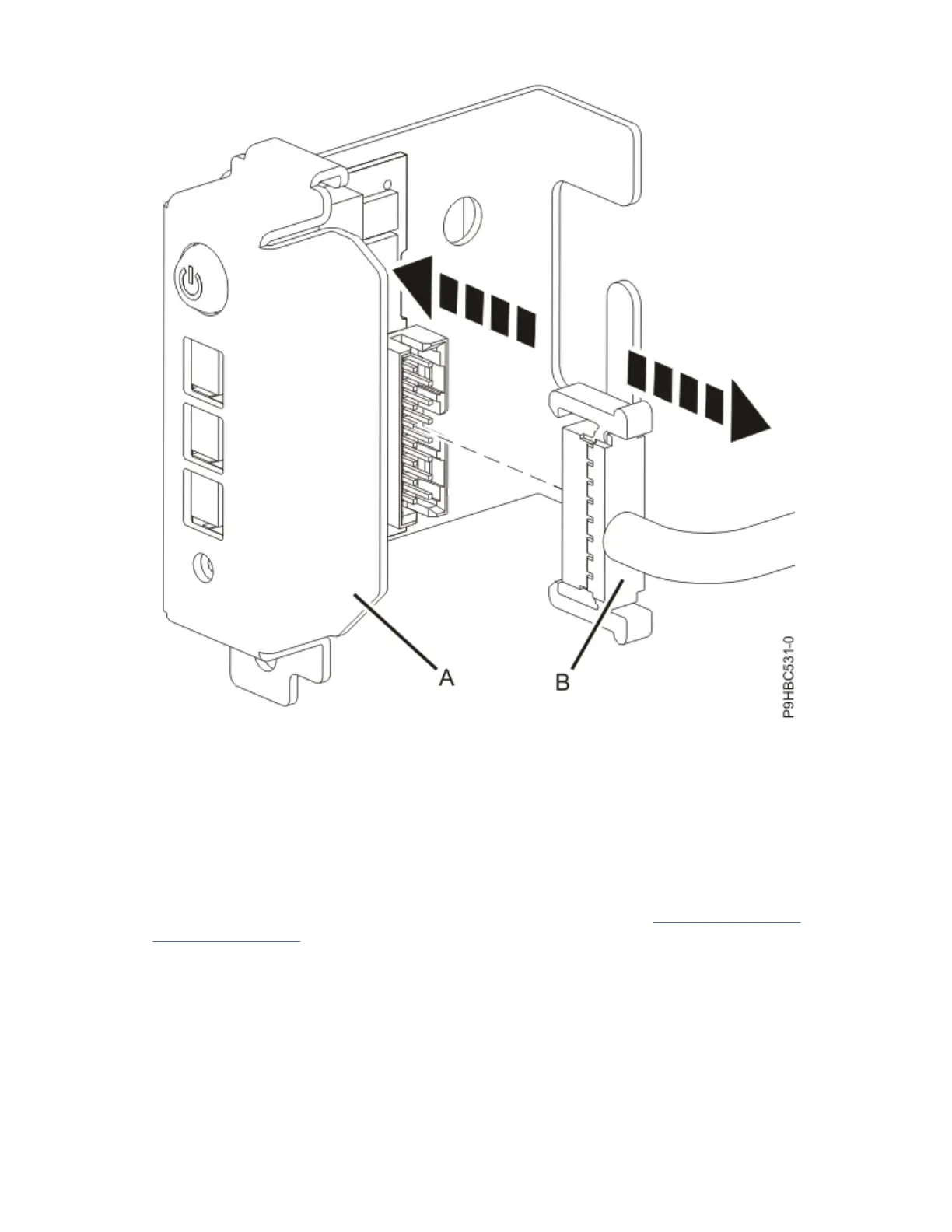

Figure 20. Disconnecting the control panel from the cable for a stand-alone system
Replacing the control panel from the 9009-41A, 9009-42A, or 9223-42H system
To replace a control panel, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Connect the control panel (A) to the control panel cable (B) as shown in Figure 21 on page 23
or
Figure 22 on page 24.
22
Power Systems: Power Systems: Control panel

IBM Power System 9009-41A Specifications

General

Processor	POWER9
Memory slots	16
Form factor	4U
Operating systems supported	AIX, IBM i, Linux
Processor cores	4
Processor threads	32
Processor speed	2.8 GHz
Maximum memory	1024 GB
Storage	SAS SFF Gen3 HDD/SSD, NVMe SSD
