IBM Power System 9009-41A User Manual

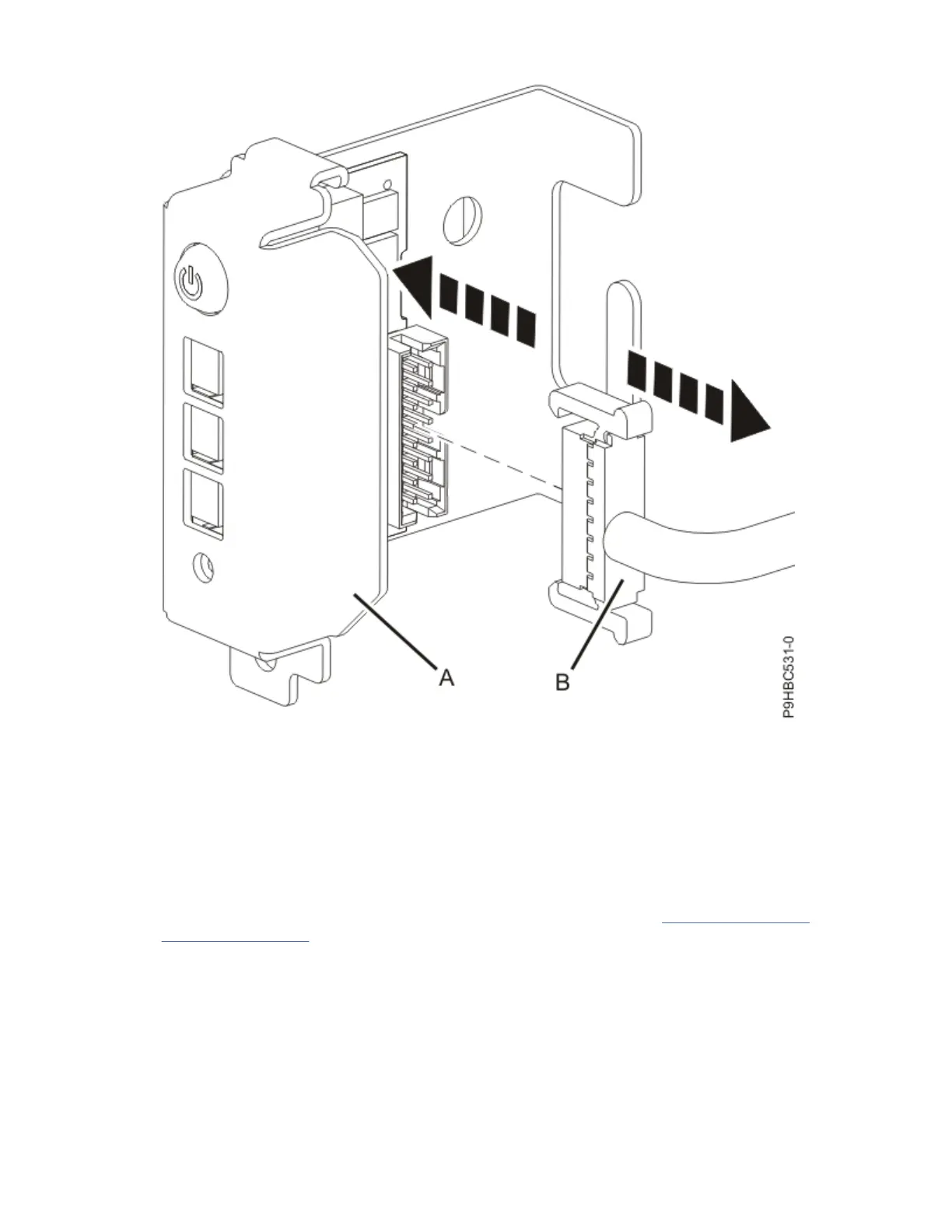

Figure 70. Disconnecting the control panel from the cable for a stand-alone system
Replacing the control panel cable in the 9009-41A, 9009-42A, or 9223-42H system
To replace a control panel cable, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Connect the control panel (A) to the control panel cable (B) as shown in Figure 71 on page 75
or
Figure 72 on page 76.
74
Power Systems: Power Systems: Control panel

IBM Power System 9009-41A Specifications

General

Processor	POWER9
Memory slots	16
Form factor	4U
Operating systems supported	AIX, IBM i, Linux
Processor cores	4
Processor threads	32
Processor speed	2.8 GHz
Maximum memory	1024 GB
Storage	SAS SFF Gen3 HDD/SSD, NVMe SSD
