IBM Power System 9009-41A User Manual

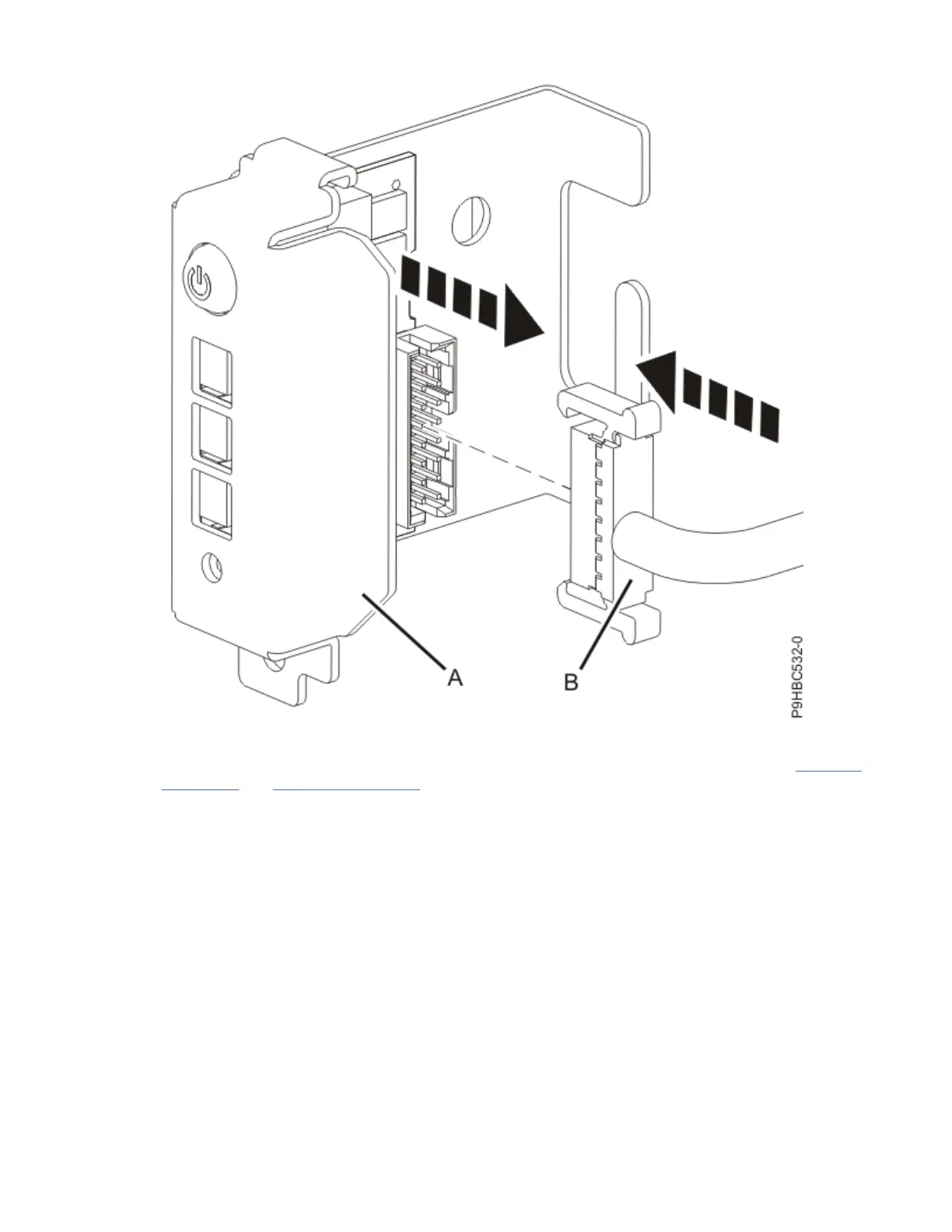

Figure 72. Connecting the control panel and cable for a stand-alone system
3. For a rack-mounted system, insert the control panel and cable into the system as shown in Figure 73
on page 77 and Figure 74 on page 78.
If needed, label and remove two or three leftmost drives, to allow you to route the cable along the
side of the chassis. Pass the cable through the channel along the side of the chassis, being careful not
to catch the cable on any components as you insert it.
76
Power Systems: Power Systems: Control panel

IBM Power System 9009-41A Specifications

General

Processor	POWER9
Memory slots	16
Form factor	4U
Operating systems supported	AIX, IBM i, Linux
Processor cores	4
Processor threads	32
Processor speed	2.8 GHz
Maximum memory	1024 GB
Storage	SAS SFF Gen3 HDD/SSD, NVMe SSD
