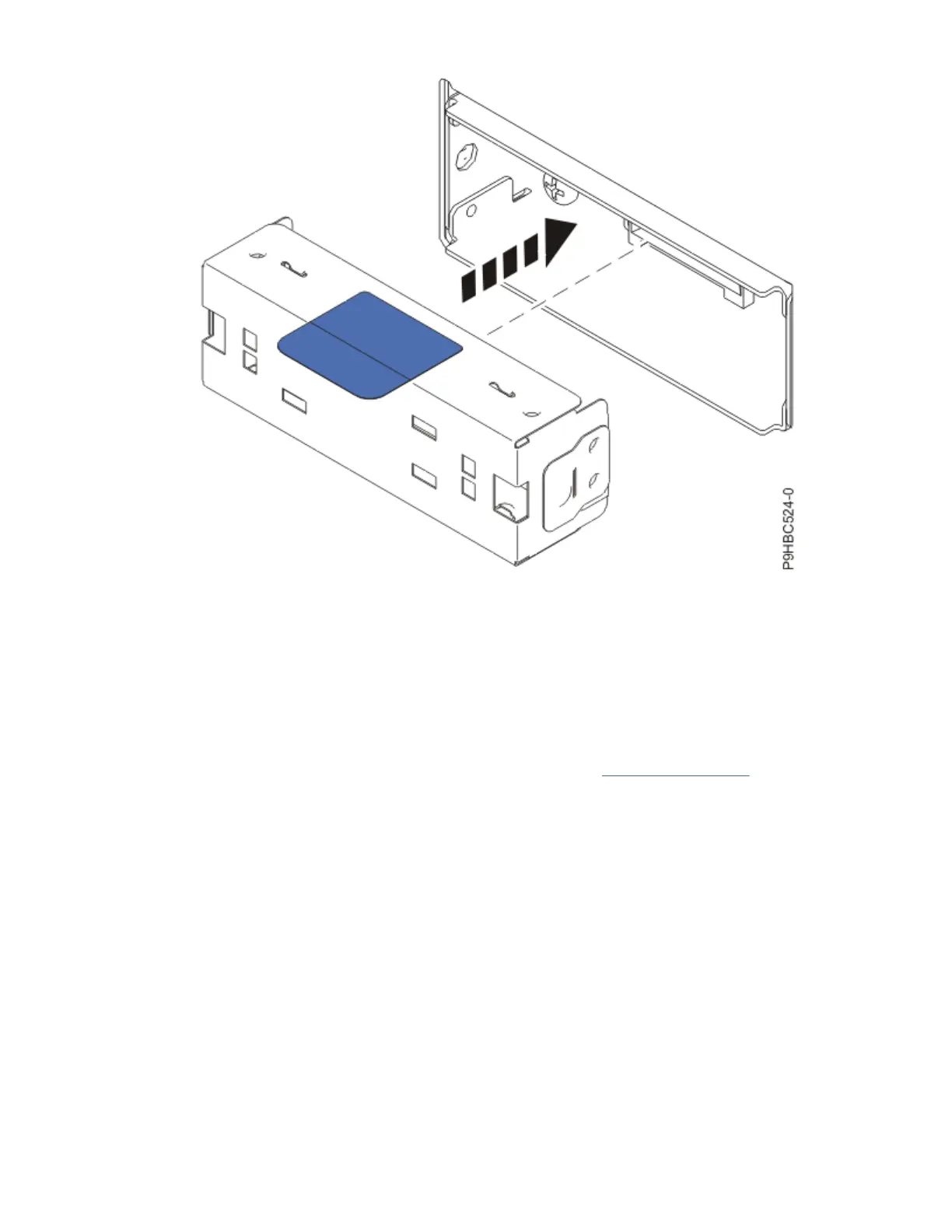

Figure 42. Inserting a display ller

Replacing the control panel display in the 9009-41A, 9009-42A, or 9223-42H system

To replace a control panel display, complete the steps in this procedure.

Procedure

1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged

into a ground jack or connected to an unpainted metal surface. If not, do so now.

2. If needed, remove the display ller (A) using tab (B) as shown in Figure 43 on page 45.

If a plastic cover is in the front cover, remove the plastic cover to view the display.

Power Systems: Power Systems: Control panel
