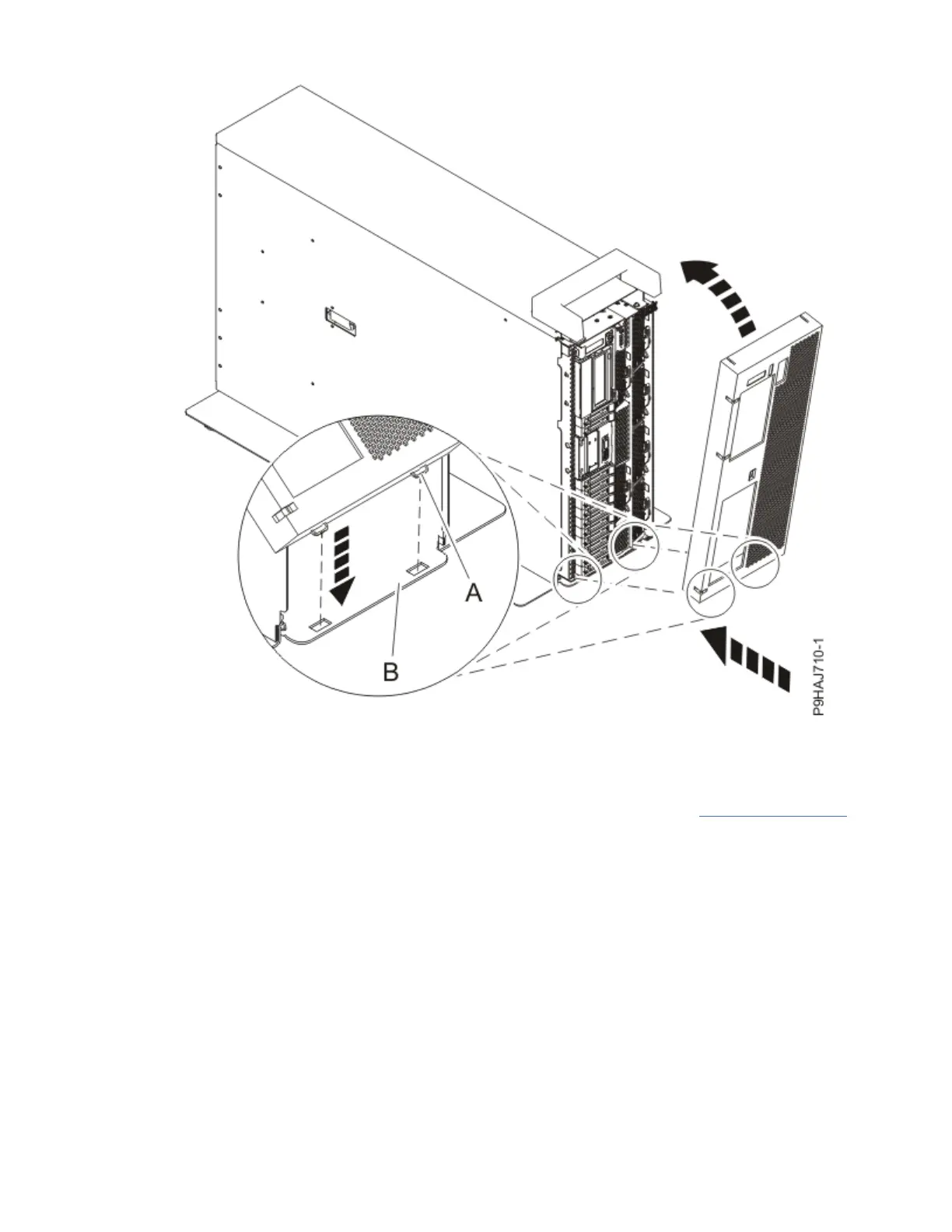

Figure 89. Installing the front cover and door

c) Rotate the cover up and towards the system until the release latch is seated into its respective

slot.

d) Twist the cover latch to the right (clockwise) to lock the cover as shown in Figure 90 on page 94.

Vertical is locked; horizontal is unlocked.

Control panel cables for the 9009-41A, 9009-42A, or 9223-42H

Questions and Answers:

Need help?

Do you have a question about the IBM Power System 9009-41A and is the answer not in the manual?

IBM Power System 9009-41A Specifications

General

Processor	POWER9
Memory slots	16
Form factor	4U
Operating systems supported	AIX, IBM i, Linux
Processor cores	4
Processor threads	32
Processor speed	2.8 GHz
Maximum memory	1024 GB
Storage	SAS SFF Gen3 HDD/SSD, NVMe SSD
